SECTION 1: PREPARING THE VEHICLE TUB – REMOVAL OF SPORTS BARS & BED LINERS
AND SEALING THE TUB.
1.1) Remove any sports bars fitted on the front bed rail of the vehicle’s tub.
1.2) The sports bar will need to be removed if fitted and returned to the customer if requested to do so.
1.3) Remove and retain all bed liner components and tie down hook hardware.
SEALING THE VEHICLE’S TUB
NOTE:

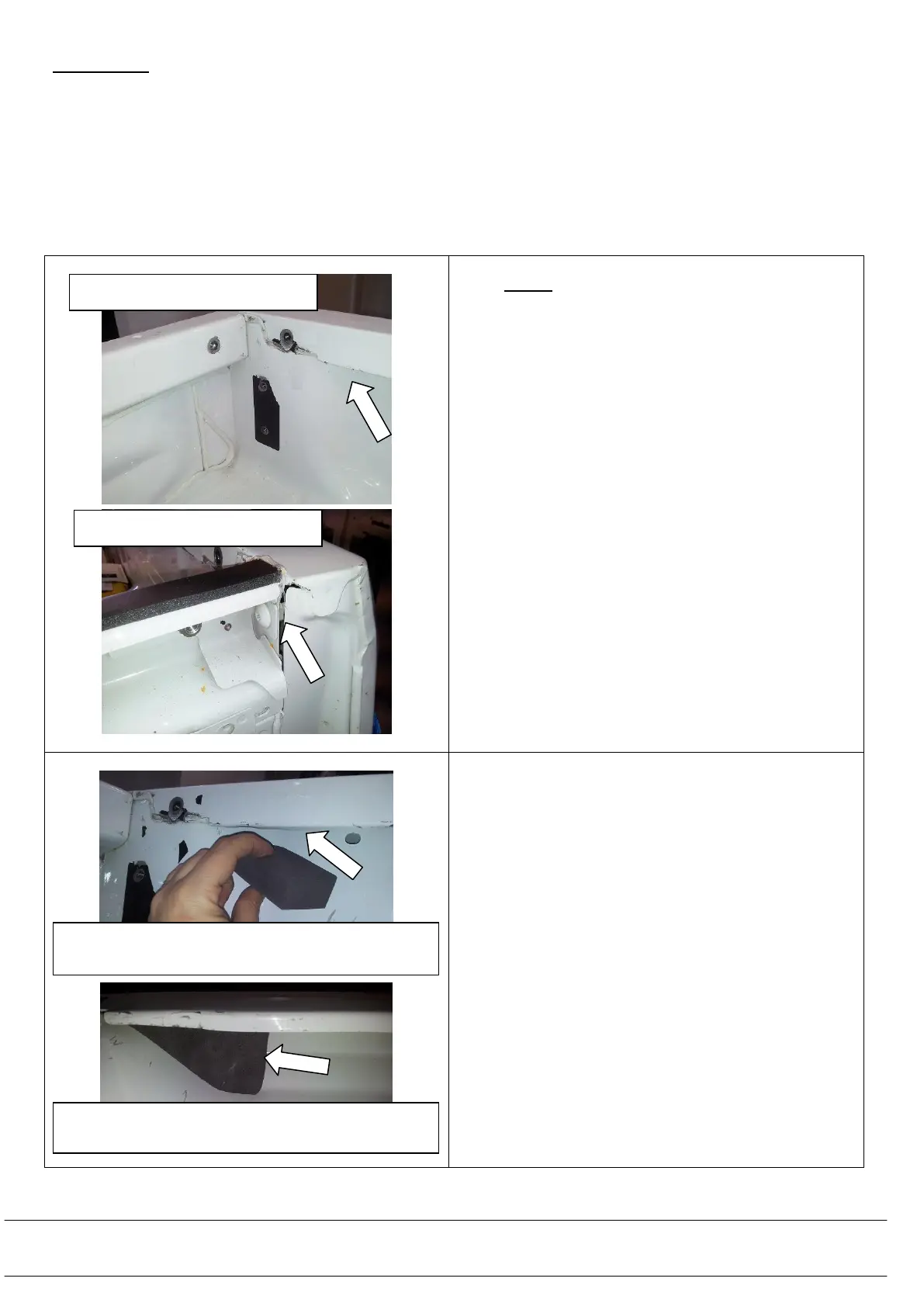

The front corners of the tub where the arrows are
shown are not sealed ex-factory on both sides. It is
necessary to seal these areas before the canopy is
fitted.
(Tub shown removed from vehicle for clarity)
1.4) Inside of the vehicle’s tub side rail at front corner,
locate the hole in the side rail in the tub and push
one of the foam blocks (668PD010) into it in the
following orientation. The foam block is
50x30x75mm. With the block sitting flat on its
50x75mm face, push it up under the side rail of the
tub and push it forward. Locate the rear edge of the
foam block so it snaps in place.
Repeat this on the opposite side.
Inside front corner of tub
Outside front corner of tub
Push foam block up and forwards into the hole in
front corner under side tub rail.
Align rear edge of the foam block so it snaps into the
edge of the sheet metal up under the front tub
corner.
