Cover these holes and trim tape here at join
between front rail and side rail of vehicle’s tub.
Tightly butt the tape to this join.

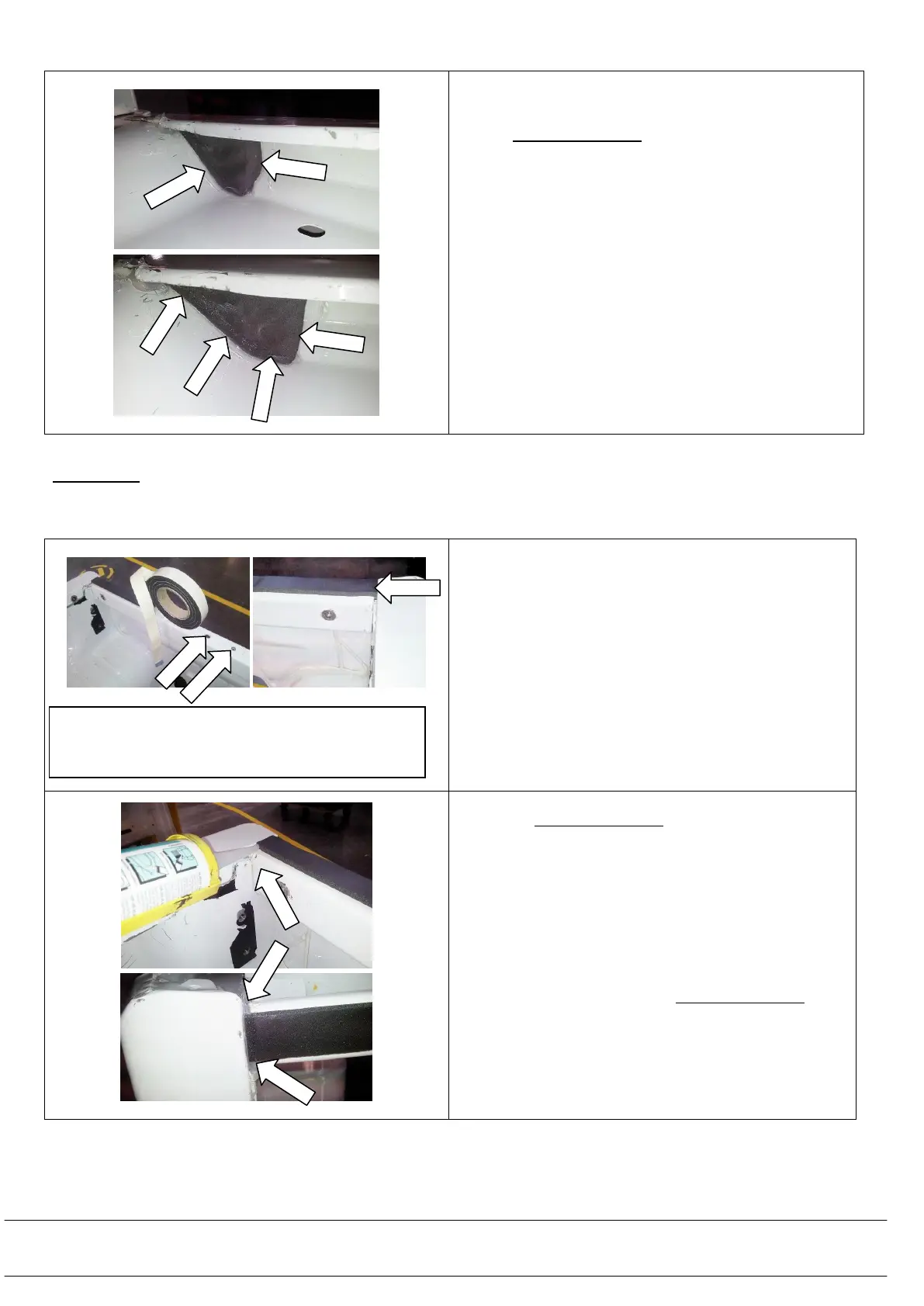

1.5) Spray water using a spray bottle around the foam
block to aid in applying silicon cleanly. Then apply
neutral cure silicon around all edges of the foam
block where it contacts the tub sheet metal and
clean up.
Repeat this on the opposite side
SECTION 2: FITTING THE CANOPY TUB MOUNTING BRACKET SYSTEM
IF BED LINERS ARE TO BE FITTED, REFER TO SECTION 7 PRIOR TO FITMENT
2.0) Clean the front tub rail at the back of the vehicle’s
cabin with Isopropyl Alcohol and a lint free rag.
Starting from the inside edge of the side tub rails,
apply soft foam tape (668PB014) seal along the top
face of the front of the vehicle’s tub, so that it
covers the upwards facing holes. Trim tape level to
butt up to the inside of the side tub rail on the
opposite side.
2.1) Apply neutral cure silicon to the ends of the foam
tape on both sides of the tub, and spatula this down
level to the top of the foam tape.
It is important that the area between the tape and
the sheet metal is also well sealed on the vertical
end faces of the foam tape about the width of the
tape, in front and behind the tape.
Spray water using a spray bottle, down the front
internal corner junction of the tub, to aid in applying
silicon cleanly. Then apply neutral cure silicon
around all sheet metal panel gaps and clean up.
Repeat this on the opposite side.
See next page.
