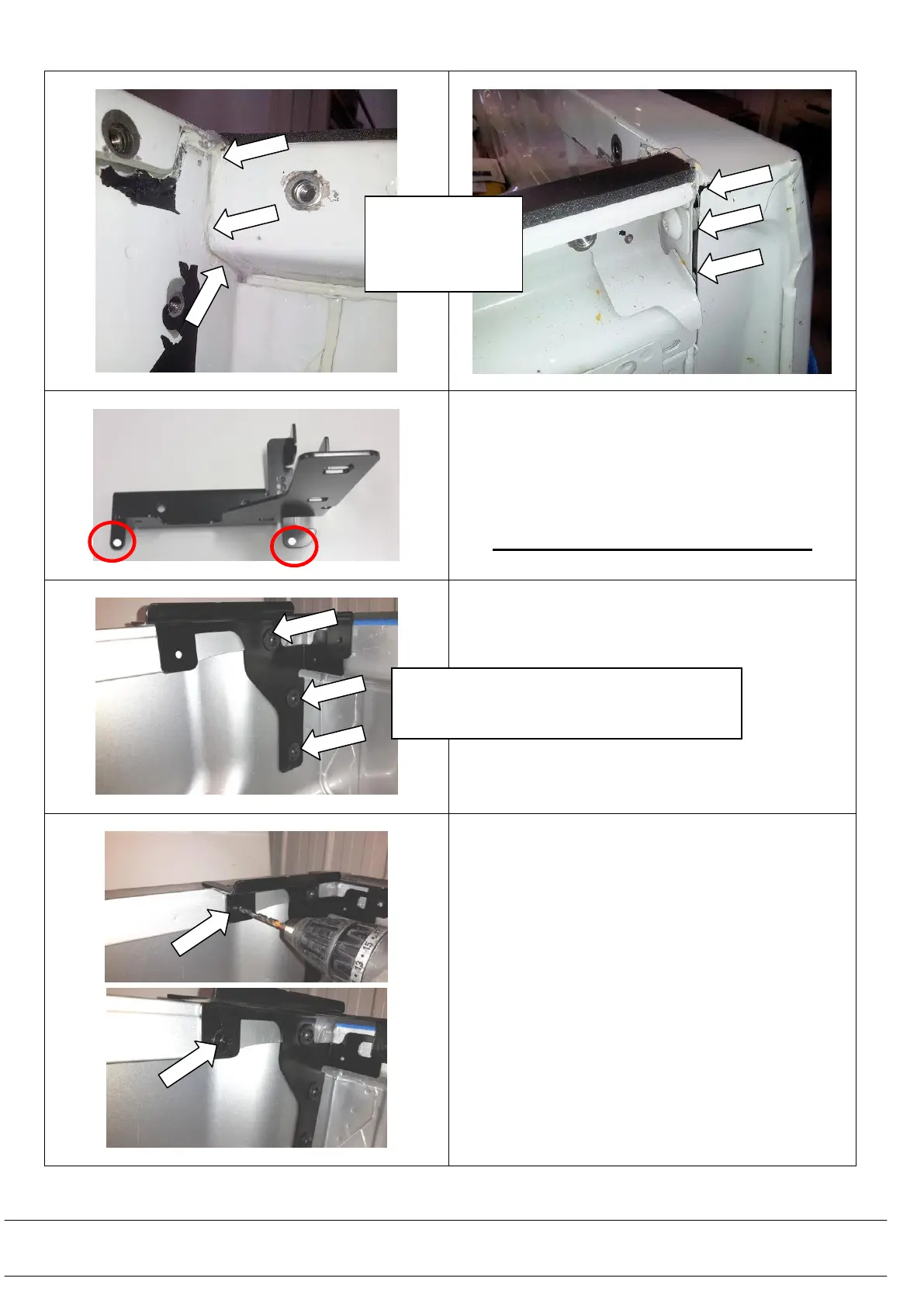

2.2) To a pair of front corner tub mounting brackets
(3759968R&L), apply self-adhesive bumpons
(665076) to the two tags on each bracket. These
legs are to sit with the bumpons face down touching
the top edge of the vehicle’s tub once the bracket is
fitted
IF FITTING BED LINER GO TO SECTION 6.0
2.3) Place in the LH front corner of the tub the front tub
mounting bracket (3759968L) fit screws to the three
holes on the side of the tub and Tighten to 22Nm
Repeat on the opposite side using the opposite
hand tub mounting bracket
2.4) Using a 6.5mm drill fitted with a 12mm drill stop to
prevent drilling into the outside tub sheet metal
skin, drill into the rear hole in the front corner
bracket and through the flange on the tub sheet
metal.
Apply rust inhibitor around the hole.
2.5) Insert into the hole an M6 x 20mm (6151213) Hex
Screw with M6 x 25mm Flat Washer (4584310)
under the head and M6 Flange Nut (6151773) on
the back, inside the tub lip flange.
Tighten to 9Nm
Repeat on the opposite side using the opposite
hand front tub mounting bracket
Use from the kit M8 x 25 Torx head screw
(6151625) (use T40 bit) and M8 x 25.4mm flat
washers (4581303) in these 3 places.
Apply silicon to
tub joins in front
corners inside
and outside.
To Next Page
