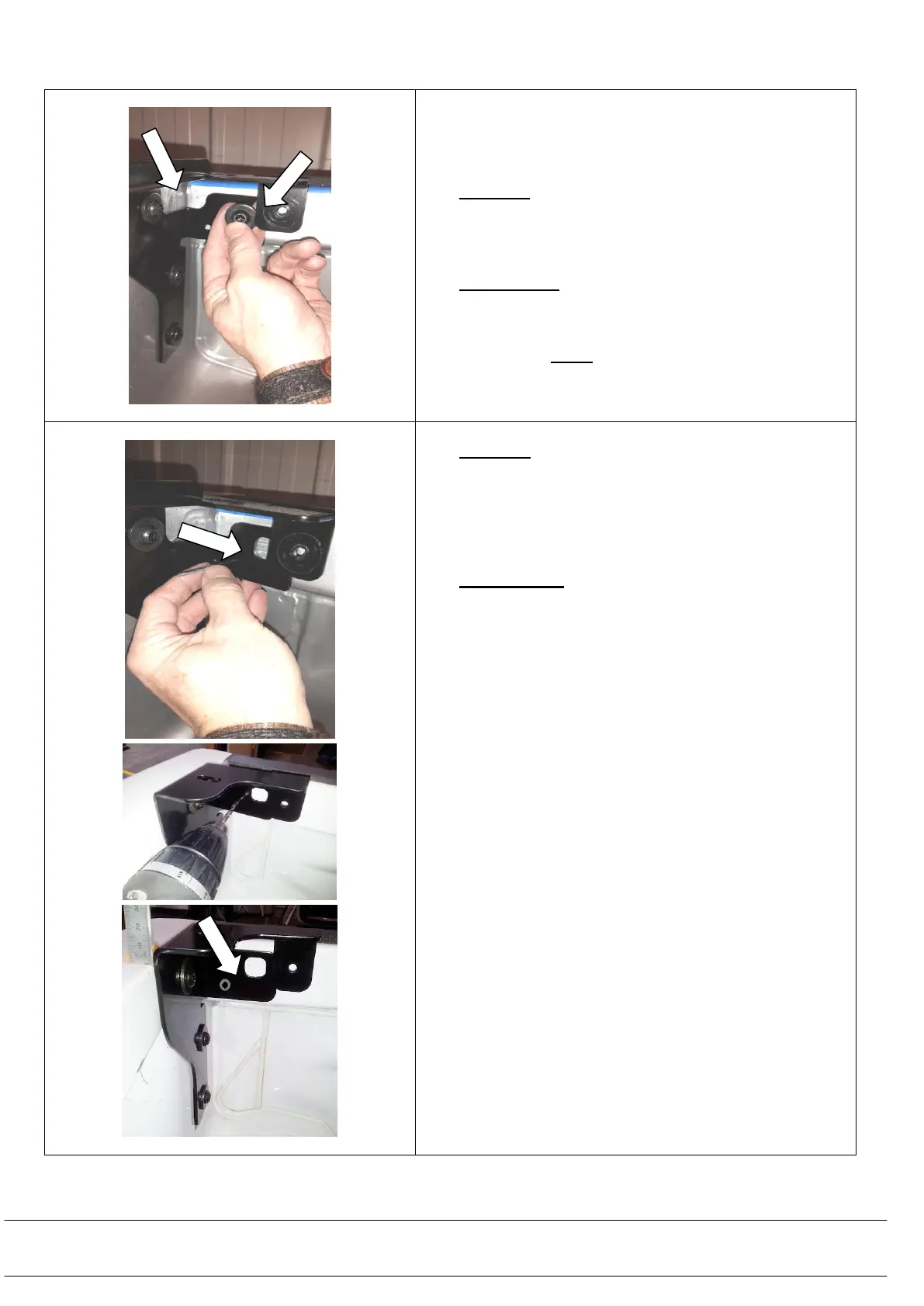

2.6) There are 2 alternatives to fixing the front tags of the
front tub mounting brackets to the front wall of the
tub:
Option A:
If a sports bar has been fitted, existing nutserts will
be mounted in the front wall of the tub.
For Option A:
Fit M8 x 25 Torx head screws (6151625) (use T40 bit)
and M8 x 25.4mm (4581303) flat washers. Do these
screws up to 18Nm
2.7) Option B:
If no nutsert exists, the front legs of the mounting
brackets are to be riveted to the front tub wall.
For Option B: Drill a 5.2mm hole through the hole
already provided in the brackets through the front tub
sheet metal wall using a drill stop set to 10mm deep.
Apply rust inhibitor to the holes.
Fit a pop rivet (6609087) to the hole in each front tub
bracket and secure them in place.
Repeat for the opposite side
