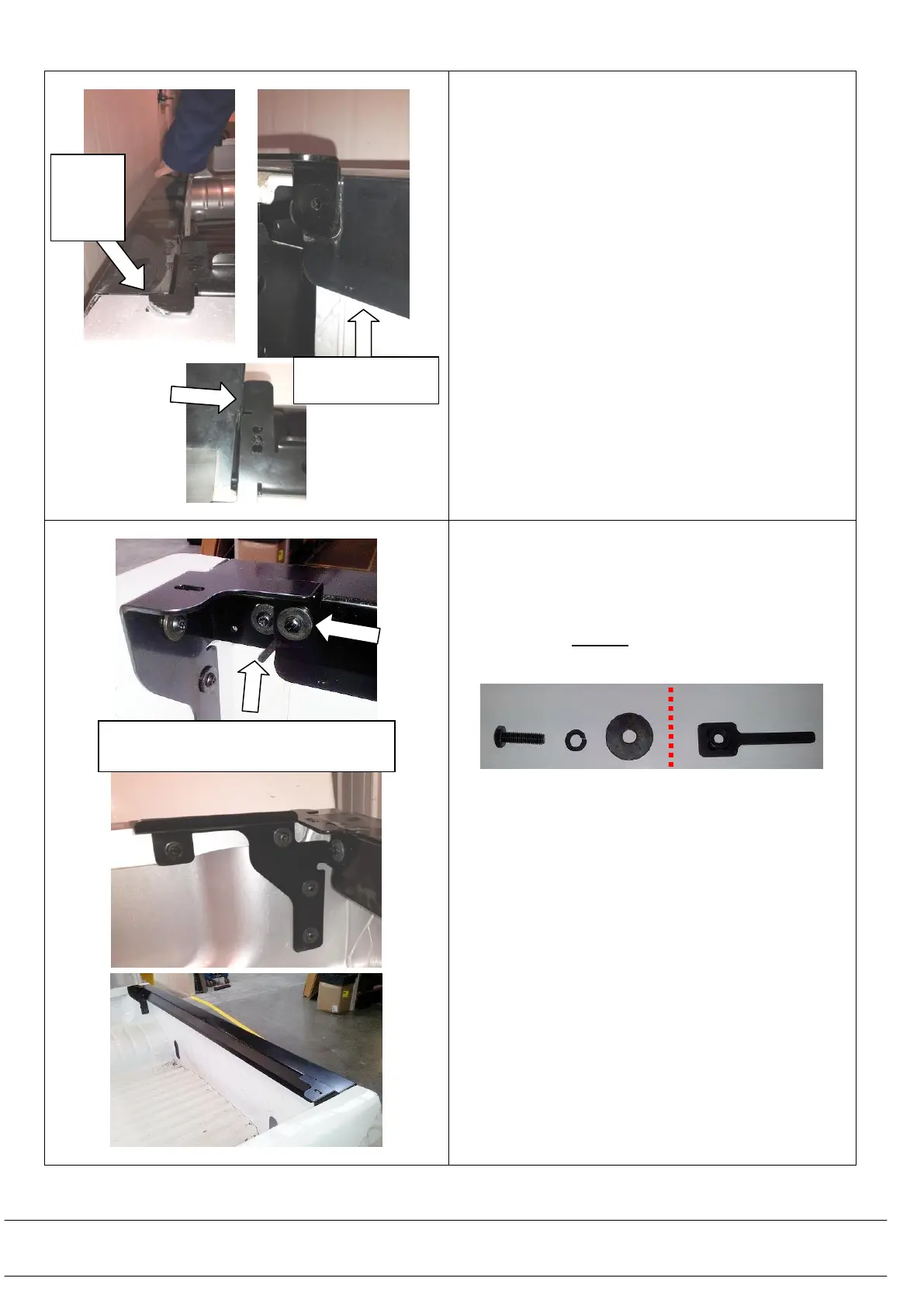

2.8) Place 668PD046 front tub mount rail over the front
of the tub, foam tape and top lip of the bed liner (if
fitted). The “C” section shape of the bracket is to
point down and the small flange lip on the bracket is
to be orientated to the inside of the tub to retain the
top edge of any bed liner (if bed liner is fitted).
Align the front tub mount rail so the ends of it have
equal gaps to the vehicle’s side tub walls and inner
face is against the mating Front Mounting Brackets.
Then align the holes in the end of rails with the 2
holes in the in the tags of the front tub mounting
brackets.
!! IMPORTANT !!
Push down on the front mount rail at the ends so
that it is level to the top face of the vehicle’s side
tub walls while doing the screws up. A clamp can
be used to hold the front rail level with the top face
of the side tub walls.
2.9) Insert into the holes in the front corner brackets on
both sides an M6x20mm hex screw (6151213) with
M6 spring washer (4581287) and M6 x 25mm flat
washer (4584310) and do the screw up into weld
nut plate (668AQ010) on the inside of the front
mount rail to 9Nm.
When doing up the weld nut plate, hide
this leg behind the front mount rail.
