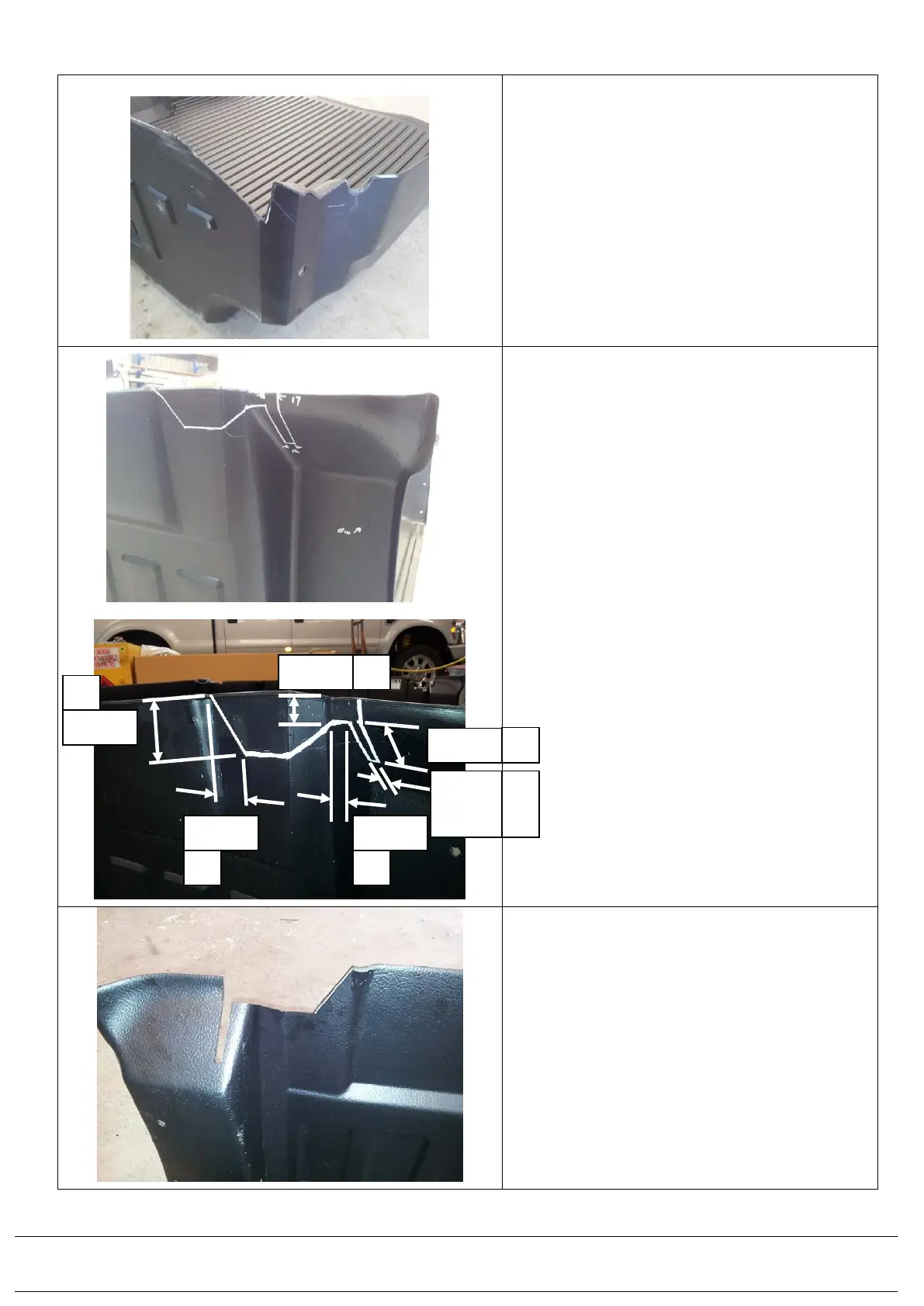

1.19) The finished cut should look like this on the
inside of the bed liner, done on both sides.
1.20) Mark out top area of the LH rear corner of the
bed liner on the side that sits against the
vehicle tub as shown in these images. Use the
number sequence in marking out.
Repeat this on the opposite corner in
mirror image.
1.21) The finished cut out on the LH rear corner
should look like this when viewed from the
inside of the bed liner.
Repeat this on the opposite corner in
mirror image.
