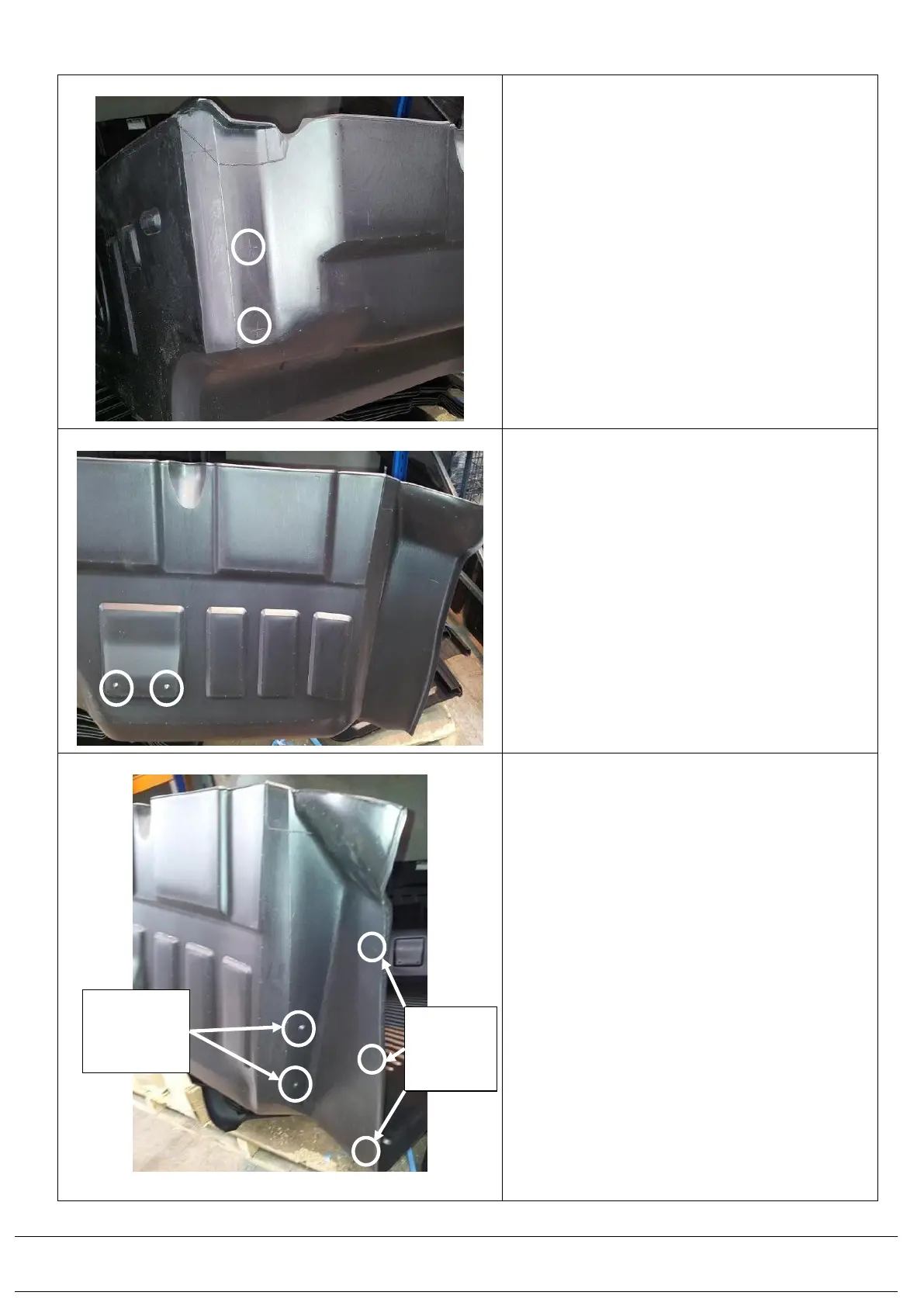

1.22) Now locate the scribe marks moulded into the
bed liner in the LH front lower corner of the
bed liner on the side wall where the tie down
hook holes are to be drilled.
1.23) Drill holes out to 16mm.
Repeat this on the opposite corner in
mirror image.
1.24) Locate the tie down hook drill points for holes
in the middle of the side lower walls of the
bed liner.
1.25) Drill holes out to 16mm.
Repeat this on the opposite side in mirror
image.
1.26) Locate the tie down hook drill points for holes
in the rear LH side lower walls of the bed
liner.
1.27) Drill holes out to 16mm for the tie down hook
and to 10mm for the rear 3 holes.
Repeat this on the opposite corner in
mirror image.
Drill tie
down hook
holes to
16mm
Drill holes
in 3
positions
to 10mm
