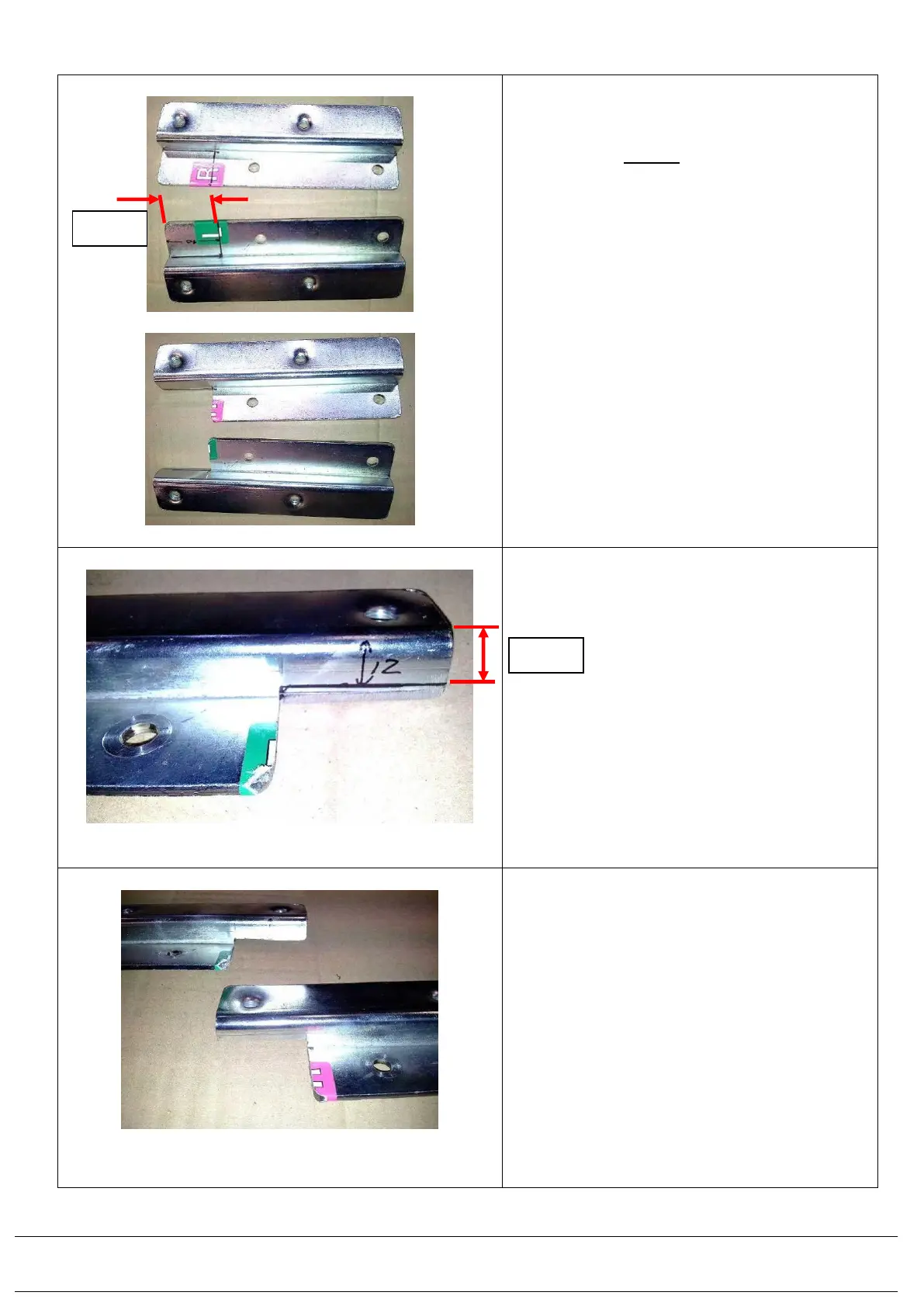

1.28) From the bed liner hardware kit, locate the 2
front mounting brackets. Mark a line 40mm in
from the edge of the brackets on the leg that
has holes without threads.
1.29) Cut the brackets with a metal saw or angle
grinder out as shown.
1.30) Mark out on the internal web of both the
brackets a line 12mm down from the top face
that has the threaded holes in it.
1.31) Cut both brackets out, the result should look
like the picture opposite.
