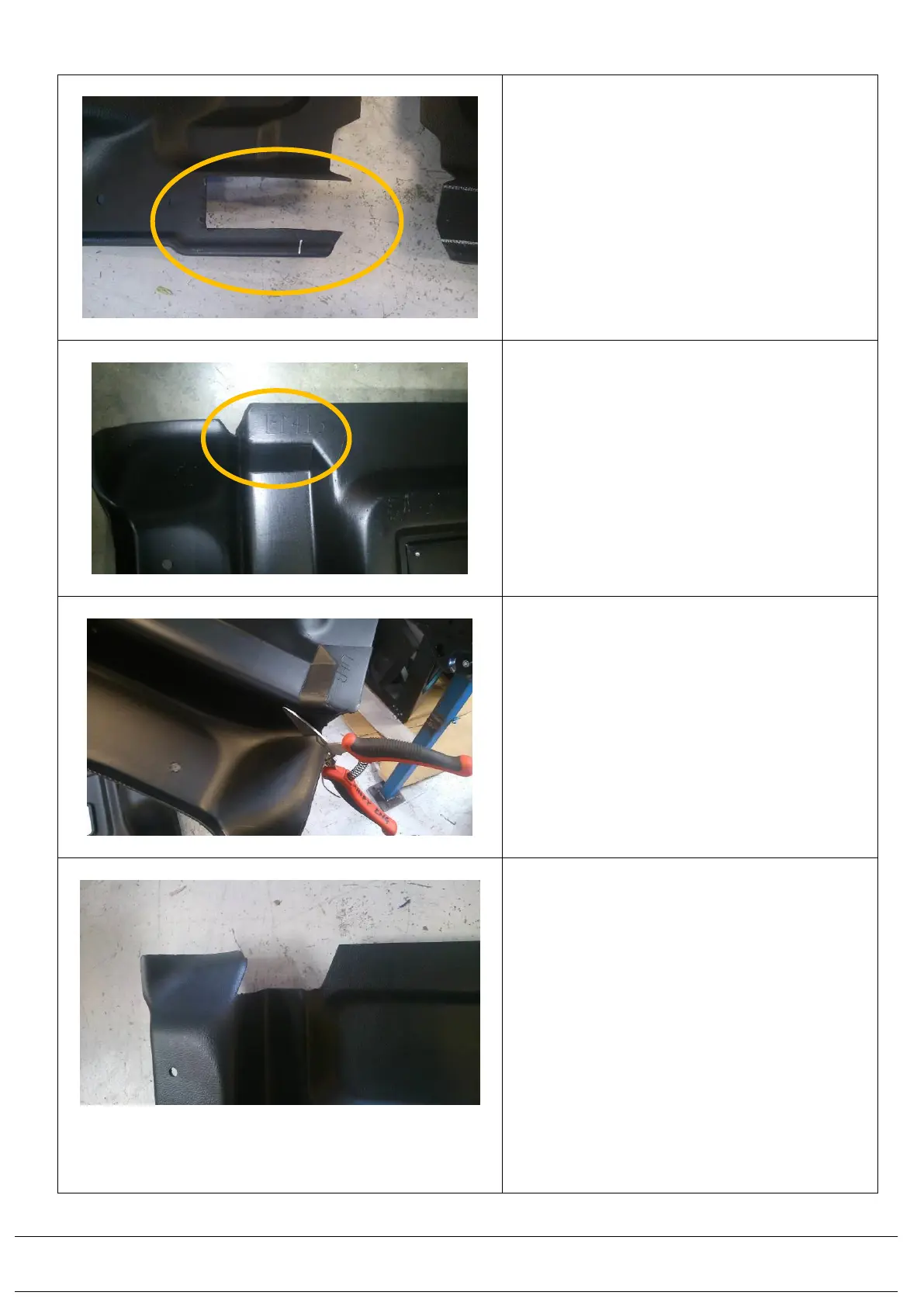

1.52) Check shape is as shown. Repeat this on the
same corner of the LH Sport Guard.
1.53) The rear upper corners of both the RH and LH
sport guard need to be cut-out.
1.54) The cut-out around this corner is marked on
the rear of the panel via the moulded in scribe
lines.
1.55) Cut this marked section out as shown. (LH
shown).
1.56) The LH panel cut out should look like this.
1.57) Repeat the same cut-out on the RH side.
