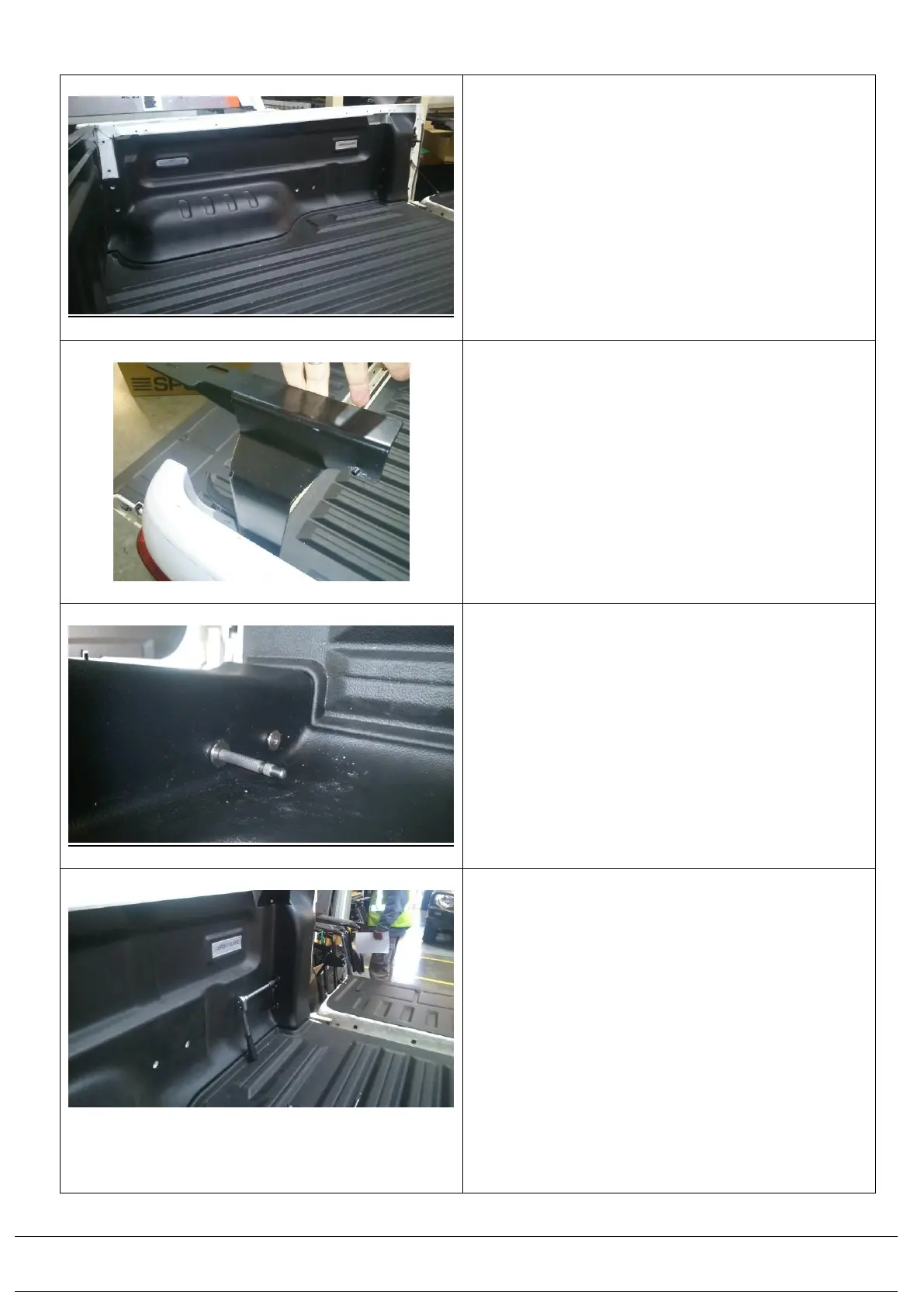

3.18) Hook both RH and LH side panels into position on
both sides and align holes to the holes in the sheet
metal tub.
3.19) Slide rear mounting bracket (668AQ001R)
between Sport Guard and tub and repeat for other
side bracket (668AQ001L).
3.20) Use a screwdriver or other straight object to align
spacer in Sport guard through holes in the canopy
rear mounting bracket bracket to weldnuts in
vehcile’s tub. Be careful not to damage the
threads.
3.21) Put the retained tie down hooks over the side
panel rear spacers and insert M8 Torx screws
back through tie down hook spacers in Sport
Guard, then through rear canopy mounting bracket
and into the tub’s weldnuts. Secure, but do not
tighten screws yet.
Repeat for other side bracket and tie down.
