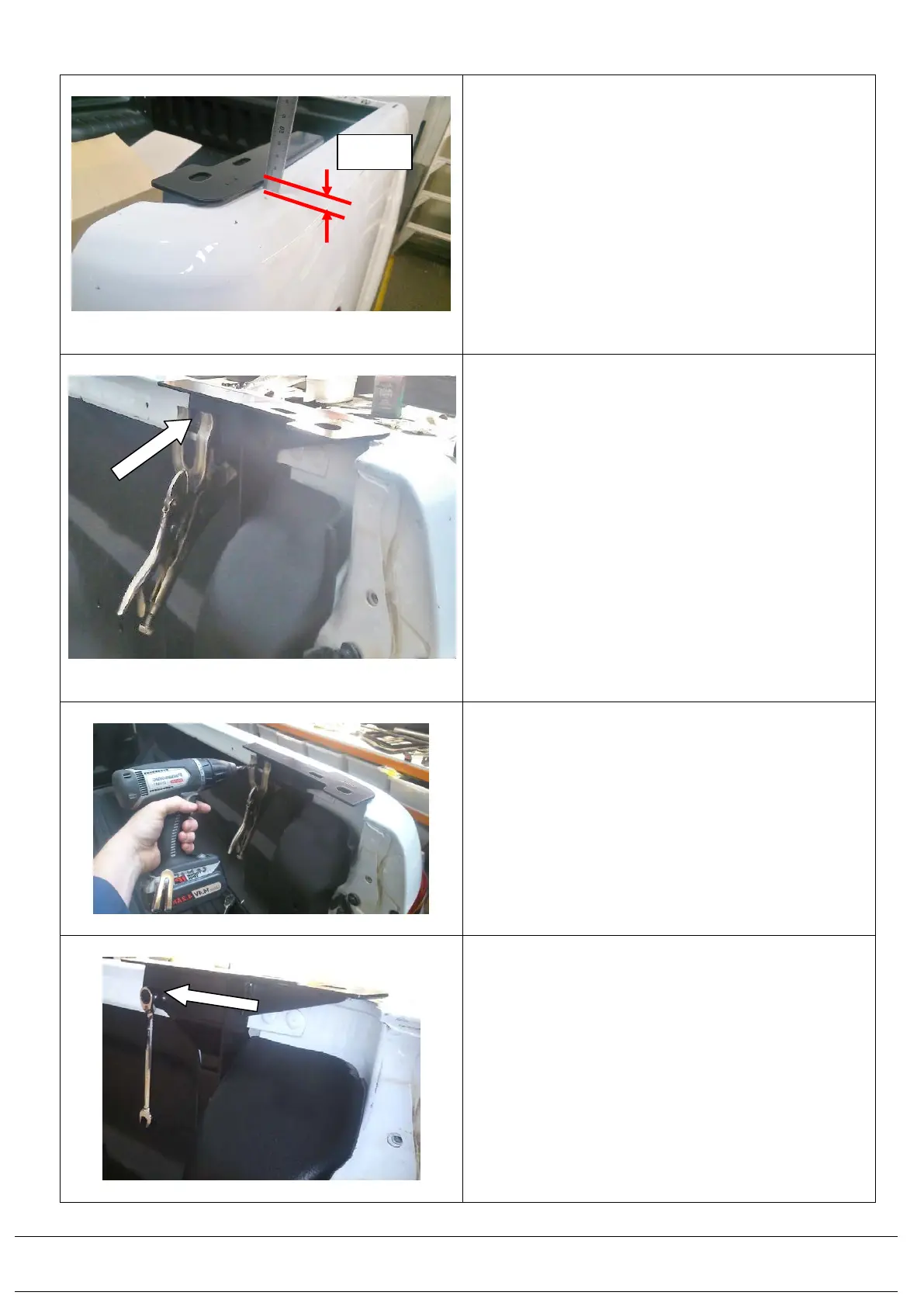

3.22) Set the rear tub mounting brackets at 10mm
above tub surface of tub to the top surface of the
brackets.
3.23) Clamp rear bracket to side of tub leaving access to
hole in bracket.
3.24) Tighten M8 Torx screws on the lower bracket
mounting points to 22Nm.
3.25) Drill a 6.5mm hole using a 10mm drill stop through
bracket and tub at the front pinning bolt hole.
Apply rust inhibitor to the hole to prevent
corrosion after drilling.
3.26) Insert M6x20mm hex screw with M6 x 20mm flat
washer with M6 flange nut on the back, inside the
tub lip flange. Do up to 9Nm.
Repeat on the opposite RH side of the tub.
