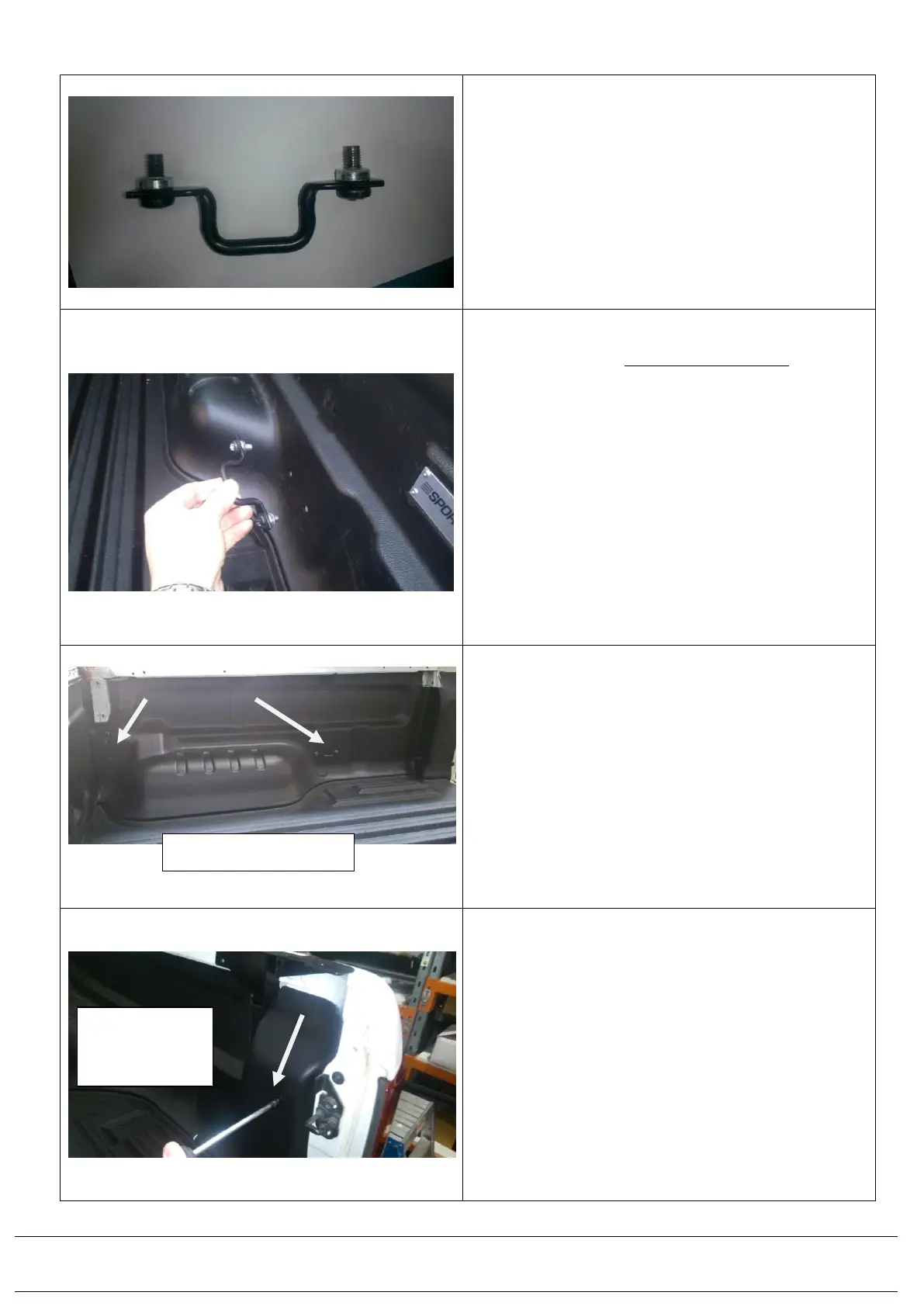

3.27) For the other 4 tie down brackets, fit the spacers
and plastic spacer retainers from the Sport Guard
hardware kit onto the M8 Torx screws.
3.28) Align all Sport Guard holes with the vehicle’s tub
weldnuts in the centre and front corners of the
Sport Guard and fit a tie down hook with the
spacers and retainers with Torx screws.
Insert the tie down hooks and do up the screws
loosely until the spacers on the hooks are within
the holes in the Sport Guard’s side plastic panels.
Do not tighten yet.
3.29) Align all Sport Guard holes with tub’s weldnuts on
other side and fit the other 2 tie down hooks onto
Sport Guard with, spacers, retainers and Torx
screws.
3.30) Fit an M6 screw and washer from Sport Guard kit
into Sport Guard at the rear pillar. Do not tighten
yet.
