Arbiter Systems 1093B User Manual

C.15 Option 34: NTP/PTP Server 141
Server Status – Synchronization problem on Option 34
NTP: ERROR
PTP: RUNNING
After the Clock and Server Have Stabilized
After the GPS clock and NTP/PTP server have stabilized, press the Status button to view server
status, link status and port addresses (IP and MAC address).
Server Status
NTP: SYNCHRONIZED
PTP: RUNNING
Link Status – indicates whether the network connection is good or bad.
NET1: GOOD LINK
NET2: BAD LINK
Port Address:
NET1:192.168.000.232
64:73:E2:XX:XX:XX
To Determine IP Address for 1093A/1084A
For clocks without a display, type “IP” at the terminal window, as explained in Section C.15.2,
and the clock should return the IP and MAC addresses for both ports in separate lines.
Option 34 LED Indications

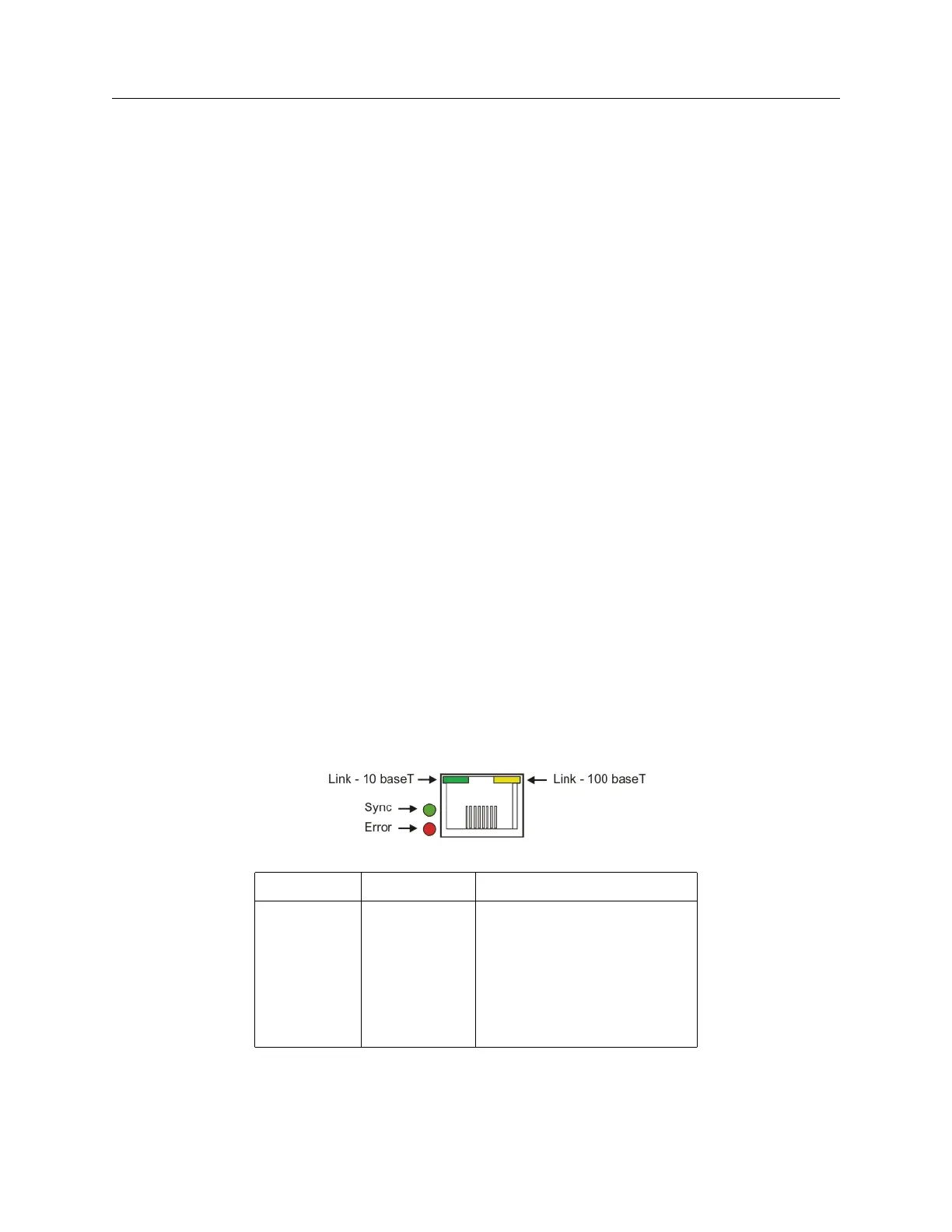

To view the Option 34 Status LEDs, see the Option 34 rear panel. The figure and Table C.10 below
describe the indications.
LED Name Color Meaning
LINK Steady Green Good Link, 10 Mb/s
Steady Yellow Good Link, 100 Mb/s
OFF Bad Link
SYNC Steady Green NTP Server Synchronized
OFF NTP Server not Synchronized
ERROR Red Startup/Error
OFF No Errors
Table C.10: Option 34 LED Indications
