3.1. Setting the label on the product
The machine must be centred on the product to be labelled (according to the needs) both horizontally and
vertically, acting on its support.
The position adjustment of the labelling machine must be performed according to the kind of application de-
vice.
An electronical label pre-ejection adjustment device is mounted on the control unit.
The pre-ejection is adjusted bycontrol unit; see the control unit section for more details.
It is possible to evaluate the effect of the adjustment only after having performed at least to dummy ejections.
The correct pre-ejection value is strictly connected to the kind of application device employed; refer to the ap-
plication device manual for more details.
3.2. Micro-switch adjustment

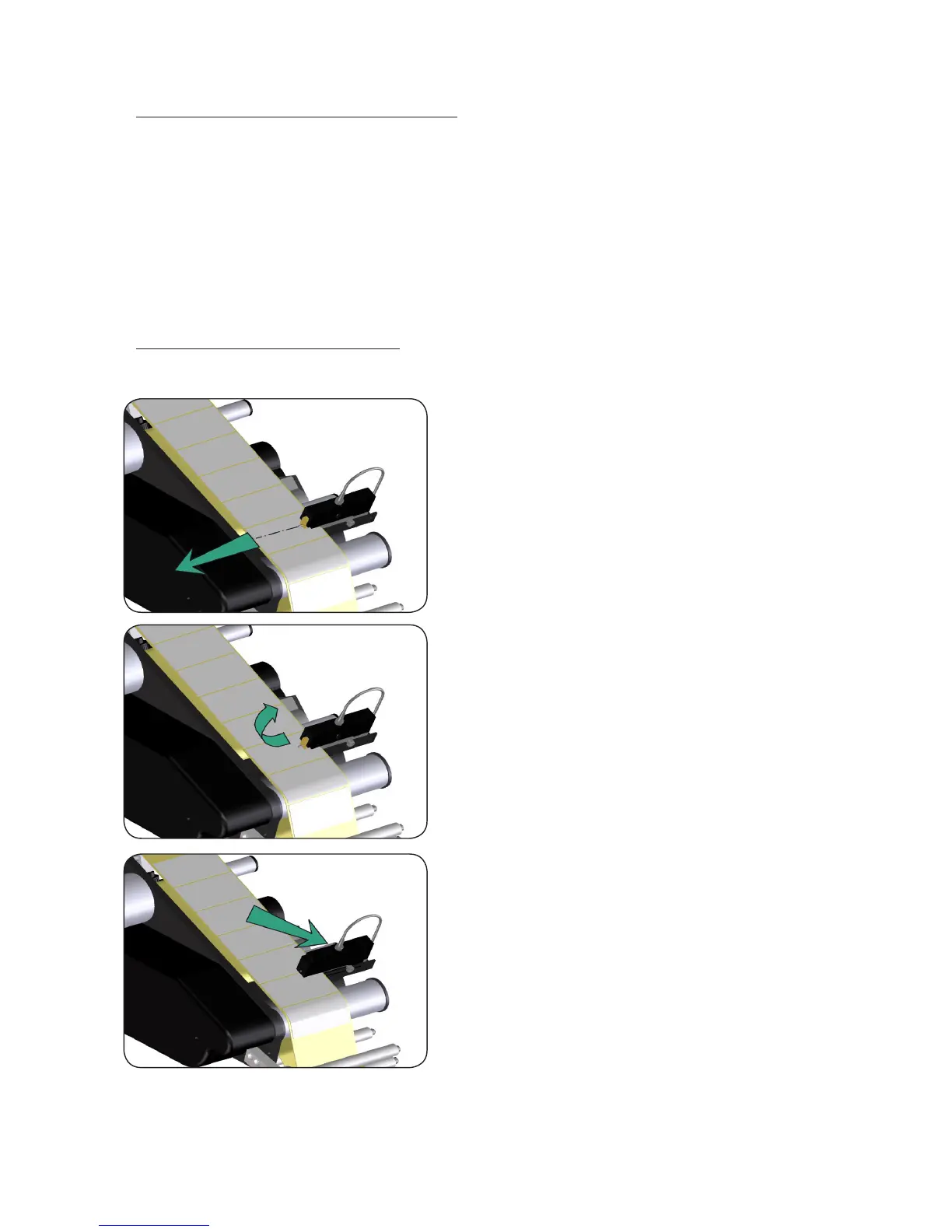

Perform the following operation to adjust the label positioning micro-switch:
• loose the thumbscrew and pull the micro-switch;
• lift the plug and insert the labels ensuring that the micro-switch
is set on a label;
• feed the labels by hand until the micro-switch is between two
labels; the led set on the micro-switch must switch on;
