3.6 Label roller replacement
The labels roller must have t dimensions as described in section 3.

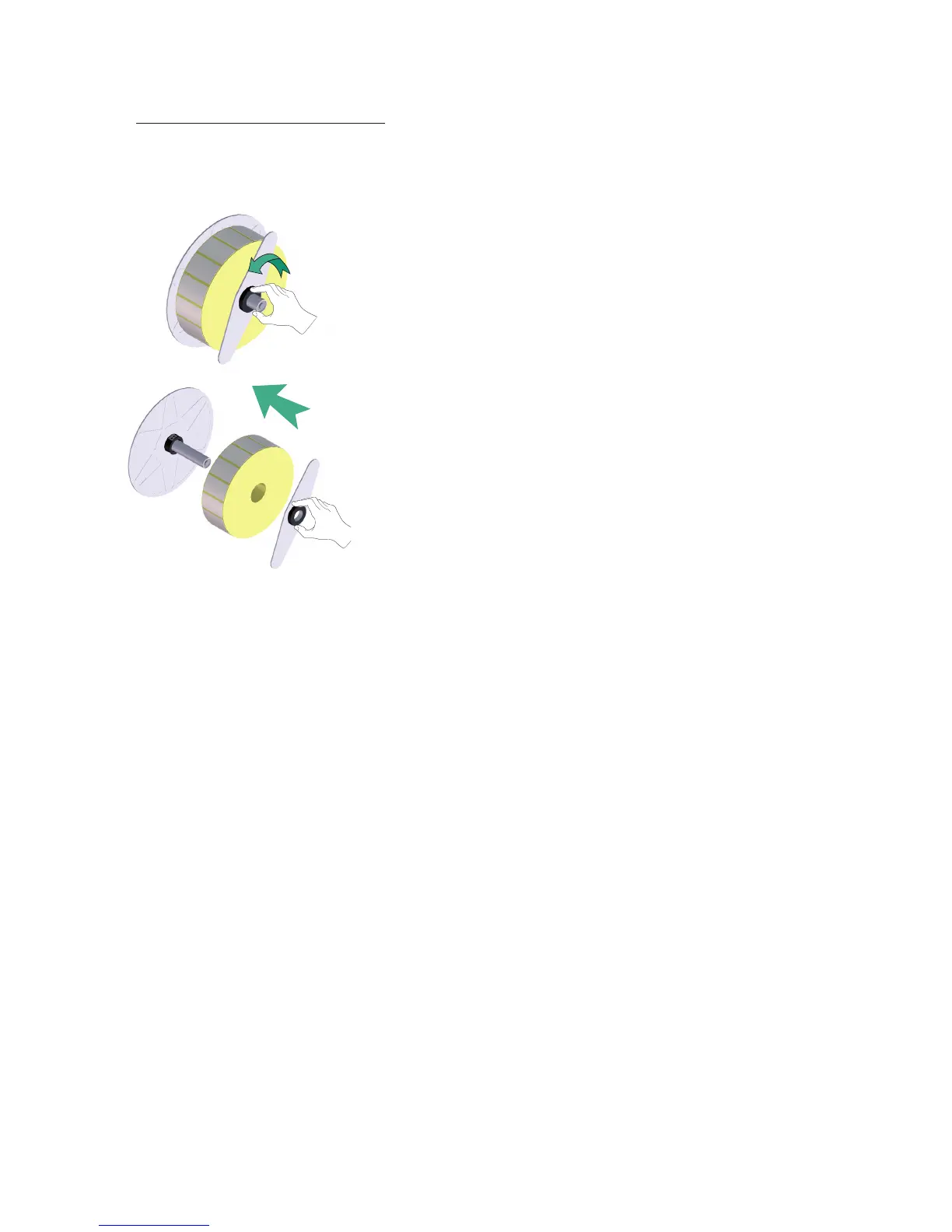

To replace the labels roller:
A. unhook the pulling roller;
B. loose the block gear;
C. if it is not nished yet, break the label support silicone band
at any point;
D. remove the paper left on the paper roller;;
E. remove the old roller;
F. set the new roller; if the inner diameter of the roller is 45,75
mm no further adapters are necessary, should it be 76.2 mm it is ne-
cessary to use the t adapter;
G. screw the blocking gear;
H. reassemble the end-of-coil sensor rod in the reading position
(see further pages for more details)
