Arcam A49 User Manual

E-9E-8
English

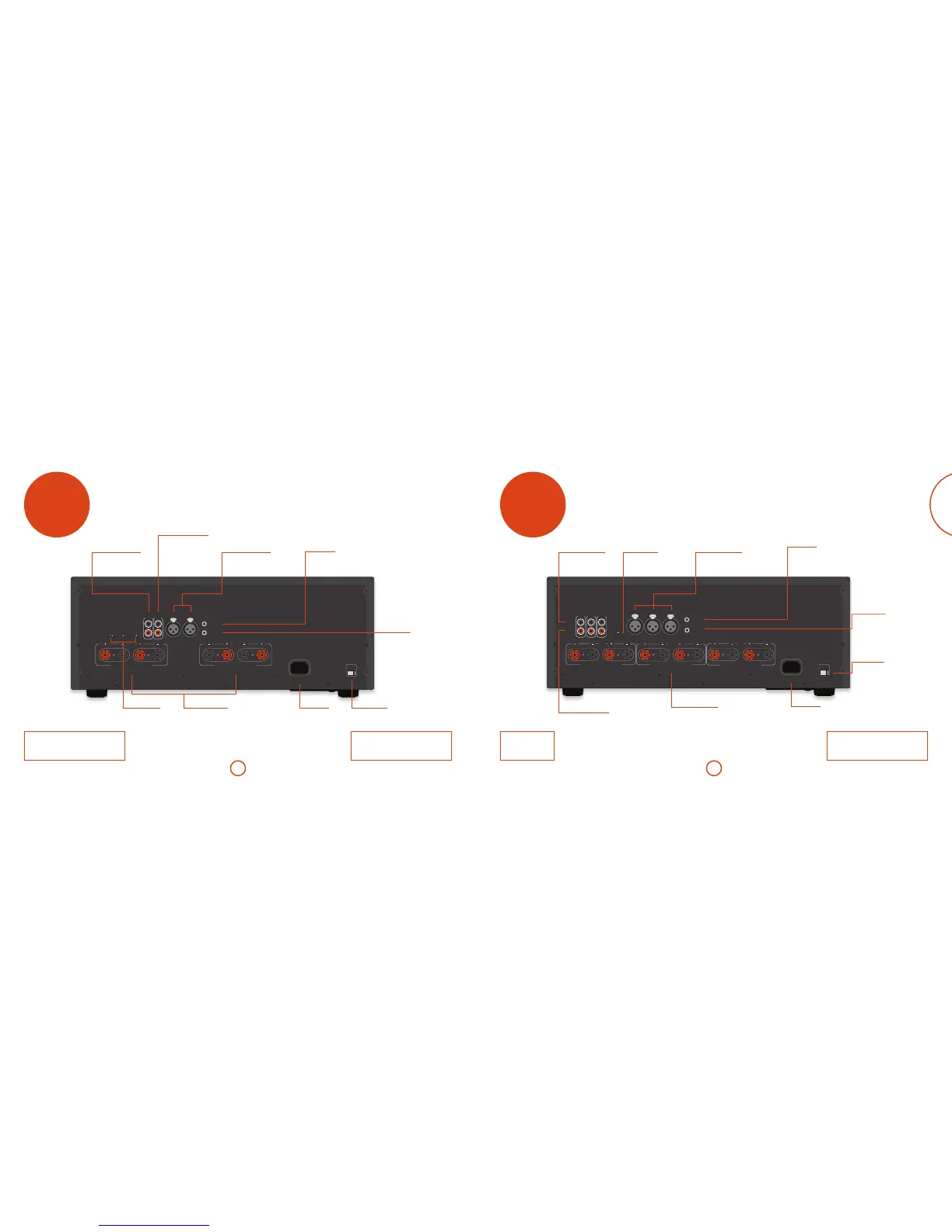

P49
connections
Note
Please read the ‘Placing the unit’, ‘Power’ and
‘Interconnect cables’ sections on page5 before
connecting up your P49 power amplier!
ST/BRIDGE/DM
MODE
XLR/RCA
INPUT
25dB/31dB
GAIN
L
R
PRE
IN
PRE
OUT
R
4–16 OHMS. CLASS 2 WIRING
SPEAKER 1 SPEAKER 2
L
4–16 OHMS. CLASS 2 WIRING
SPEAKER 2 SPEAKER 1
PRE IN R PRE IN L
110-120V/220-240V
~ 50-60 Hz
350W MAX
POWER INLET
SUPPLY
VOLTAGE
SWITCH POSITIONS
115 = 110 - 120V~
230 = 220 - 240V~
TRIGGER IN
TRIGGER OUT
Voltage select
Ensure that the voltage selected
matches your local power supply.
Power inlet
Connect the correct
mains cable here.
Unbalanced
pre-amplier inputs
Use these sockets to connect
your pre amplier if it has
unbalanced phono outputs.
Trigger input
TRIGGER IN allows the P49 to be remotely
turned on and put into standby by an
external source, the C49 for example.
Speaker terminals
e P49 is equipped with two
pairs of speaker terminals. See
pages 15 - 18 for information
on connecting loudspeakers.
Input switches
ese switches allow the P49
to be congured in dierent
modes depending on the
system into which it will
be installed and the type of
speaker connection topology
that is used. See pages 16 –
18 for switch positions and
connecting loudspeakers.
Pre-amplier output
PRE OUT provides a copy of
the signal applied to the
PRE IN sockets. Please note
that this is a passive output,
no additional ltering or
amplication is applied.
Balanced XLR
pre-amplier inputs
Use these sockets to connect your
pre amplier if it has balanced XLR
outputs.
Note
Please ensure your P49 is turned o before altering
any of the input switches!
Trigger output
TRIGGER OUT allows the P49 to control the
power state of any connected equipment,
such as a P49/P349 power amplier. In
normal use there is no need to make any
connections to these outputs.
P349
connections
Note
Please read the ‘Placing the unit’, ‘Power’ and
‘Interconnect cables’ sections on page5 before
connecting up your P349 power amplier!
XLR/RCA
INPUT
PRE IN
PRE OUT
4–16 OHMS. CLASS 2 WIRING
SPEAKER 1 SPEAKER 2
4–16 OHMS. CLASS 2 WIRING
SPEAKER 2SPEAKER 1
PRE IN 1 PRE IN 3
110-120V/220-240V
~ 50-60 Hz
350W MAX
POWER INLET
TRIGGER IN
TRIGGER OUT
1 2
4–16 OHMS. CLASS 2 WIRING
SPEAKER 1 SPEAKER 2
1
CHANNEL
3
PRE IN 2
2 3
SUPPLY
VOLTAGE
SWITCH POSITIONS
115 = 110 - 120V~
230 = 220 - 240V~
Voltage select
Ensure that the voltage selected
matches your local power supply.
Power inlet
Connect the correct
mains cable here.
Unbalanced
pre-amplier inputs
Use these sockets to connect
your pre amplier if it has
unbalanced phono outputs.
Trigger input
TRIGGER IN allows the P349 to be remotely
turned on and put into standby by an
external source, the C49 for example.
Speaker terminals
e P349 is equipped with three pairs of
speaker terminals. See pages 15 - 18 for
information on connecting loudspeakers.
Input switches
is switch selects between
the unbalanced (RCA) and
balanced (XLR) inputs.
Pre-amplier output
PRE OUT provides a copy of
the signal applied to the
PRE IN sockets. Please note
that this is a passive output,
no additional ltering or
amplication is applied.
Balanced XLR
pre-amplier inputs
Use these sockets to connect your
pre amplier if it has balanced XLR
outputs.
Note
Please ensure your P349 is
turned o before altering
any of the input switches!
Trigger output
TRIGGER OUT allows the P349 to control
the power state of any connected
equipment, such as a P49/P349 power
amplier. In normal use there is no need
to make any connections to these outputs.

Arcam A49 Specifications

General

Amplifier class	G
Frequency range	20 - 20000 Hz
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.2 %
RMS power output per channel (4 Ohm)	400 W
RMS power output per channel (8 Ohm)	200 W
Bridge-mode power output per channel (4 Ohm)	1100 W
Speakers connectivity type	-
Product color	Black
Connectivity technology	Wired
Power consumption (standby)	0.5 W
Package weight	21400 g

Weight and Dimensions

Depth	425 mm
Width	433 mm
Height	171 mm
Weight	19700 g
