Inspecting/Measuring Clutch Driven
Plate Warpage

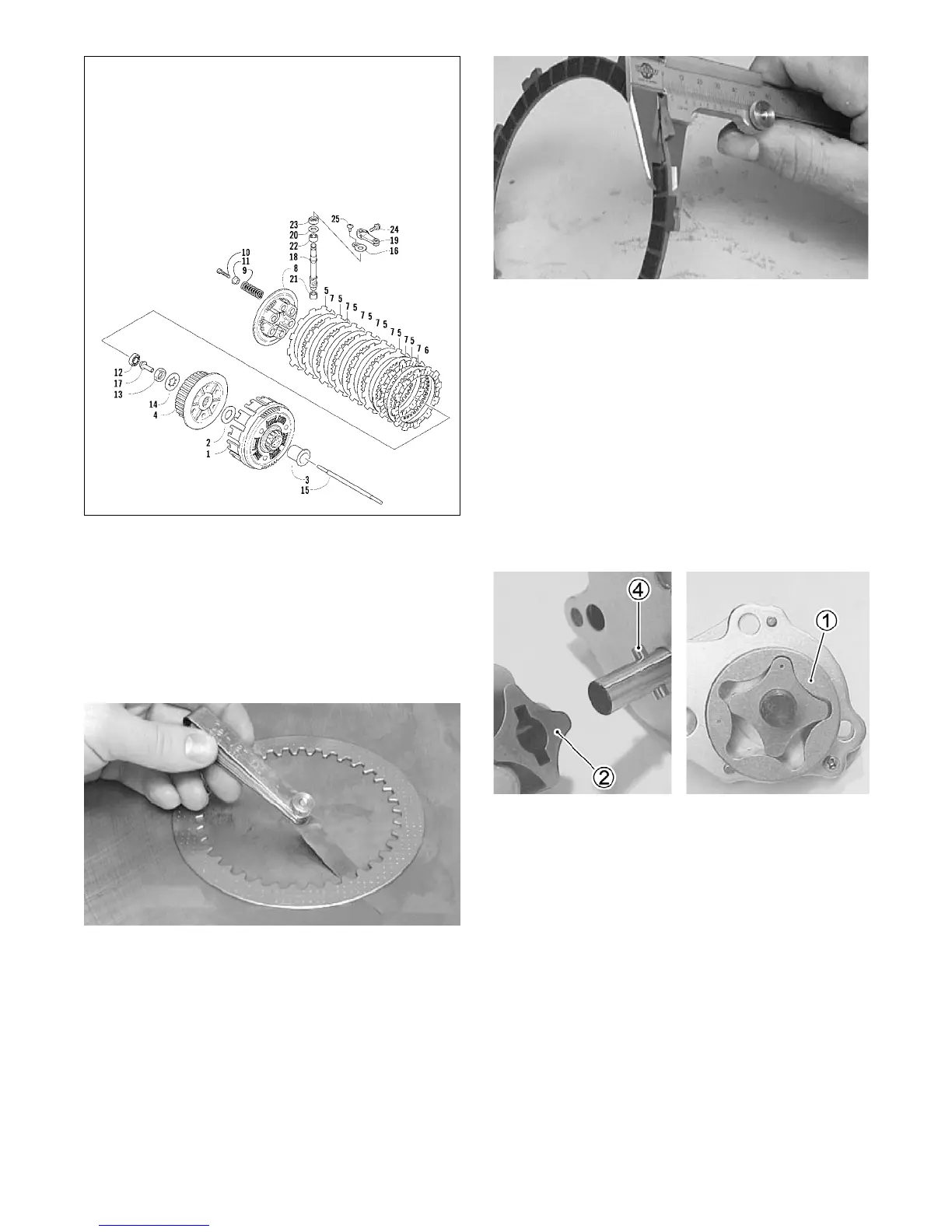

1. Inspect each driven plate for warpage and burn
marks.
2. In turn place each driven plate on the surface plate;
then using a feeler gauge, measure warpage in sev-
eral locations.
CC245D
3. Maximum driven plate warpage must not exceed
specifications.
Measuring Clutch Drive Plate (Fiber)
Thickness
1. Using a calipers, in turn measure the thickness of
each drive plate in several locations.
CC243D
2. Drive plate thickness must be within minimum spec-
ifications.
3. If the fiber plate tabs are damaged, the plate must be
replaced.
4. Inspect the clutch sleeve hub for grooves or notches.
If grooves or notches are present, replace the hub.
OIL PUMP (Inspecting/Servicing)
1. Remove the outer rotor (1), inner rotor (2), and the
pin (4); then inspect the outer and inner rotors for
nicks, scratches, or other damage. Replace any dam-
aged parts.
SP211A
NOTE: Do not attempt to disassemble the oil
pump housing assembly. It is serviceable only as a
complete unit.
2. Apply engine oil to the mating surfaces of the inner
and outer rotors; then align the groove (5) of the
inner rotor with the pin (4) of the shaft and install the
inner rotor.
3. Install the outer rotor.
KEY
1. Primary Driven Gear
2. Washer
3. Spacer
4. Sleeve Hub
5. Drive Plate #1
6. Drive Plate #2
7. Driven Plate
13. Nut
14. Lock Wash
15. Push Rod
16. Retainer
17. Release Pin
18. Camshaft
19. Release Arm
20. Washer
21. Bearing
22. Bearing
23. Seal
24. Cap Screw
25. Camshaft Stopp
To Next Page
