16
SP306

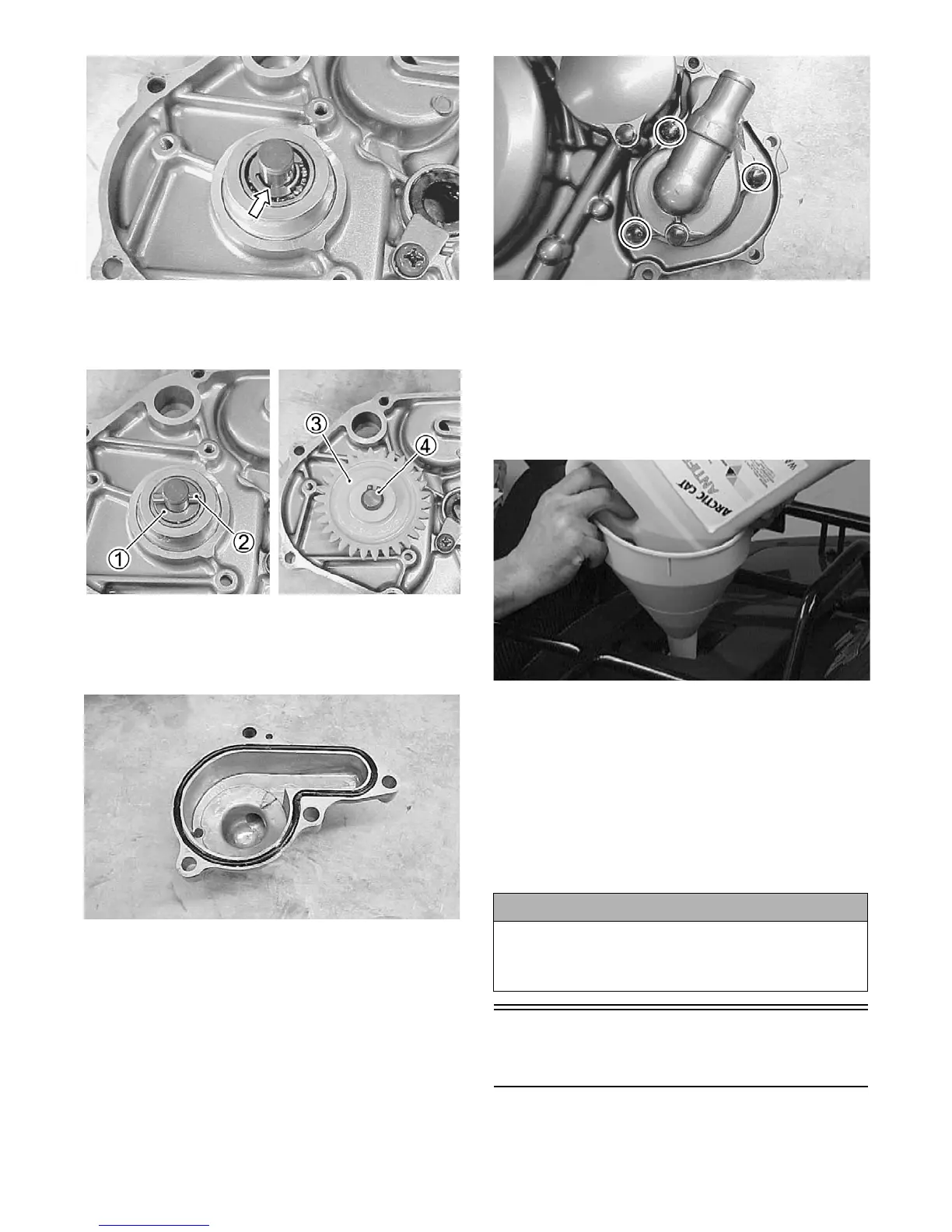

5. Install the washer (1), drive pin (2), and driven gear
(3); then install the circlip (4). Make sure the circlip
is properly seated.
SP307A
INSTALLING
1. Install a new O-ring in the water pump case; then
attach the case to the clutch cover.
SP309
SP310
2. Install the clutch cover and tighten the cap screws
securely; then install the master cylinder mounting
bolts and tighten to specifications.
3. Connect the brake switch spring and the brake pedal
spring.
4. Connect the radiator hose; then fill the cooling sys-
tem with the recommended amount of coolant.
AN604D
NOTE: While the cooling system is being filled,
air pockets may develop; therefore, run the engine
for five minutes after the initial fill, shut the engine
off, and then fill the cooling system.
5. Refill the engine oil tank; then run the engine for
several minutes and check for leaks. Recheck the
engine oil and coolant levels.
6. Check the entire cooling system for leakage.
Engine Coolant
Temperature Switch
REMOVING
1. Drain the coolant in the radiator to a point below the
upper temperature switch.
! CAUTION
After operating the ATV for the initial 5-10 minutes,
stop the engine, allow the engine to cool down,
and check the coolant level. Add coolant as
necessary.
