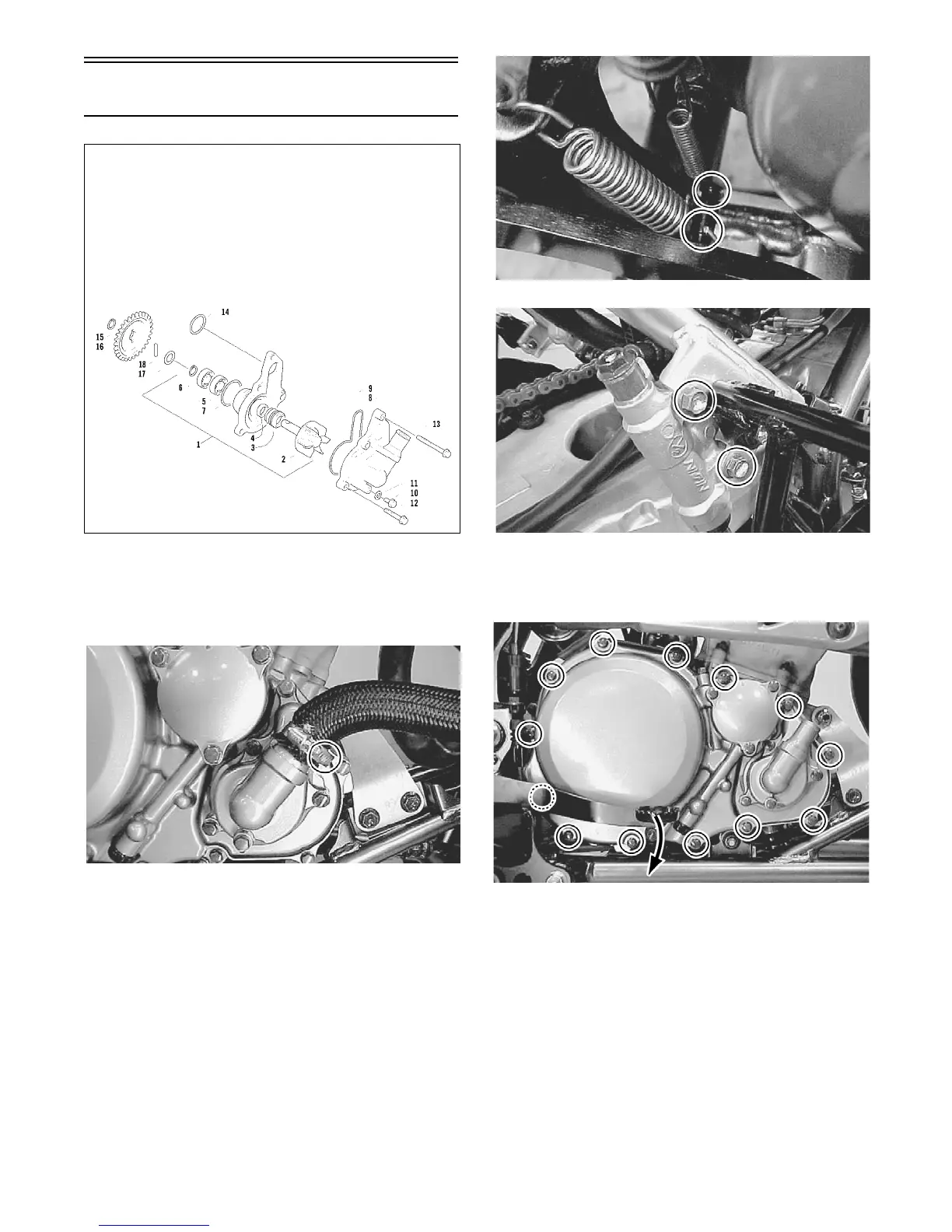

Servicing Water Pump
0739-217
REMOVING
1. Drain the engine coolant and engine oil; then discon-
nect the radiator hose.
SP295
2. Disconnect the rear brake switch spring and brake
pedal spring; then remove the master cylinder
mounting bolts.
SP296
SP297
3. Remove the cap screws securing the clutch cover;
then depress the brake pedal and remove the clutch
cover.
SP298
4. Remove the water pump case; then remove the cir-
clip (1), water pump driven gear (2), drive pin (3),
and washer (4).
KEY
1. Water Pump Housing
2. Impeller/Shaft
3. Mechanical Seal
4. Oil Seal
5. Bearing
6. E-Ring
7. O-Ring
8. Case
9. O-Ring
10. Drain Plug
11. Gasket
12. Cap Screw
13. Cap Screw
14. O-Ring
15. Circlip
16. Driven Gear
17. Washer
18. Pin
To Next Page
