Arctic Cat DVX 400 2004 - Carburetor Specifications; Carburetor Schematic

2
Carburetor
Specifications

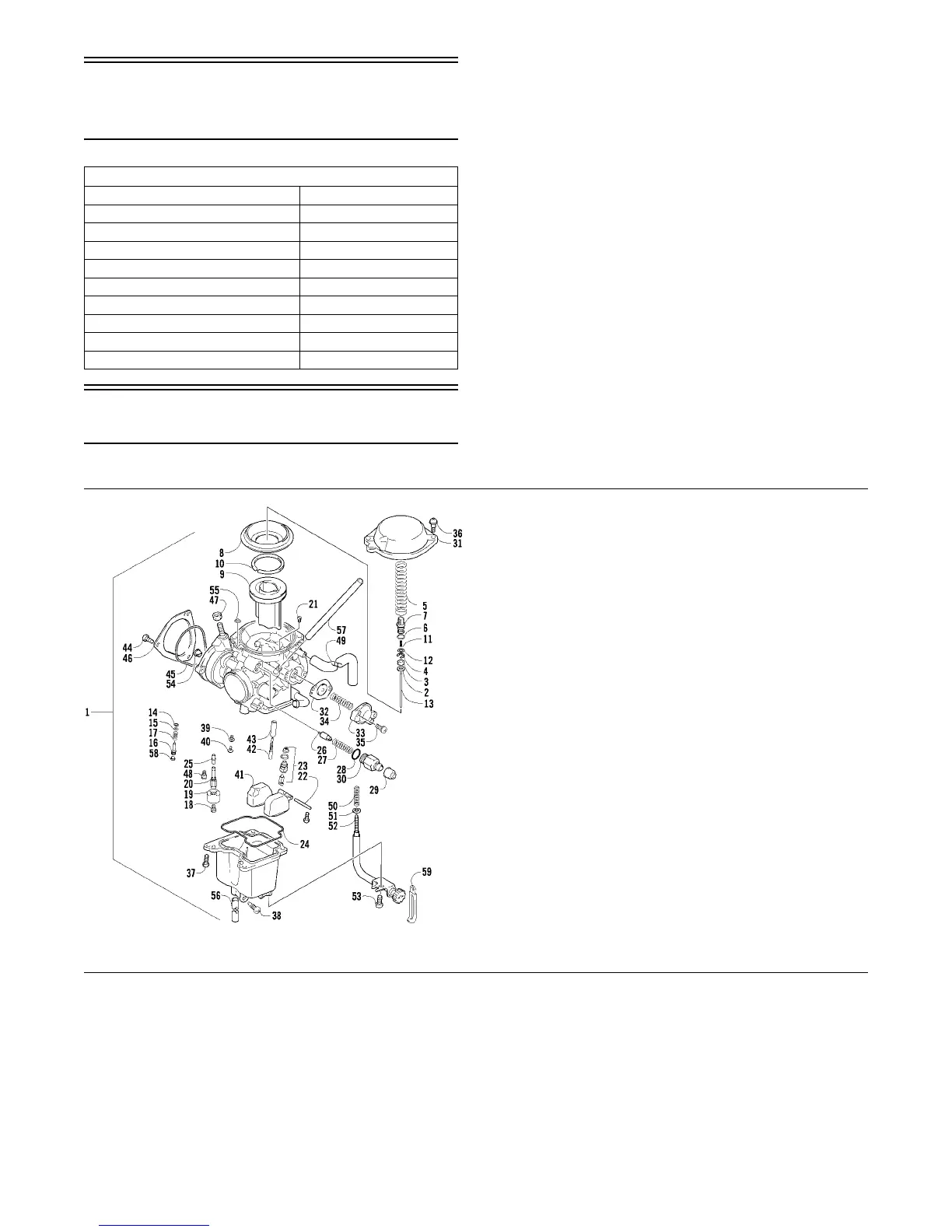

Carburetor Schematic
0739-211
ITEM
Type Mikuni BSR36
Main Jet 130
Pilot Jet 22.5
Pilot Screw (turns) 2 1/4
Needle Jet P-OM
Jet Needle 5E26-1
Idle RPM 1250-1350
Starter Jet 60
Float Arm Height 13 mm (0.5 in.)
Throttle Cable Free-Play (at lever) 3-6 mm (1/8-1/4 in.)
KEY
1. Carburetor Assy
2. Washer
3. Ring
4. E-Ring
5. Spring
6. O-Ring
7. Holder
8. Diaphragm
9. Piston Valve
10. Ring
11. Spring
12. Washer
13. Jet Needle
14. O-Ring
15. Washer
16. Pilot Screw
17. Spring
18. Main Jet
19. Ring
20. Jet Holder
21. Jet
22. Pin
23. Needle Valve Assy
24. O-Ring
25. Needle Jet
26. Plunger Assy
27. Spring
28. O-Ring
29. Cap
30. Guide Holder
31. Diaphragm Cover
32. Primer Diaphragm Assy
33. Primer Housing
34. Spring
35. Screw
36. Screw
37. Screw
38. Screw
39. Screw
40. Screw
41. Float Assy
42. Pilot Jet
43. Pipe
44. Screw
45. O-Ring
46. Cover
47. Nut
48. Starter Jet
49. Hose
50. Spring
51. Washer
52. Idle Adjustment Screw
53. Screw
54. Cable Guide
55. O-Ring
56. Hose
57. Hose
58. Plug
59. Clamp
