36
SP248

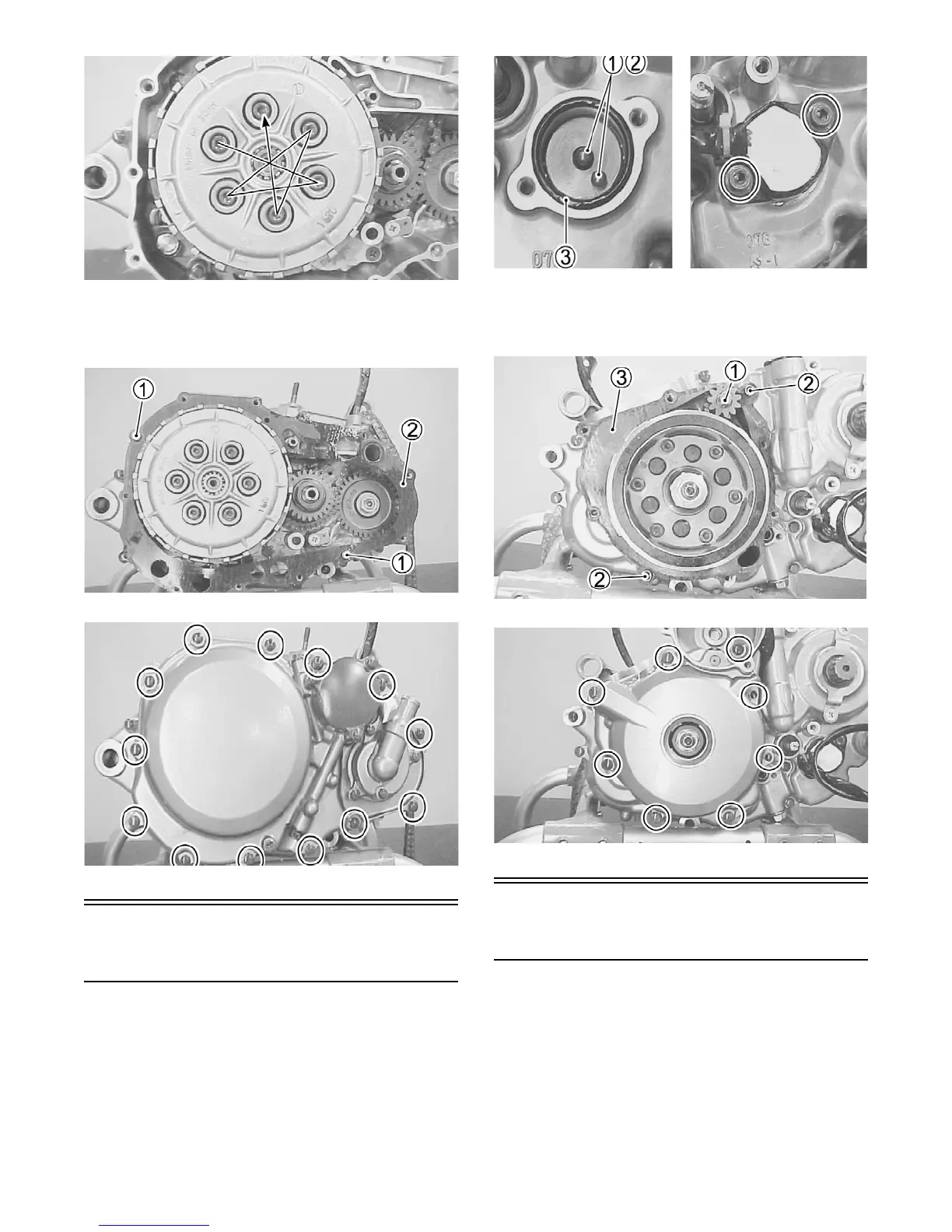

17. Install the alignment pins (1) and a new gasket (2);
then install the clutch cover using a new washer gas-
ket at position (1). Tighten the cap screws securely.
SP249
SP250
Installing Left-Side
Components
A. Neutral Switch
B. Starter Driven Gear
1. Install the springs (1), contacts (2), and a new O-ring
(3); then install the neutral switch and tighten the
Allen-head cap screws to specifications.
SP252A
2. Install the starter driven gear (1), dowel pins (2), and
a new gasket (3); then install the cover and tighten
the cap screws securely.
SP254
SP255
Installing Top-Side
Components
A. Piston
B. Cylinder
NOTE: If the piston rings were removed, install
them in this sequence.
1. Install the spacer (3) into the oil ring groove, then
install the two side rails (4).
