15
SP299
SP300A

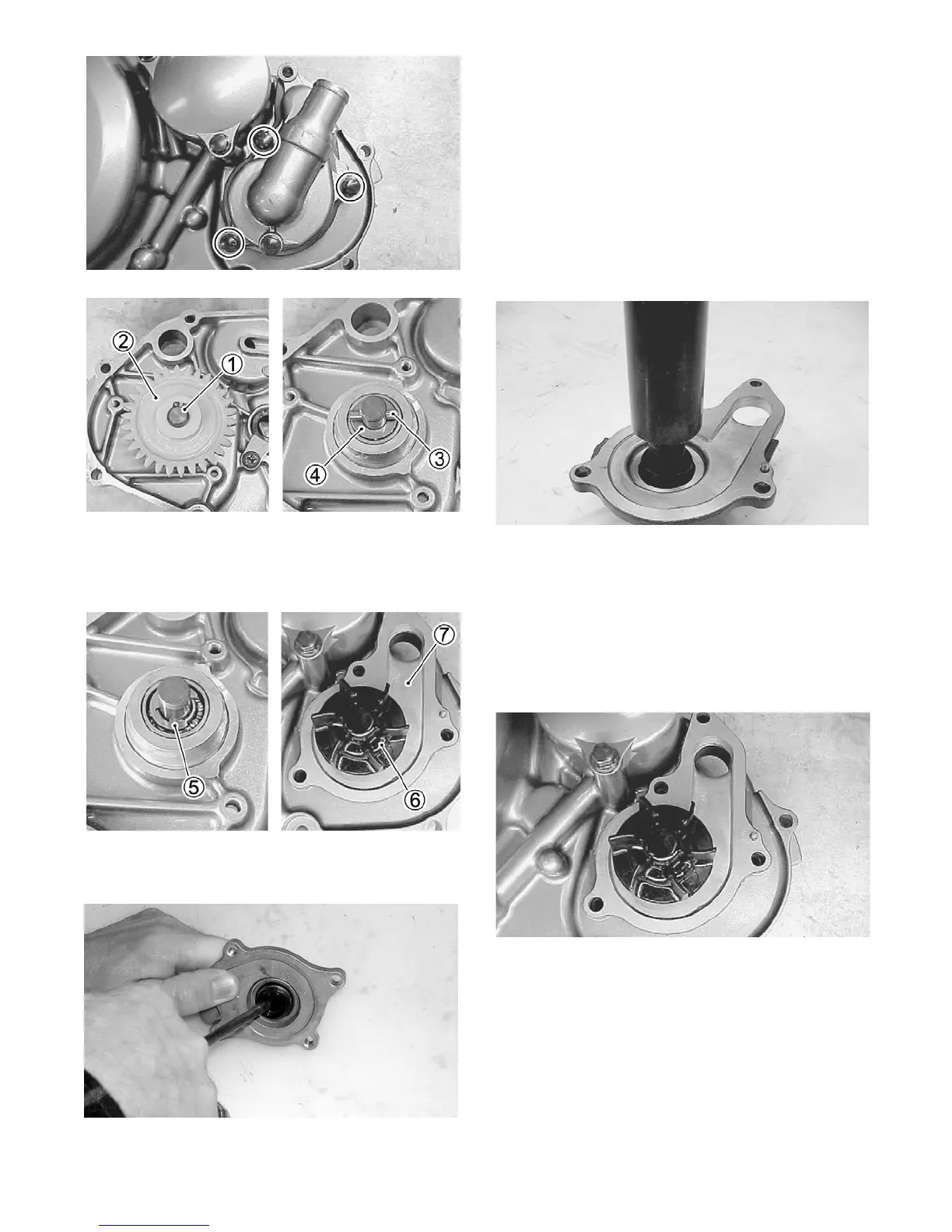

DISASSEMBLING
1. Remove the E-ring (5) securing the impeller/shaft to
the housing (7); then remove the impeller/shaft (6).
SP302A
2. Using Seal Removal Tool (p/n 0644-072), remove
the mechanical seal and the oil seal.
CC772
CLEANING AND INSPECTING
NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.
1. Clean all oil-pump components in cleaning solvent.
2. Inspect the impeller/shaft for corrosion or damage.
ASSEMBLING
1. Place the new oil seal into the housing; then using a
seal driver, gently tap the seal down until it is fully
seated.
SP304
2. Place the new mechanical seal into the housing; then
tap it down until it is fully seated.
NOTE: A large, deep socket can be used to drive
the seal down evenly.
3. Install new O-rings in the water pump housing; then
install the water pump with impeller into the clutch
cover.
SP305
4. Install the E-ring on the impeller shaft making cer-
tain it is properly seated.
