Ardo medical AG 8 Operating Instructions
Master and Senator
Subject to modifications

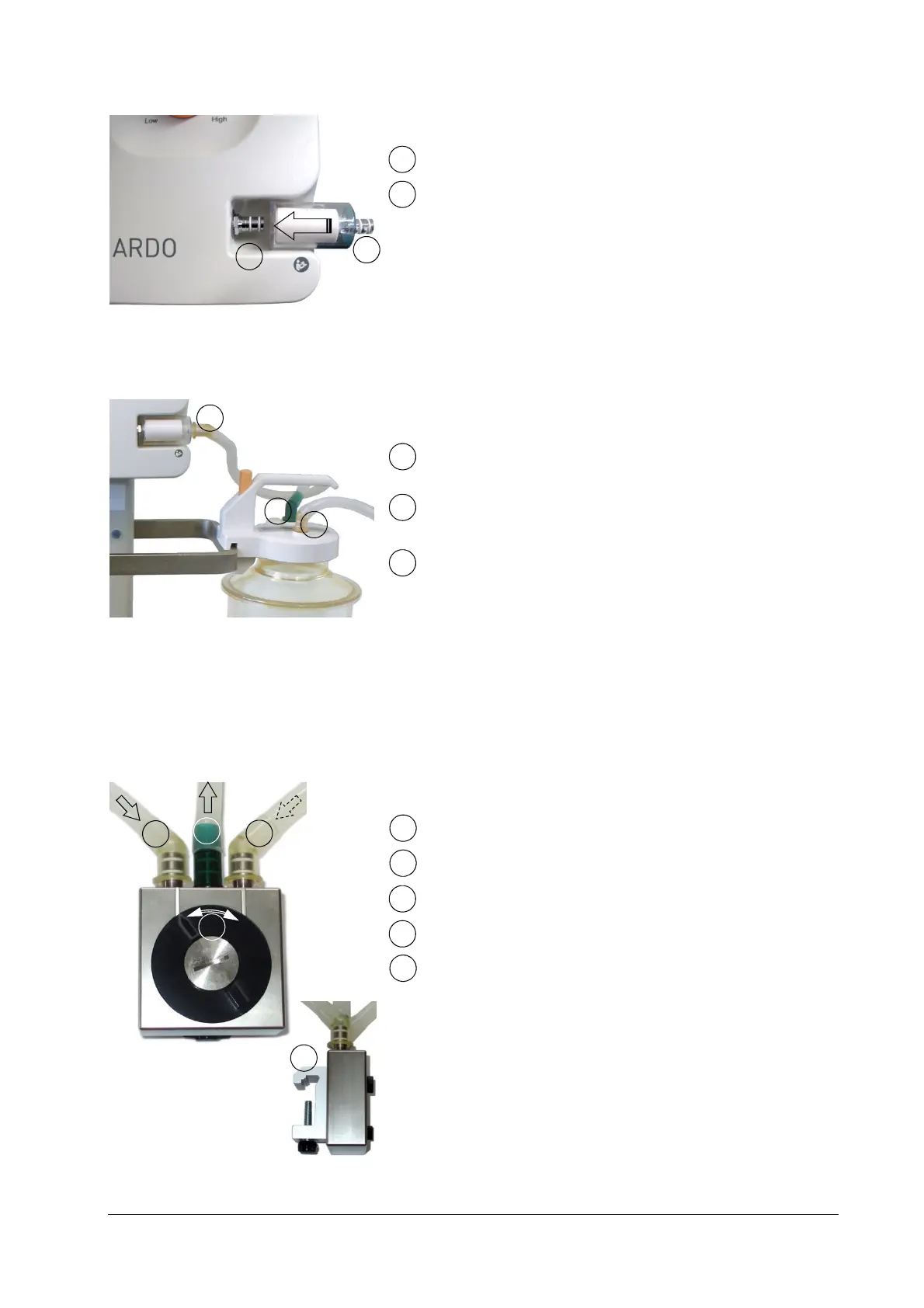

Device front side
Connector for hydrophobic bacterial filter
Connector for 0.5m connection tubing to suction jar
Lid of suction jar
Connect the transparent angled coupling connector of the
0.5m connection tubing to the hydrophobic bacterial filter.
Connect the green angled coupling connector to the
green male coupling on the lid of suction jar.
Connect the transparent angled coupling connector of the
1.7m patient tubing to the transparent male coupling on
the lid of suction jar.
Change-over valve
Change-over valve is optionally available
With the change-over valve the vacuum of the pump
can be switched manually from suction jar A to suction jar B.
To the vacuum connector of the vacuum pump
From the vacuum connector of the suction jar A
From the vacuum connector of the suction jar B
Change-over A to B
Clamp for fixing on a fitting rail
1
2
1
2
1
2
3
3
1
2
1
B
A
4
5
1
A
B
4
5
