4.3 Lid of suction jar and suction jar
The lid fits 1 liter, 2 liter and 5 liter suction jars from Ardo medical.
The spring-loaded pressure pin with clamp allows quick mounting on a fitting rail.
The float of the mechanical overflow safety device prevents overflow of a full suction jar.

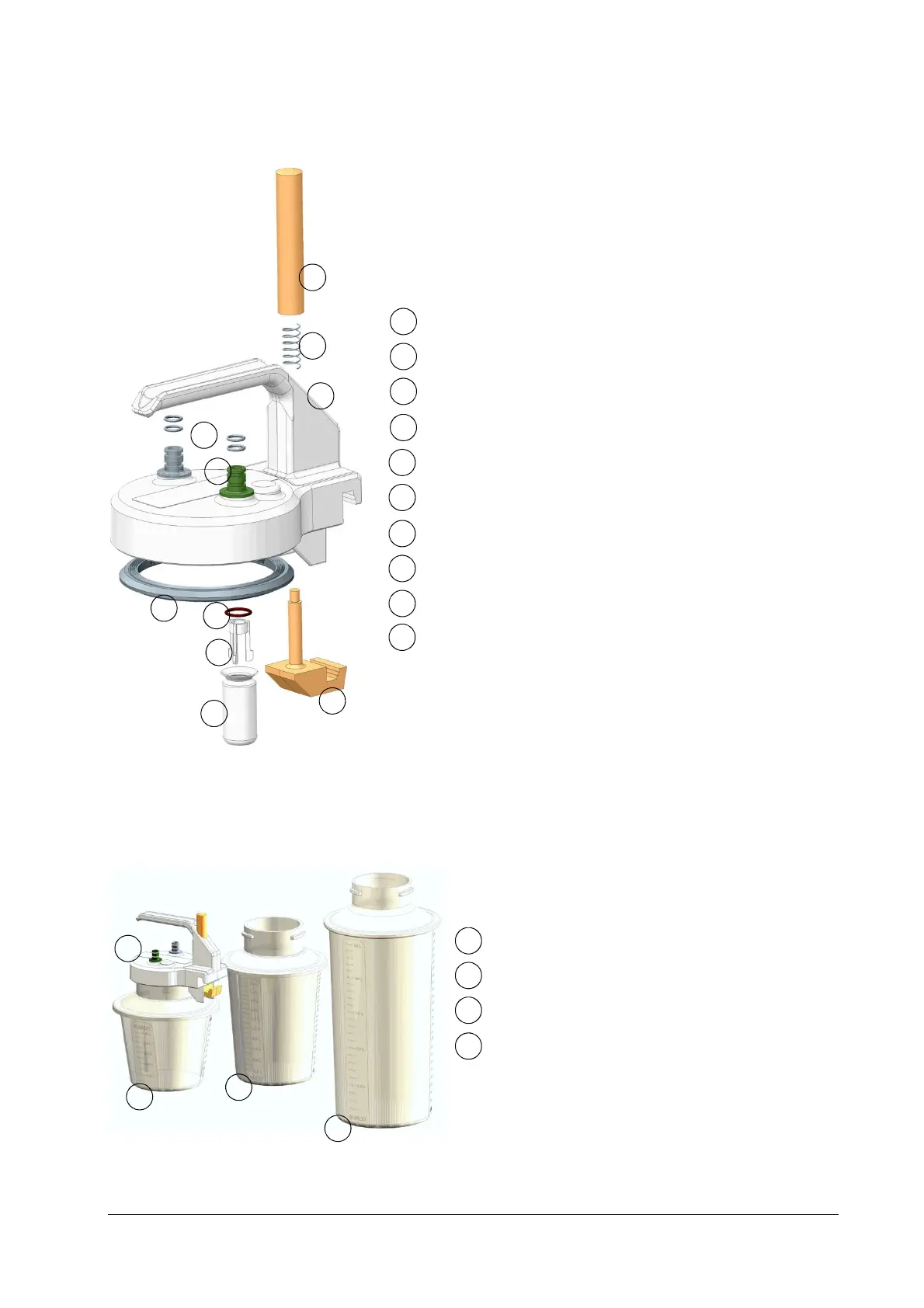

Pressure pin
Pressure spring
Lid with handle
4x O-ring 8.1 x 1.6mm
Coupling connectors green and transparent
Seal for lid of suction jar
O-ring silicone 12.42 x 1.78mm
Retainer for float of overflow safety device
Float for overflow safety device
Clamp with threaded pin
The material of the suction jar consists of high quality polysulfone.
1 liter suction jar with graduation 100ml
2 liter suction jar with graduation 100ml
5 liter suction jar with graduation 200ml
Lid with handle
and mechanical overflow safety device
1 liter suction jar
2 liter suction jar
5 liter suction jar
