Ardo Master - TROLLEY ATTACHMENT; Mounting the Device on the Trolley

Ardo medical AG 12 Operating Instructions
Master and Senator
Subject to modifications
4.4 Trolley
Trolley is optionally available

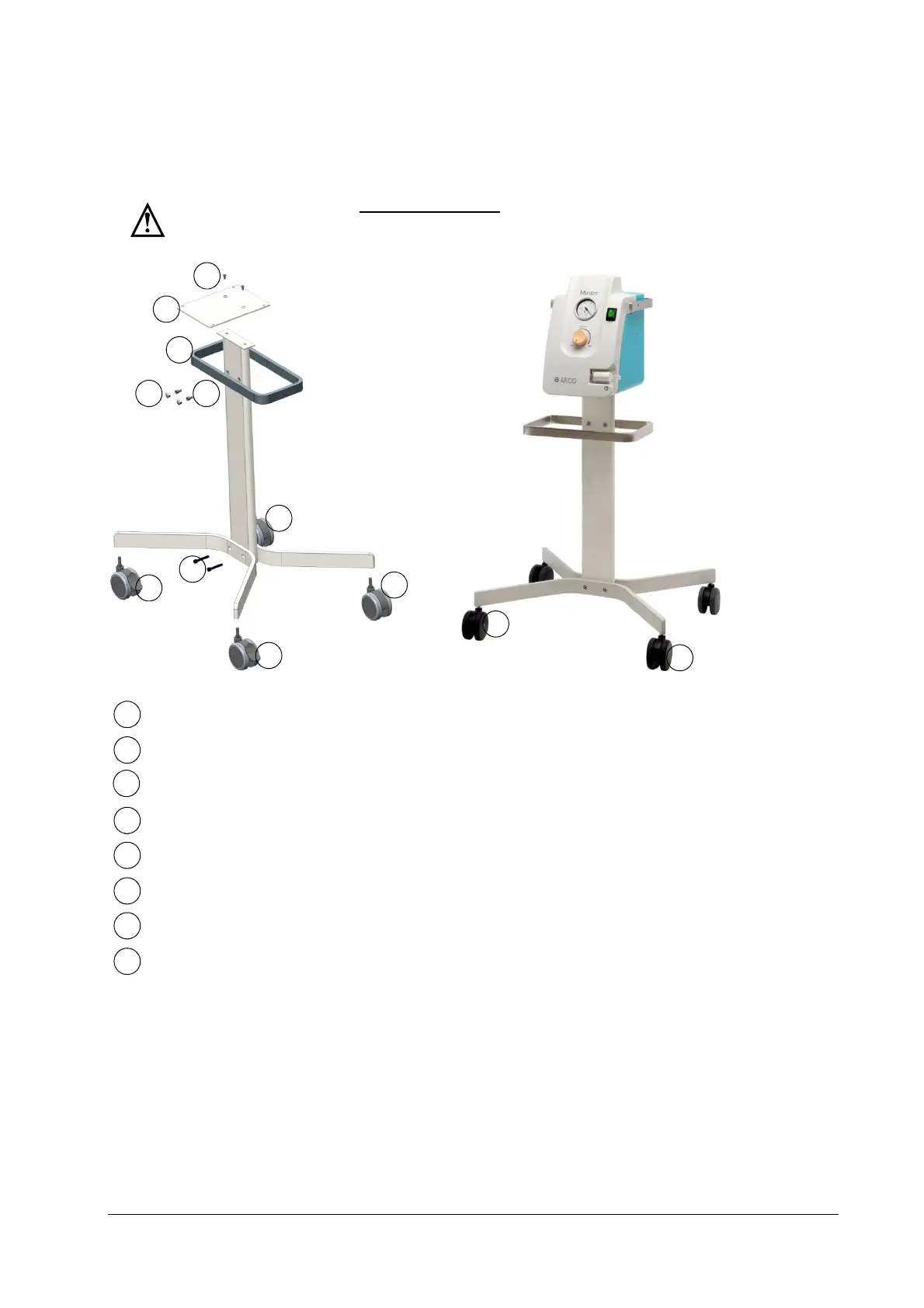

To mount the device on the trolley, unscrew the four rubber feet on the bottom of the housing.
Screw the device to the mounting plate with the screws from the four rubber feet;
ensure that the front of the device matches the position of the castors with the brakes.
Ventilation of the device without rubber feet is only ensured on the trolley.
If the device is removed from the trolley, the rubber feet must be re-attached
to the bottom of the housing to ensure ventilation.
2x Hex socket flat countersunk head screw M5x10
1x Mounting plate
1x Fitting rail
2x Hex socket head cap screw M6x10
2x Protection plug
2x Hex socket head cap screw M6x40
2x Castor with brake, antistatic
2x Castor without brake
7
7
1
5
4
6
7
8'
7
8
2
3
1
4
5
6
7
8
2
3
