Areva HVX-E - Operation; Control Elements and Operator Interface

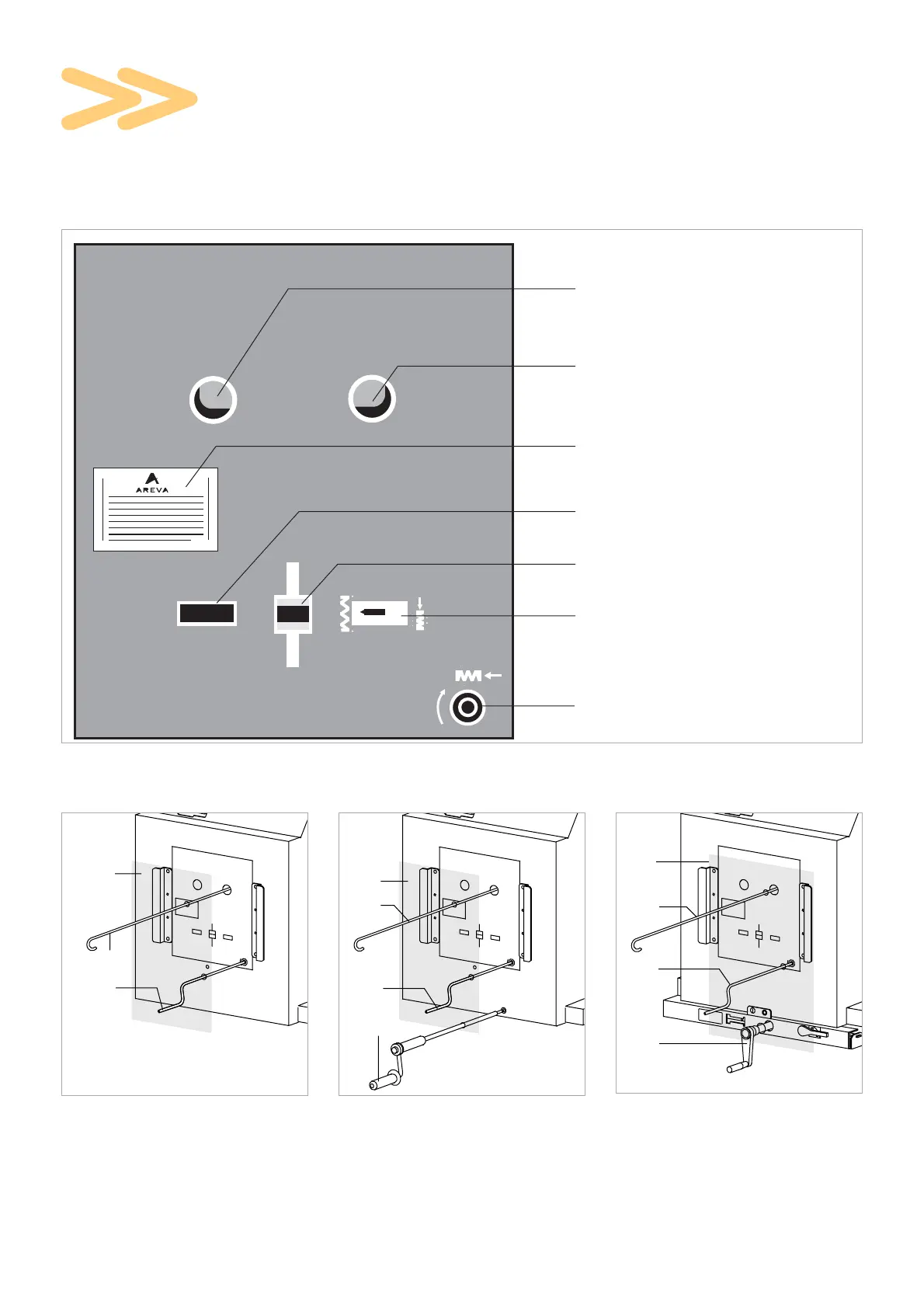

7.1 Control elements and operator interface
1
2
3
4
Fig. 7.3
Control elements for the circuit-breaker
HVX-E in PIX switchgear panels
Sachsenwerk Type HVX 24 -16 -00 -21
NO SW1 3340121001 1999
U 24 kV Im 800 A / 50/60 Hz
Um 125 kV Isc 16 kA /th 3 s
0 - 3min - 00-3min-00
Made in Germany
00215
HVX
0
l
Fig. 7.1
Operator interface of HVX circuit-breaker
1 closed door of switchgear panel
2 ON/OFF operating rod
3 Spring charging crank for energy
storing device
4 Moving crank handle for withdrawa-
ble part
1
3
2
Fig. 7.2
Control elements for the circuit-breaker
HVX-F
7 Operation
18
1
2
3
4
Fig. 7.4
Control elements for the circuit-breaker
HVX-E in PIX high current switchgear
panels
button (rocker “O”) or pushbutton “O”
to switch circuit breaker OFF (open)
button (rocker “I”) or pushbutton “I” to
switch circuit breaker ON (close)
Nameplate
Operation counter
Position indicator of circuit breaker
Position indicator of closing spring
Insertion opening for charging the
energy storing device
