Areva HVX-E - 2 Variants

1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
Fig. 2.1

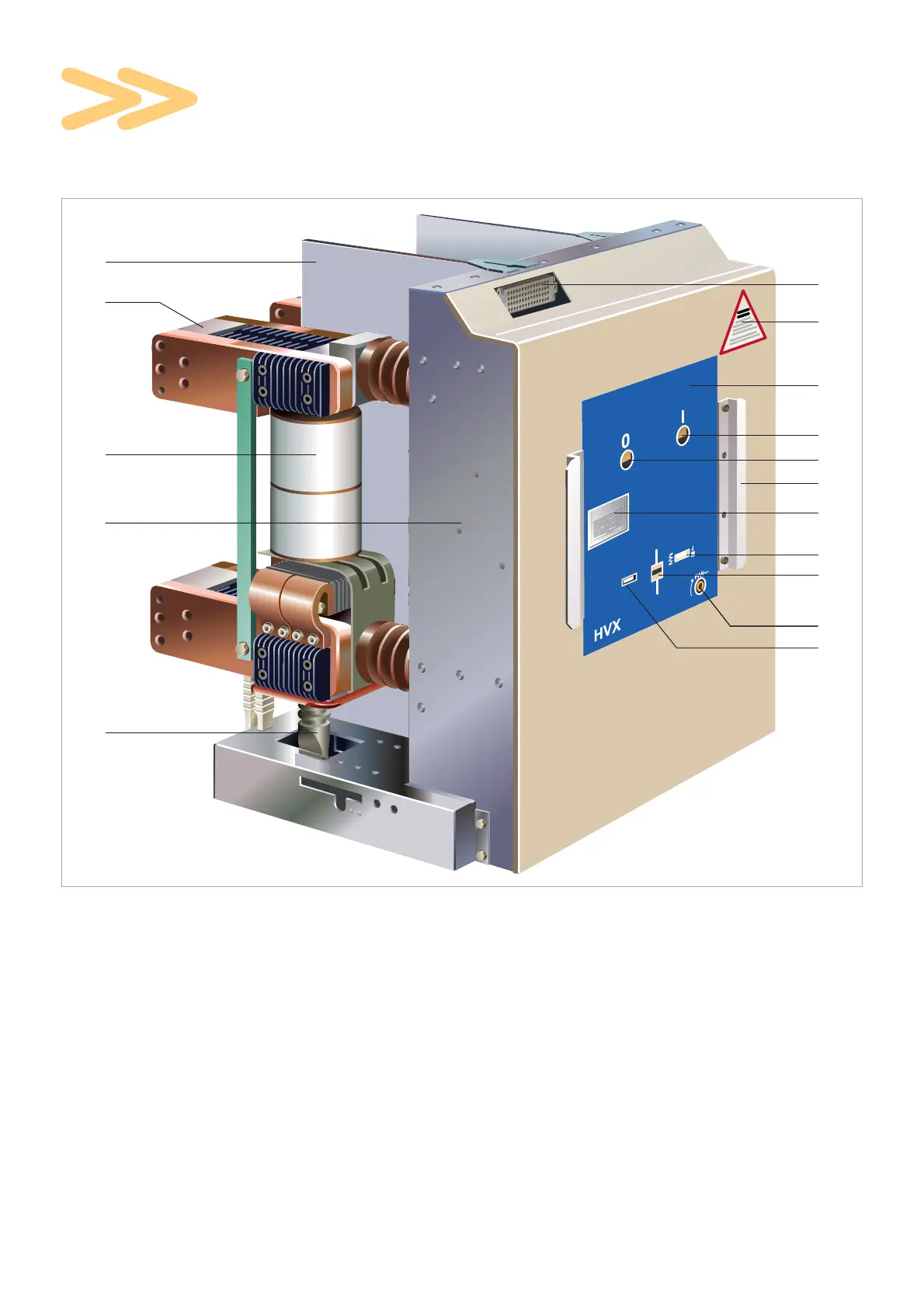

Vacuum circuit breaker HVX-F – fixed type
2 Variants
6
1 64-pole low-voltage terminal
2 Information plate for commissioning
3 User interface
4 Switch circuit-breaker ON
5 Switch circuit-breaker OFF
6 Handles (optional)
7 Nameplate
8 Position indicator of closing spring
9 Position indicator of circuit breaker
10 Insertion opening for manual char-
ging of the closing spring
11 Operation counter
12 Press rod (transfer of ON/OFF swit-
ching movement)
13 Drive casing
14 Vacuum interrupter chamber
15 Conductor bar terminal
16 Pole partitions
