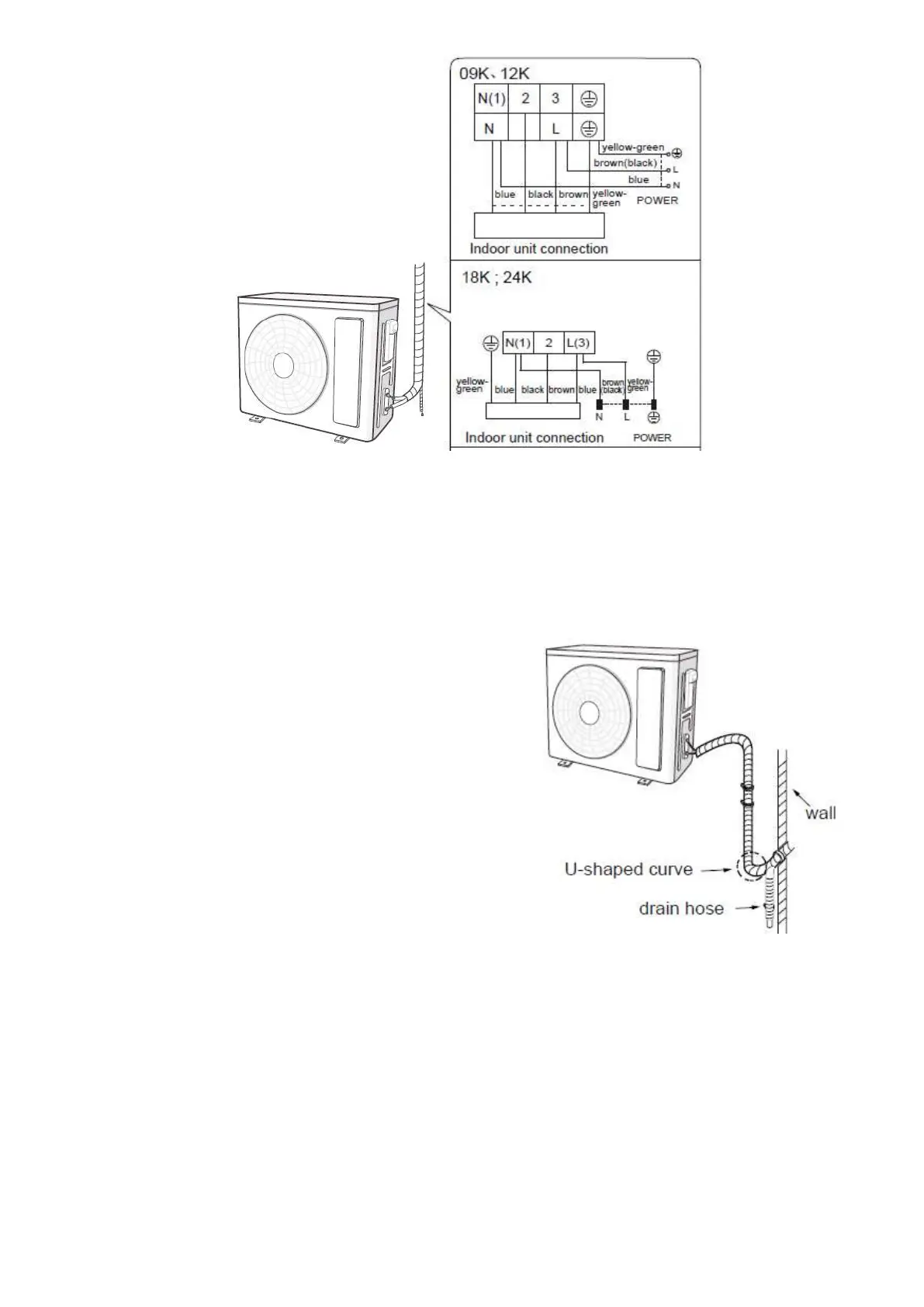

2. Secure the power cable and the signal control cable with the clip (only for cooling and heating
units).
N.B.: • Once you have tightened the screw, pull on the power cable gently to check it is secure.
• Never cut the power cable to extend or reduce the distance.
Step six: tidy up the pipes
1. The pipes should be routed along the wall, bent only as
much as is necessary and, if possible, hidden from view.
Minimum pipe bending radius: 10 cm.
2. If the outdoor unit is higher than the hole in the wall,
you must create a U-bend in the pipe before it enters the
room to prevent rain from getting into the room.
