Argox D4 250 - Ethernet

6 Specifications Interfaces
58
6.9.2 Ethernet

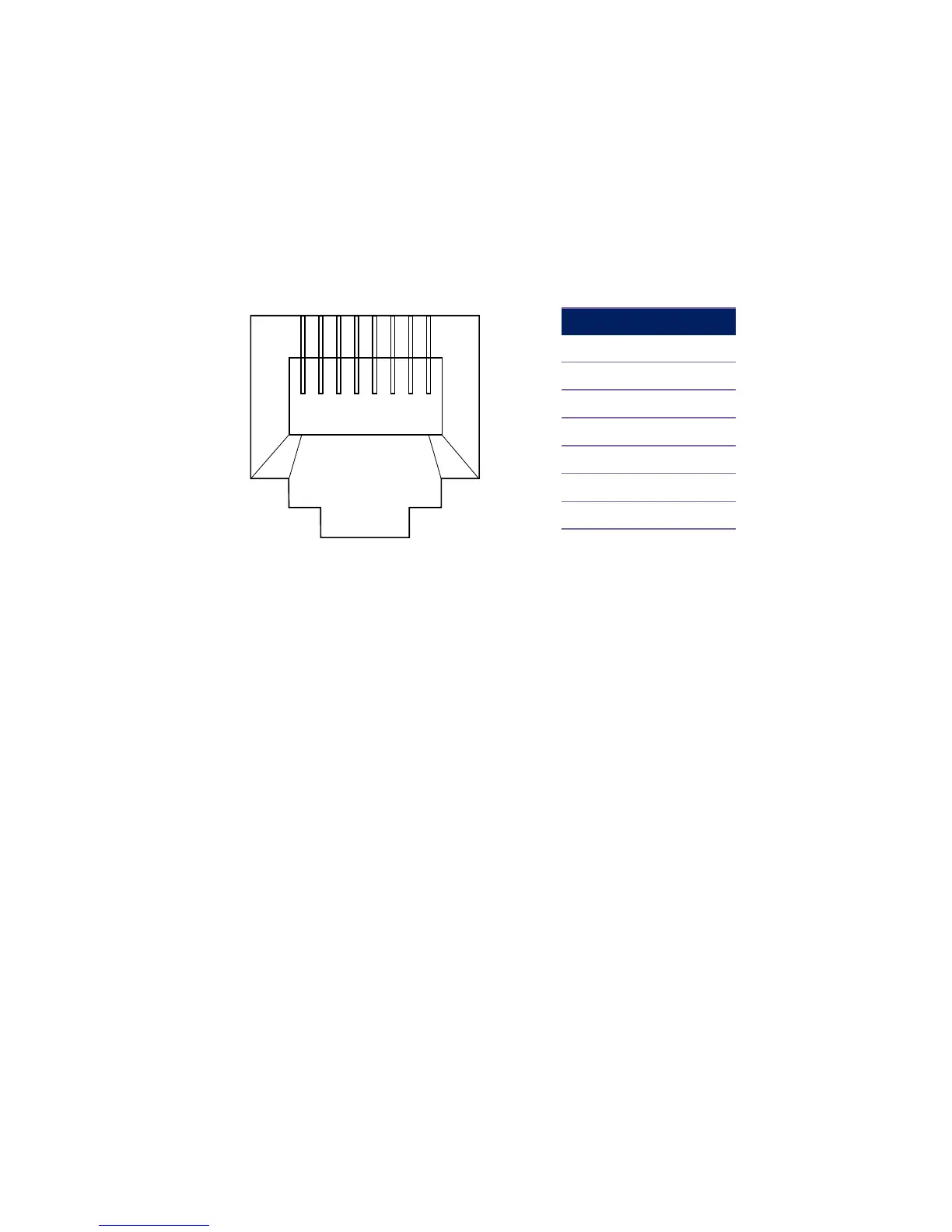

The Ethernet uses RJ-45 cable, which is 8P8C (8-Position 8-Contact). The
figure below shows its pinout.
1
2
3
4
5 6
7
8
Pin
Signal
1
Transmit+
2
Transmit-
3
Receive+
4
Reserved
5
Reserved
6
Receive-
7
Reserved
8
Reserved
