Argus E25 MOD II - Operating Instructions
10
Optional components
In normal operation, the actuator oper-
ates with electric power.
It is possible to manually open and close
a valve with the actuator mounted using
the hand lever.
The unit can be installed on the following
types of valve:
 Ball valve
 One-way ball valve
 Multi-way ball valve
 Ball valve combinations
 Non-return valve
 Butterfly valve

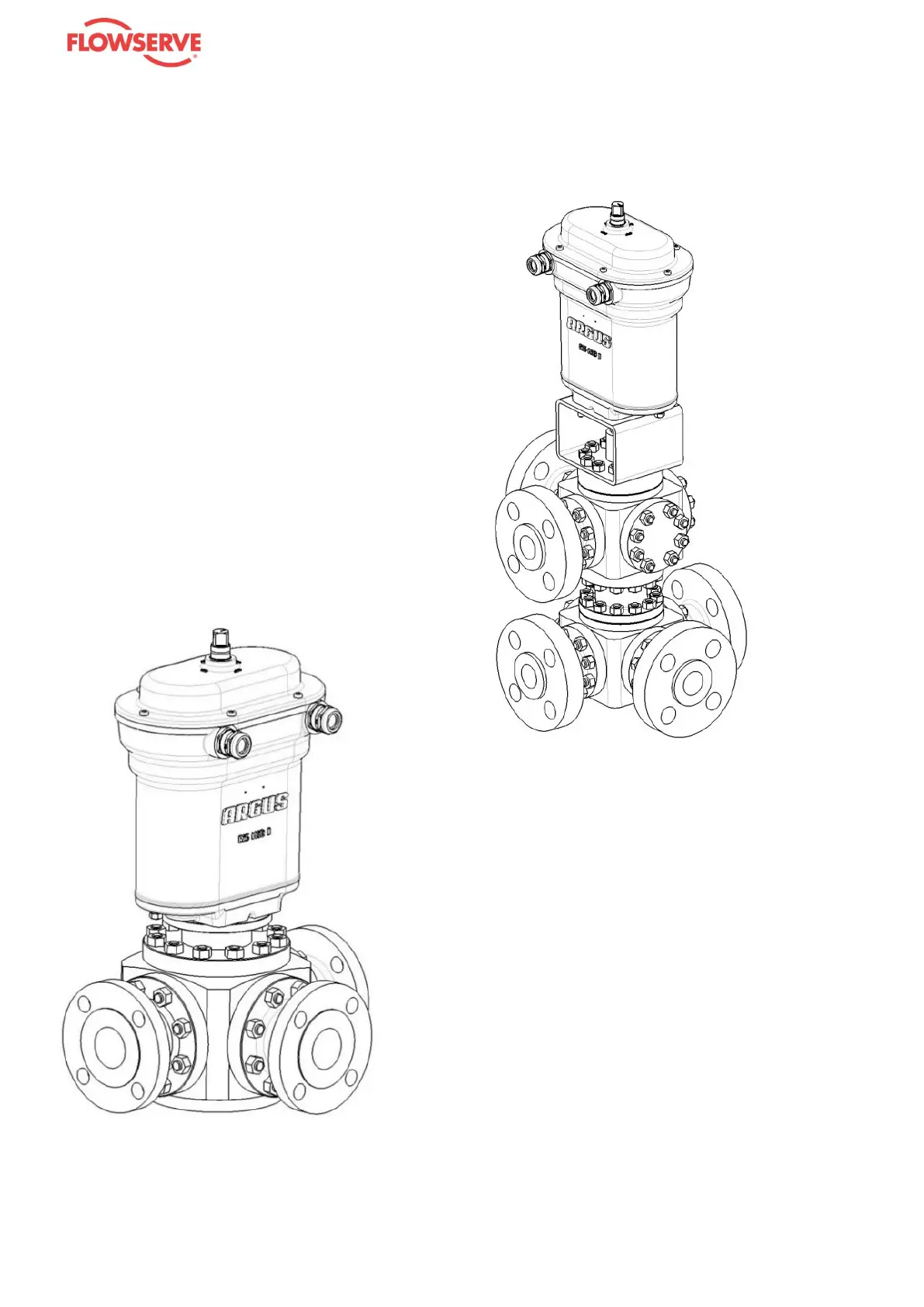

Example: E25 MOD II with multi-way ball
valve
:
Example: E25 MOD II with ball valve
combination
:
Units with this type of combination can
have several different end positions
(max. 3 or 4) by using the setting cams.
Cam setting is described in detail from in
the appropriate chapter.
