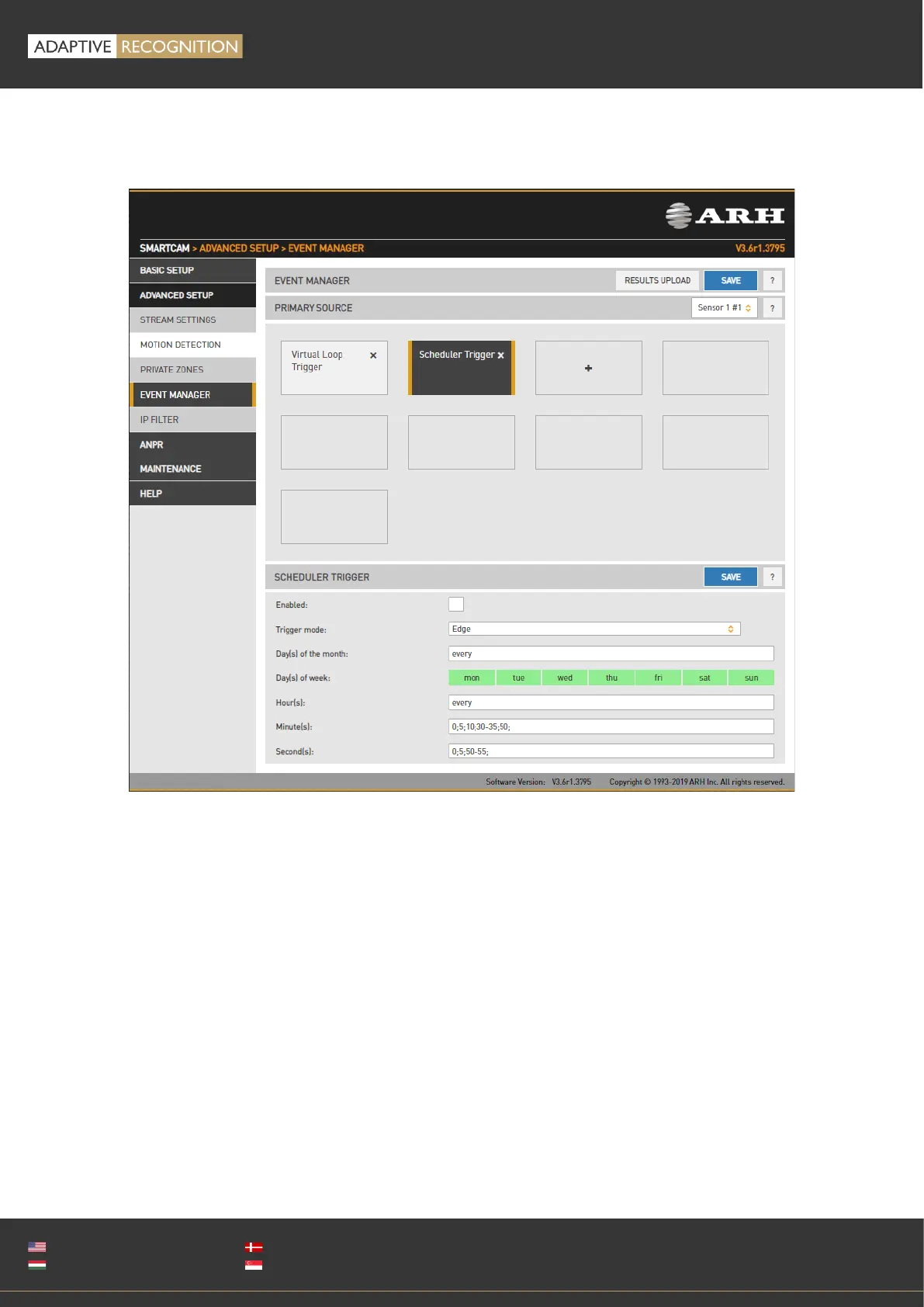

13.1.6. SCHEDULER TRIGGER
This trigger source provides the user with a timer. Triggers can be scheduled with a precision of one
second. Two trigger modes are available:
• Edge: the trigger is asserted at only the start of the specified point in time.
• Level: the trigger is asserted during the specified second/minute/hour.
In the fields – Day(s) of the Month, Hour(s), Minute(s), Second(s) – the following expressions can be
used:
• numerals separated by semicolons (e.g. 6;9)
• the word 'every'
• hyphens to express intervals (e.g. 7-9)
• combinations of the above e.g. 6;7;9-11;15
