Aries 2070450 - Installation Steps; Step 1: Initial Placement; Step 2: Bracket Attachment (Part 1); Step 3: Bracket Attachment (Part 2)

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 877.287.8634 • 2070450-INS-RC • PAGE 2

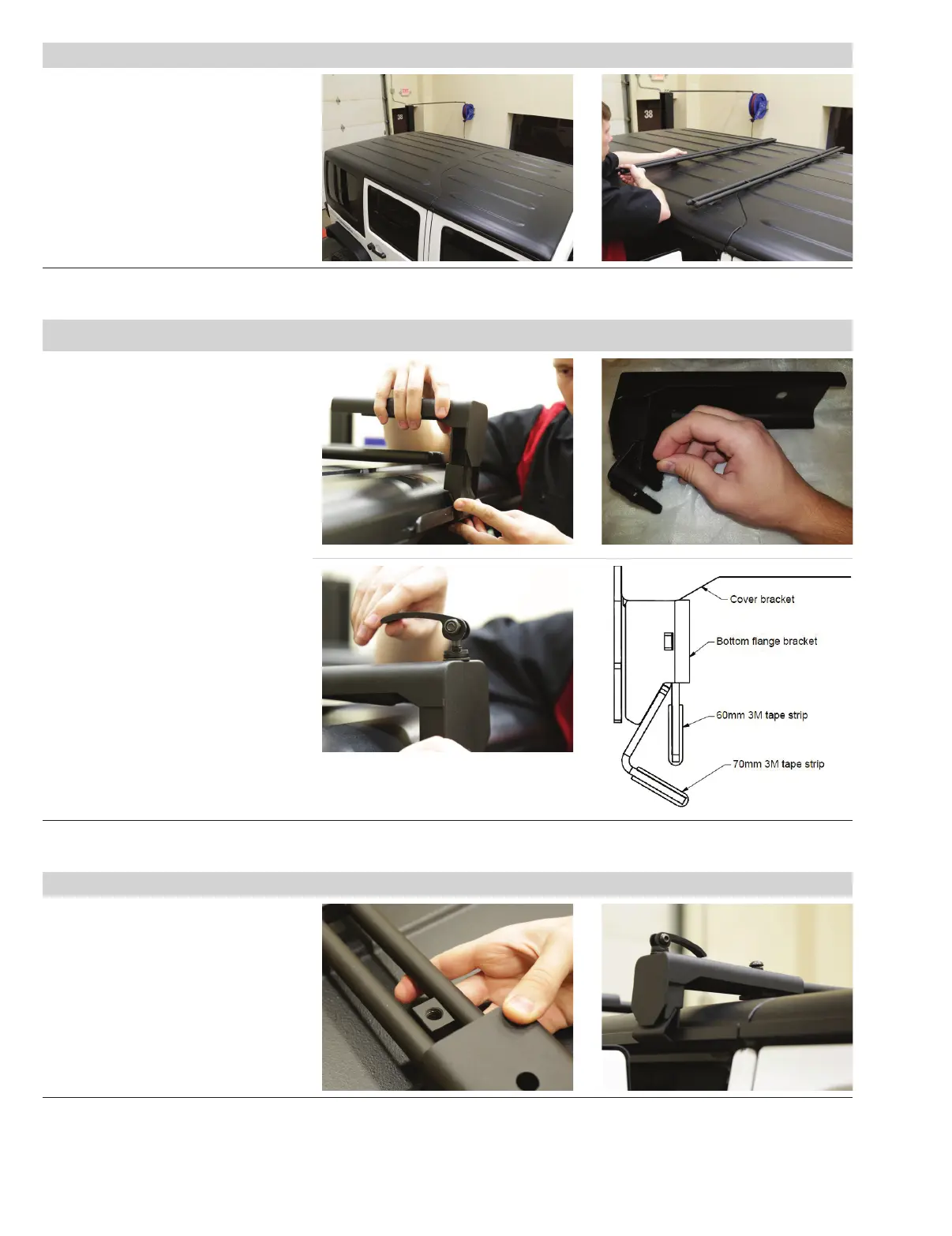

Step 1
Clean off the Jeep's hard top and place
the cross tubing on the hard top.
Step 2
Locate one bottom flange bracket and
one cover bracket. Slide the brackets
together and apply one 60mm and one
70mm 3M tape strip. Attach to flanges.
Note: The brackets must be together
before the tape is applied.
Using an M10 cam lock handle and
an M10 flat washer, attach the bracket
to the Jeep. Snug hardware, but do not
fully tighten.
Repeat this process for the
three remaining attachment points.
Step 3
Once snug, align the cross tubing with
the brackets and attach with an M12
button head cap screw, lock washer,
flat washer and locking bracket.
Snug hardware,
but do not fully tighten.
Repeat this process for the
three remaining attachment points.
