Clearing CMOS data
Asshowninthegurebelow,thisjumperallowsyoutoeraseCMOSdataandresetsetting
to factory default.
Normally this jumper should be set with pins 1-2 closed.
If you want to reset the CMOS data, set the Clear CMOS jumper to 2-3 closed for just a
few seconds, and then move the jumper back to 1-2 closed. This procedure will reset the
CMOS data to its default settings.
Note:
Beforetheoperation,pleasepowero󰀨themotherboardandunplugthepowercord.
1
2
3

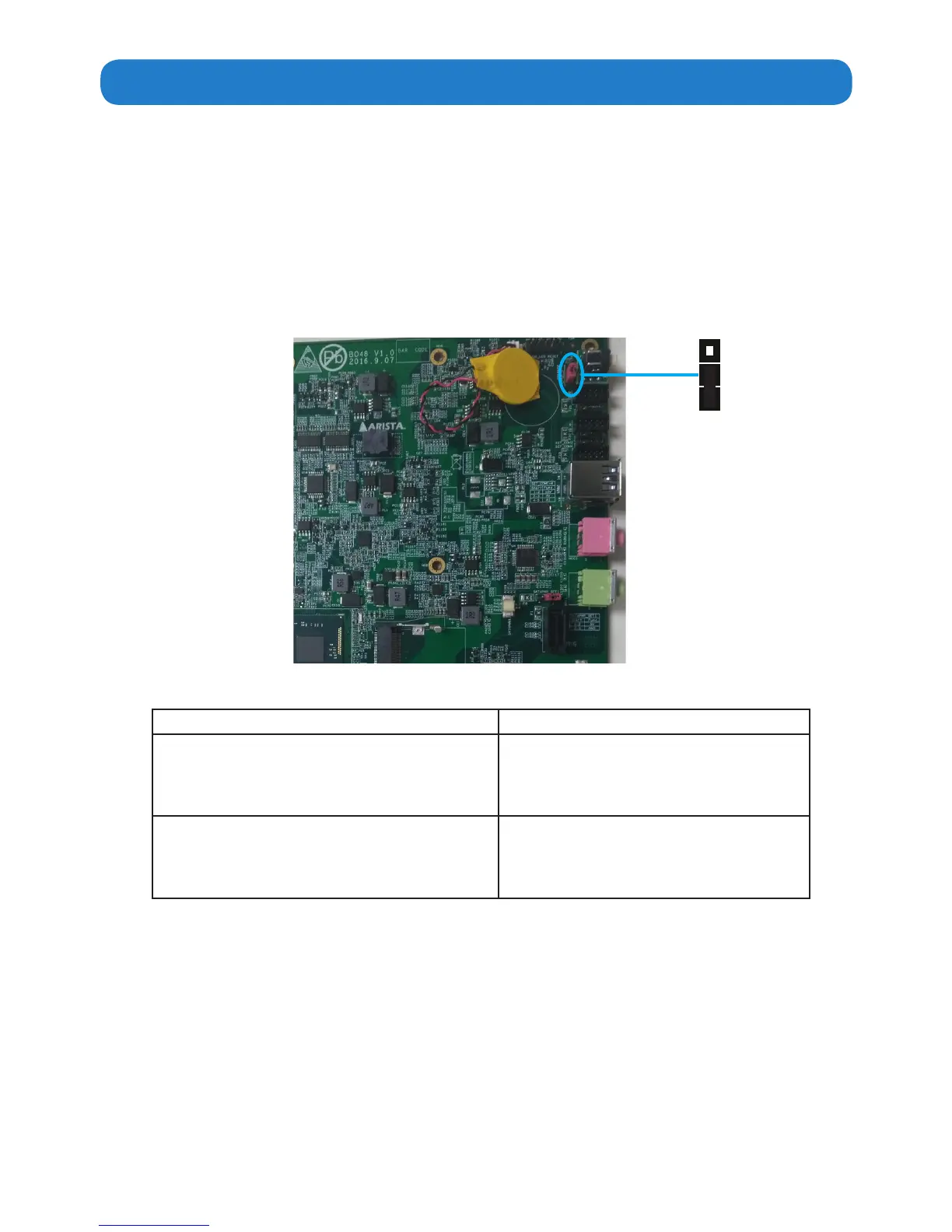

Clear CMOS jumper
Description Pin setting
Keep CMOS data(Normal) Pin1-2 Closed(Default)
Clear CMOS data Pin2-3 Closed
