Speed LED Activity LED
LED Indications on the LAN port
Status Description
Activity
LED
O󰀨 No network connection
On Data transmission activity
Speed
LED
O󰀨 Data transmission at the rate of 10Mbps
Orange Data transmission at the rate of 1Gbps
Green Data transmission at the rate of 100Mbps
1
2
3
4
5
6
7
8
9
10

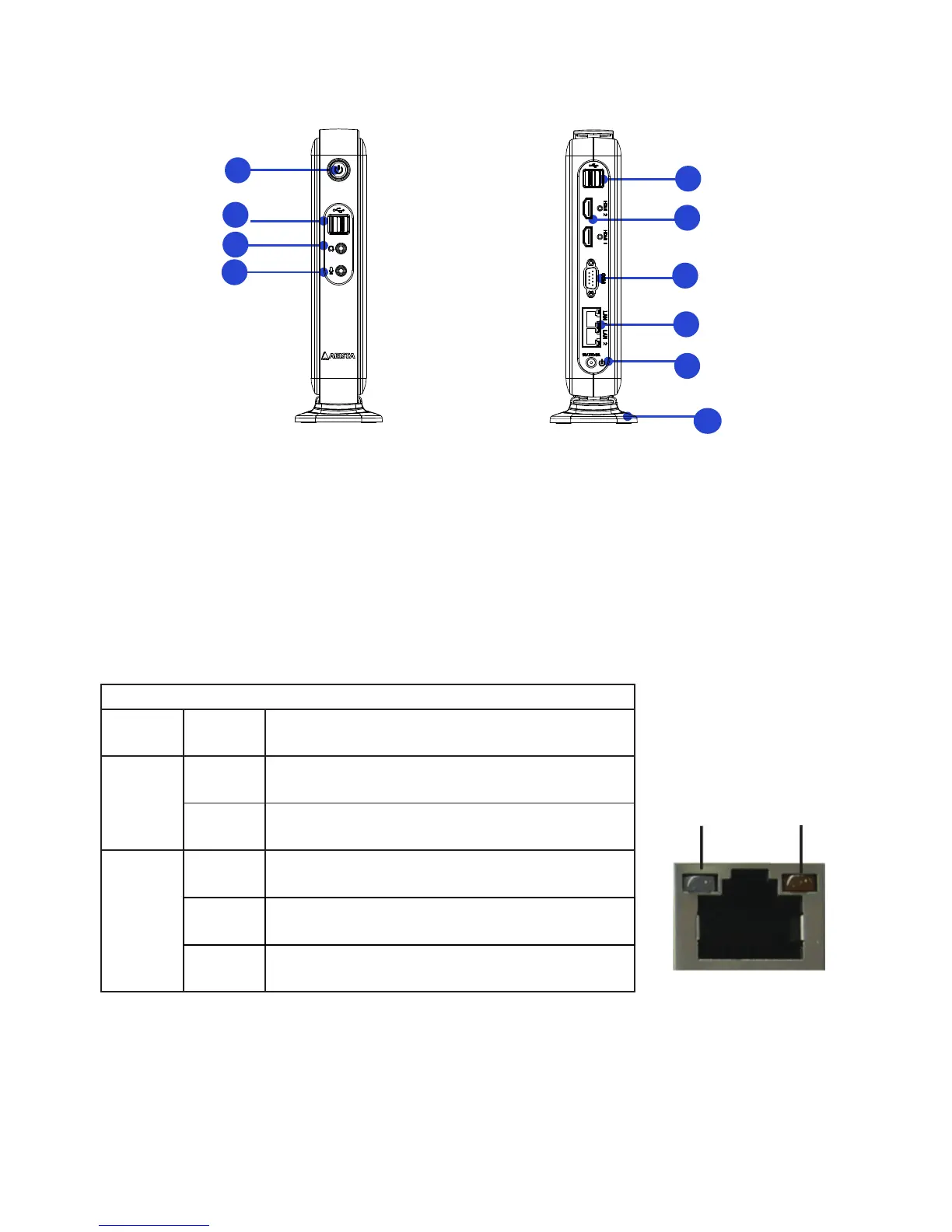

1. Power button 6. 2 x HDMI ports
2. 2 x USB ports 7. COM port
3. Earphone/Headphone jack 8. 2 x RJ45 LAN ports
4. Microphone jack 9. DC 12V/3A power jack
5. 2 x USB ports 10. Desktop stand base(removable)
