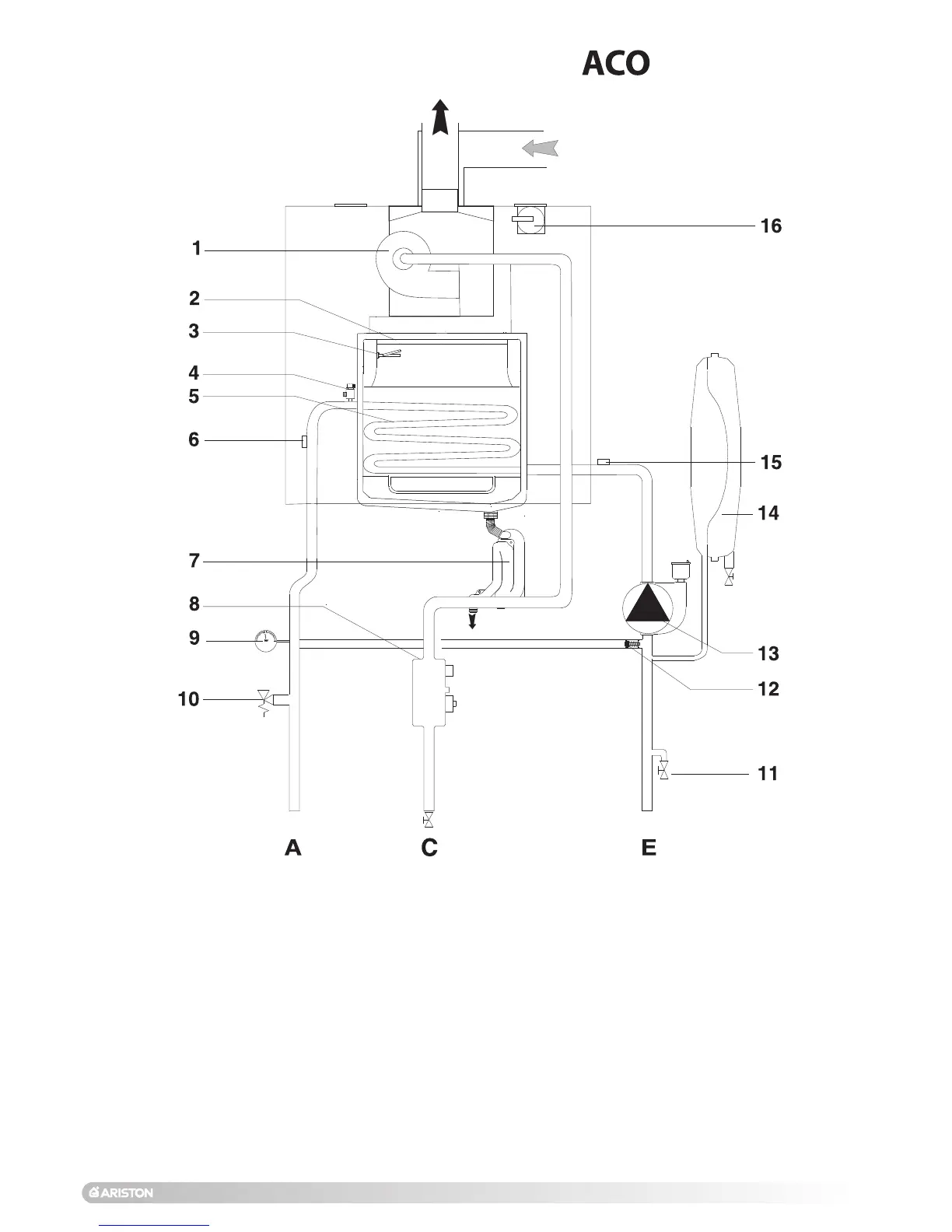

LEGEND:
1- Fan
2 - Burner
3 - Ignition/detection electrode
4 - Air release valve
5 - Main heat exchanger
6 - Central heating flow temperature probe
7 - Condensate Tr ap
8 - Gas valve
9 - Pressure gauge
10 - Safety valve
11 - Drain valve
12 - Automatic By-pass
13 - Circulation pump with automatic
air release valve
14 - Expansion vessel
15 - Central heating return temperature probe
16 - Air pressure switch
A - Central Heating Flow
C - Gas Inlet
E - Central Heating Return
FIG. 2.33
27/32 RFFI (System)
