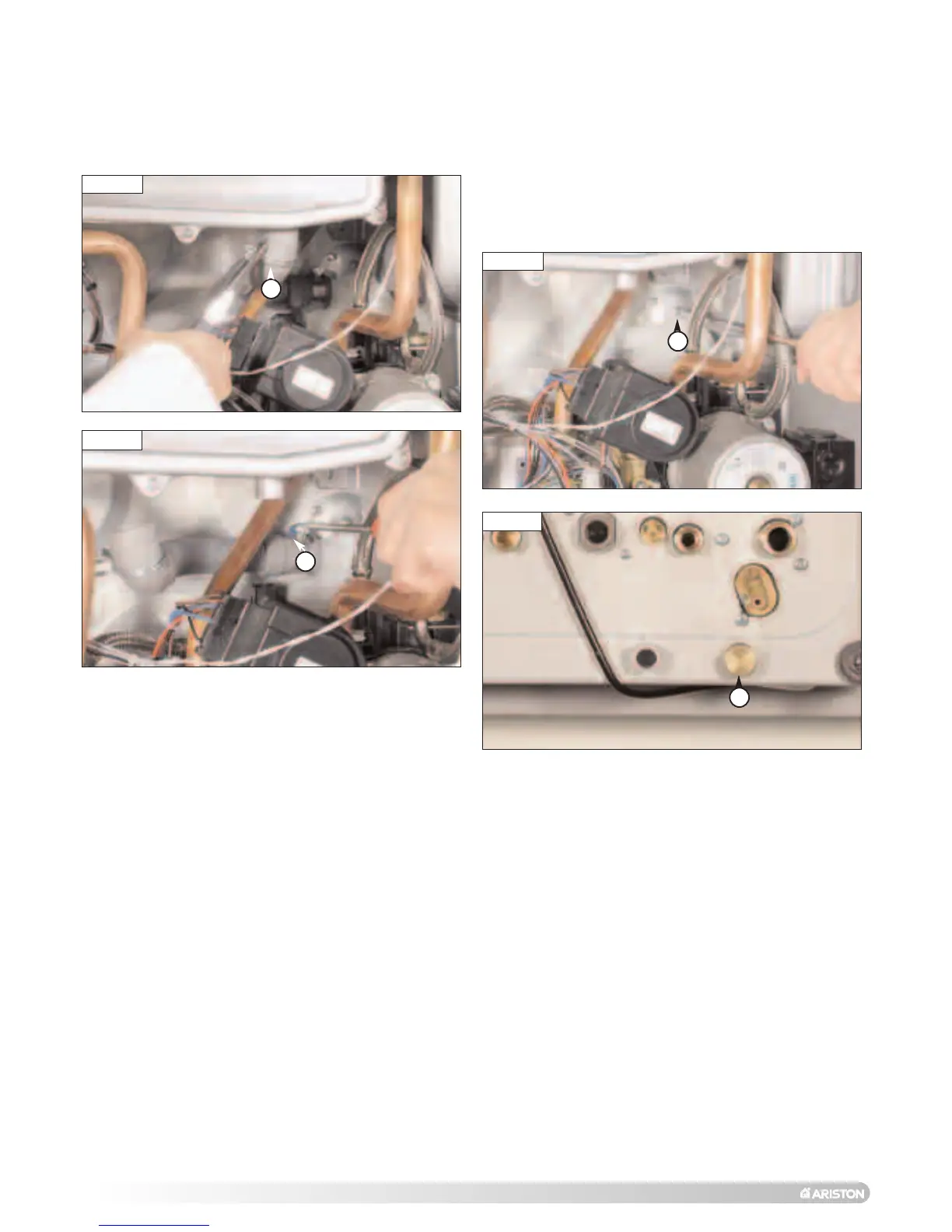

FIG. 7.25
FIG. 7.26
FIG. 7.27
FIG. 7.28
7.3.6. REMOVING THE CONDENSATE TRAP (TUBE)
1. Open the clamp “Q” and remove the condensate trap
connection pipe (FIG. 7.25);
2. Unscrew the screw “R” (FIG. 7.26);
3. Remove the condensate tube.
7.3.7. REMOVING THE CONDENSATE TRAP
1. Remove the condensate trap tube (see section 7.3.6);
2. Unscrew the screw “S” (FIG. 7.27);
3. Remove the blanking cap “T” (FIG. 7.28);
4. Remove the trap from the boiler.
NOTE: Take care when removing the blanking cap to
place a container under the boiler as this will
release the contents of the condensate trap.
Q
R
S
T
