Ariston ACO 32 RFFI SYSTEM User Manual

32

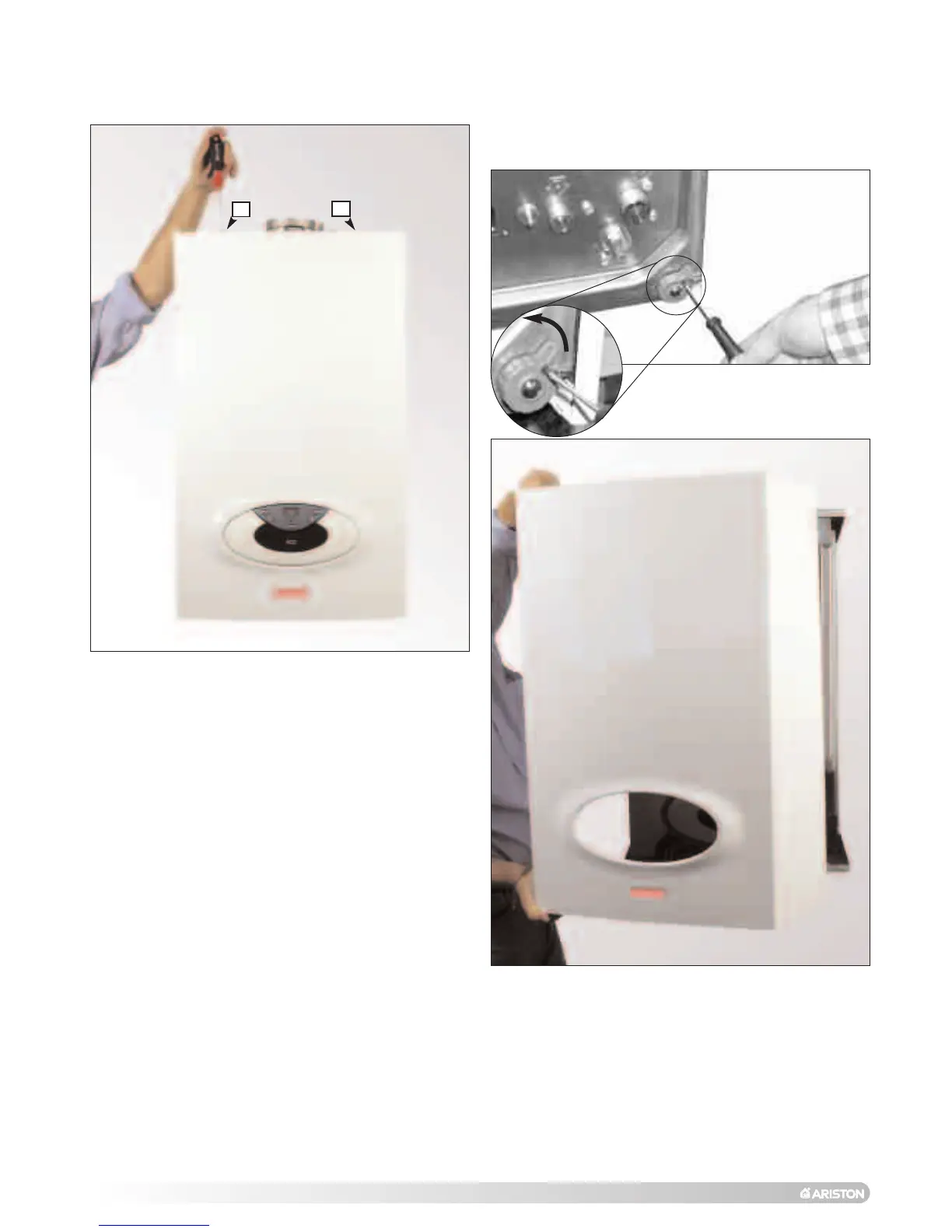

3.2. REMOVING THE CASING
To remove the front casing panel, follow these steps:
1. Remove the screws “A” (FIG 3.1);
2. Remove the four screws from case hooks (two at the top
and two at the bottom) and rotate anti-clockwise (FIG 3.2);
3. Lift and unhook the case panel (FIG 3.3).
FIG. 3.2
FIG. 3.3
FIG. 3.1
A
A

Ariston ACO 32 RFFI SYSTEM Specifications

General

Brand	Ariston
Model	ACO 32 RFFI SYSTEM
Category	Boiler
Language	English
