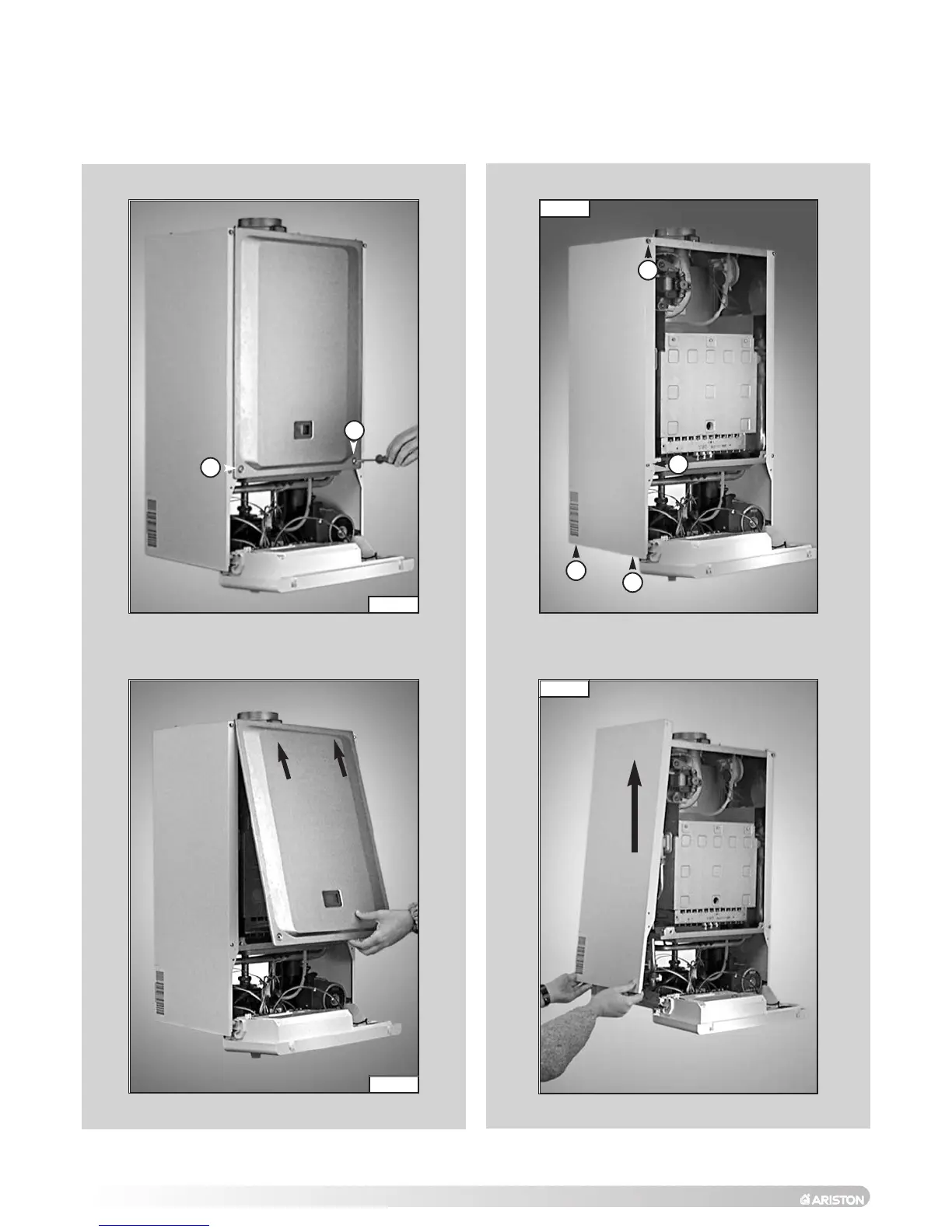

6.2.2 Removing the sealed chamber front cover
1. Remove the screws “C” (FIG. 6.6);
2. Lift the sealed chamber front cover from the locating pins (FIG.
6.7).
FIG. 6.6
C
C
FIG. 6.7
6.2.3 Removing the side panels
1. Remove the four screws “D” for each side panel (FIG.6.8);
2. Pull the panel away from the boiler at the base, then lift the
panel up and remove from the boiler (FIG.6.9).
D
D
D
FIG. 6.8
FIG. 6.9
