Ariston MICROCOMBI 23 MFFI

39

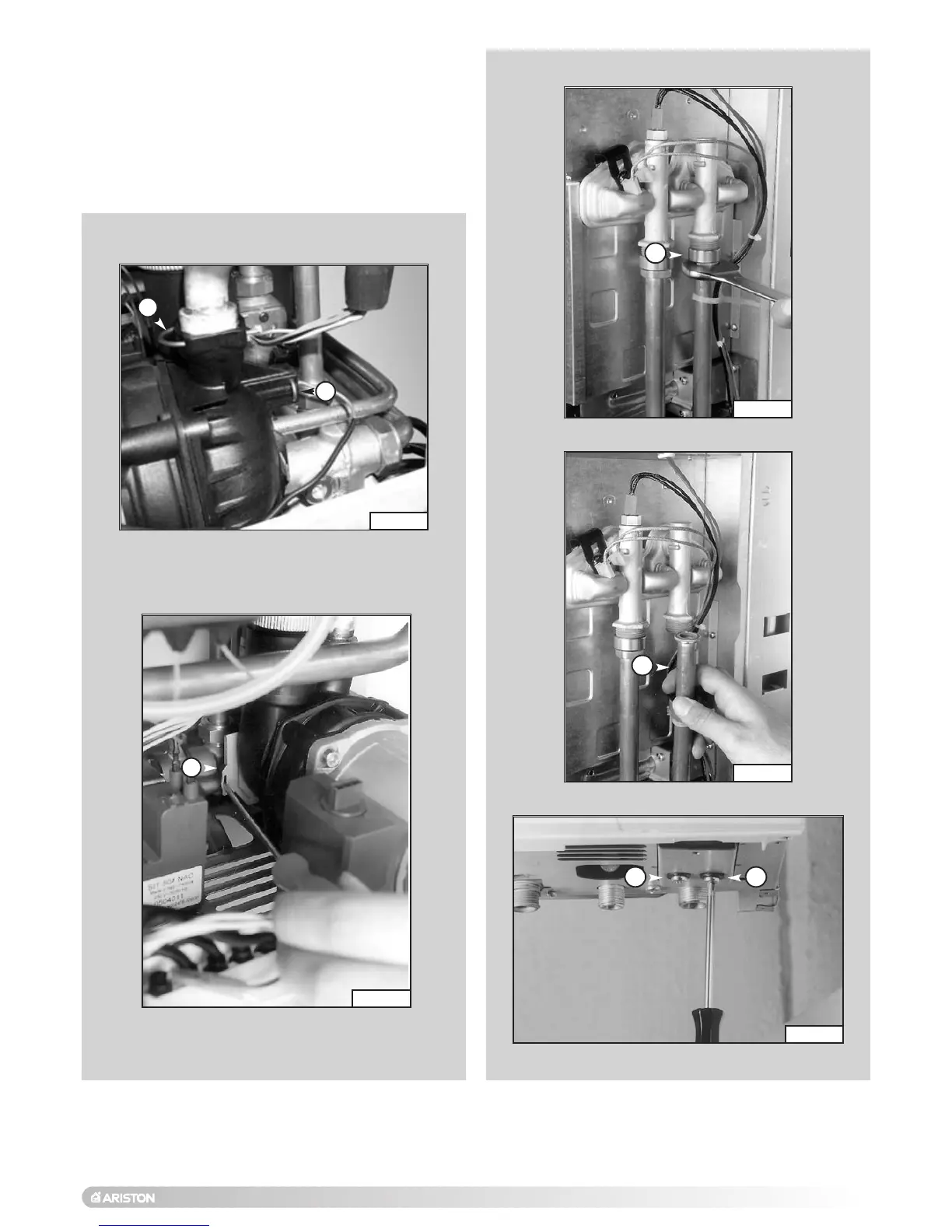

6.5.4 Removing the pump
1.
Remove the U-clip “ Z” (FIG. 6.37);
2. Remove the retaining clip “A1” (FIG. 6.38);
3. Release the nut “C1” (FIG. 6.39);
4. Remove the pipe “D1” (FIG. 6.40);
5. Remove the screws “E1” (FIG. 6.41);
6. Remove the pump.
Z
FIG. 6.37
FIG. 6.38
FIG. 6.39
A1
C1
Z
FIG. 6.40
FIG. 6.41
D1
E1
E1
