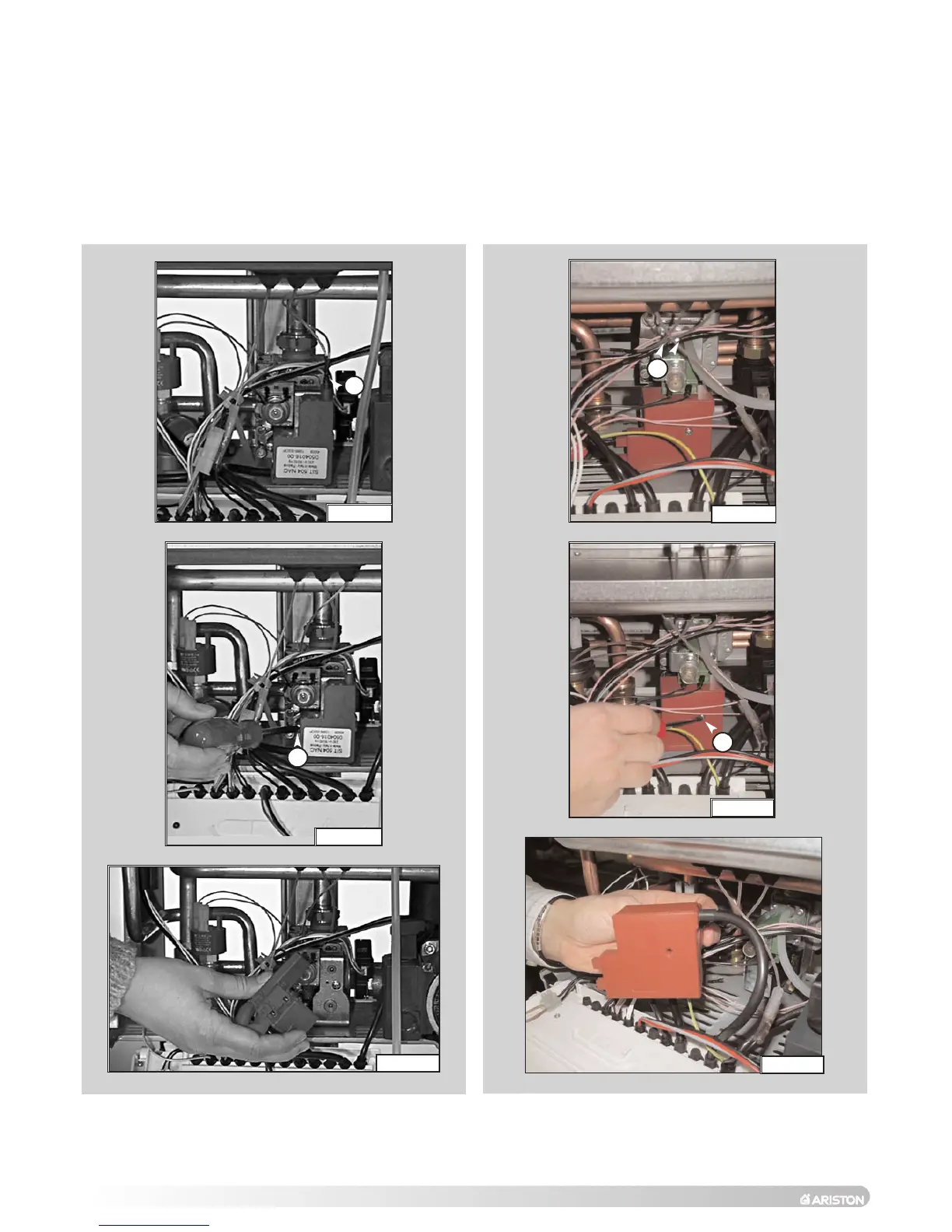

6.4.2. Removing the spark generator (HONEYWELL
Gas Valve)
1.
Disconnect ignition leads “S” by pulling upward
(FIG. 6.27B);
2. Remove the screw “T” (FIG. 6.28B);
3. Remove the spark generator by pulling forward from the
gas valve (FIG. 6.29B).
FIG. 6.27B
FIG. 6.28B
S
T
FIG. 6.29B
6.4.1. Removing the spark generator (SIT SIGMA Gas
Valve)
1.
Disconnect ignition leads “S” by pulling upward
(FIG. 6.27A);
2. Remove the screw “T” (FIG. 6.28A);
3. Remove the spark generator by pulling forward from the
gas valve (FIG. 6.29A).
FIG. 6.27A
FIG. 6.28A
FIG. 6.29A
S
T
6.4 ACCESS TO THE GAS VALVE
