54 /
Warning
In order to avoid contamination between system water and do-
mestic hot water, and to avoid inadvertent fi lling of the system
and subsequent corrosion to system components, you are advised
to install a disconnector equipped with two taps (upstream and
downstream).
2. Connection to the boiler
Connect the system delivery and return, cold water and domestic
hot water, and gas, pipes of the Hybrid Module to the corresponding
boiler connections, as shown in the fi gure.
HYBRID MODULE
Preliminary installation
The HYBRID MODULE HYBRID MODULE must be positioned close to
a residential space to ensure best performance.
To position the system, use the template provided and a spirit level.
NOTE:
You are advised to fi rst install the hybrid module, and subsequently
the boiler.
Affi x the module to the wall using the accessories supplied.

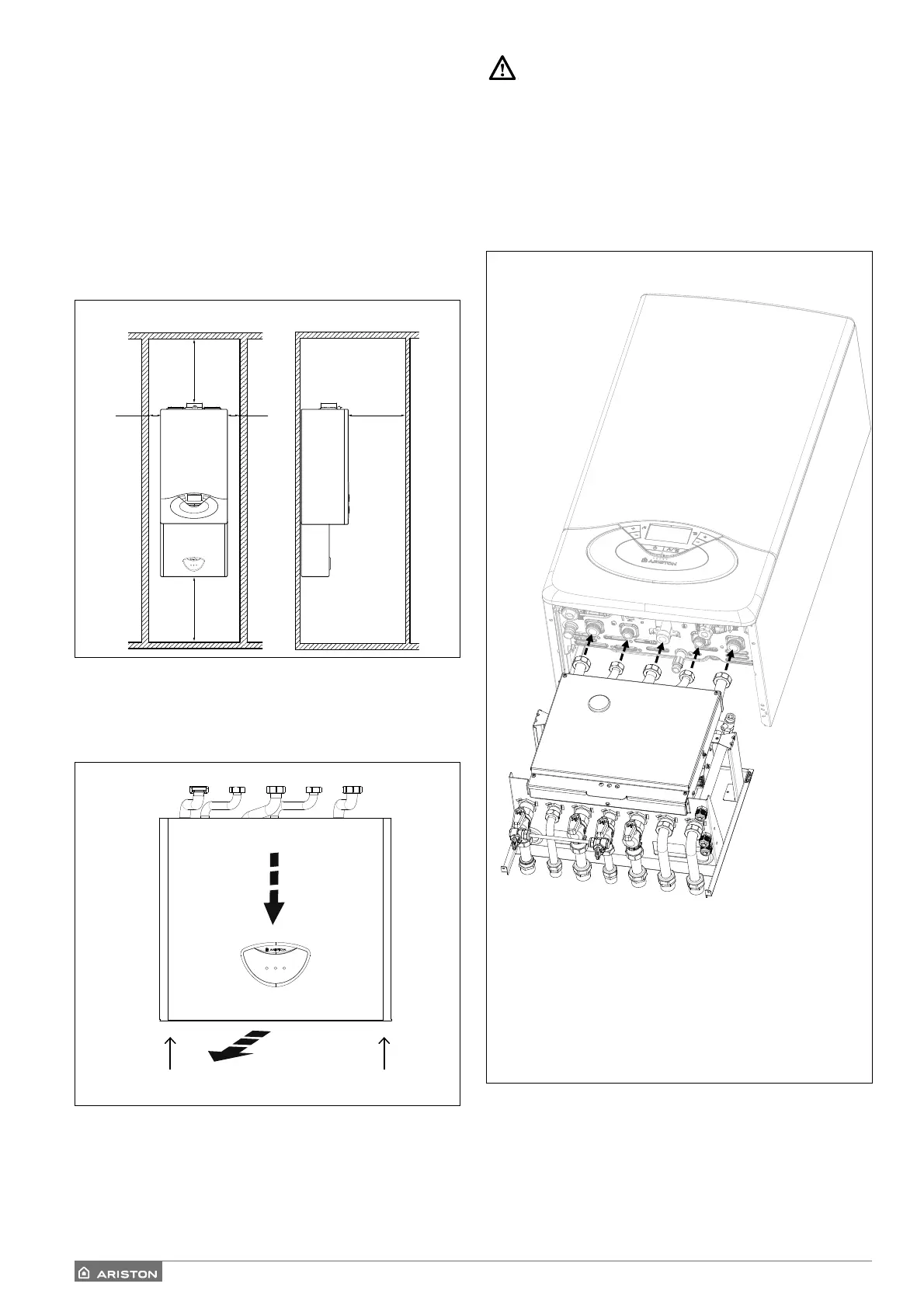

Minimum installation distances
To allow proper system maintenance, you must adhere to the mini-
mum installation distances shown in the fi gures below.
50 50 500
350 MIN350 MIN
1. Removing the front panel
Remove the two screws A, and push the front frame fi rst downwards,
and then forwards (fi g.2).
(Fig. 1)
(Fig. 2)
AA
