Armstrong 6100 - Repair Parts and Component Data

38

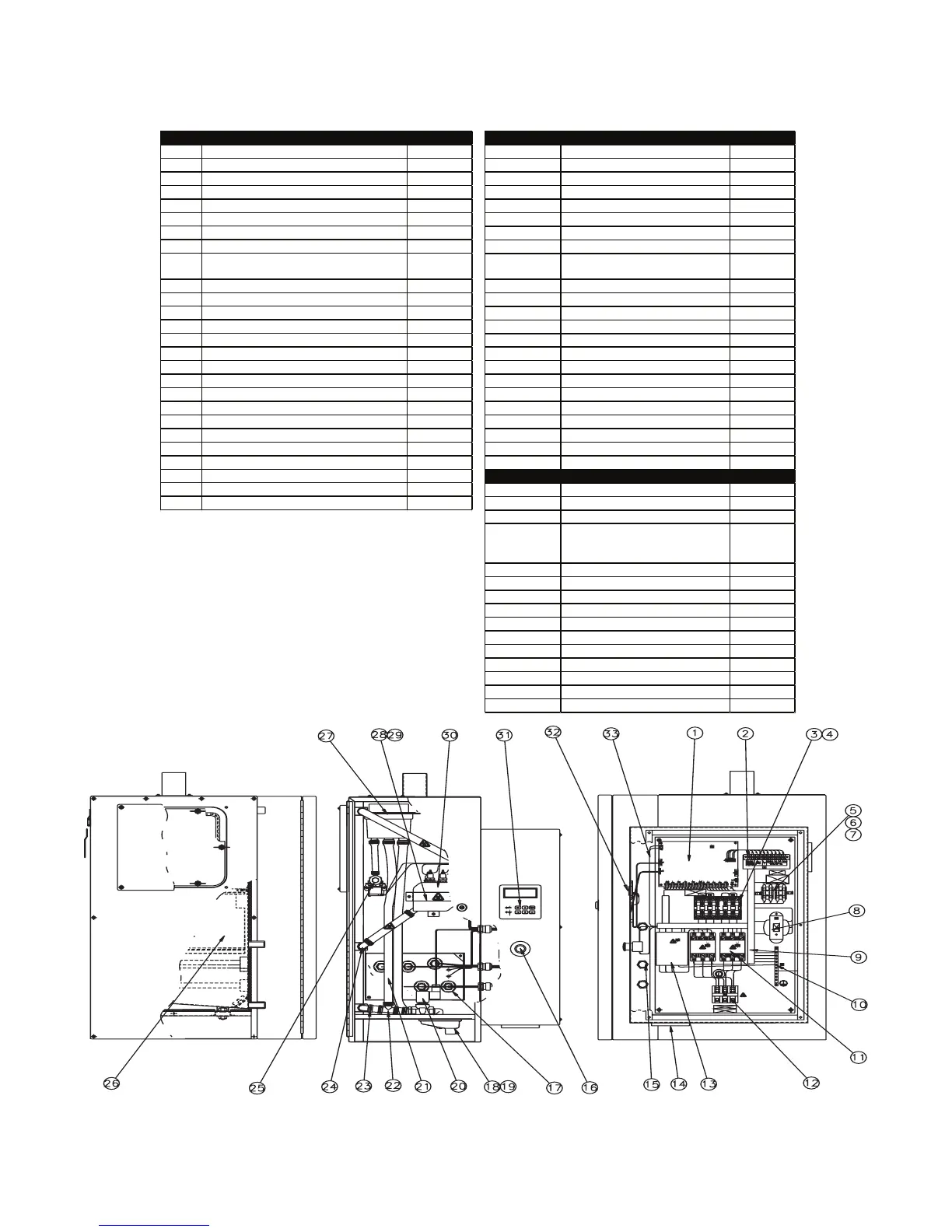

HC6100/6300 Repair Parts
Item No.
Water Compartment
Part No.
-
PVC Tubing 5/8”
A7618A
-
Clamp Hose Flat .63 Olive
B2716-11
-
Hose Clamp, Minerature, Worm
B2911-8
25
Kit Fill Valve Assy HC-6100 and
HC-6300 Tap Water
A23520
21
Tubing Rd 5/8” I.D. Silicon
A19699
22
Tee Barbed HDPE 5/8
A23237
24
Elbow Barbed 5/8
A10579
27
Fill Cup for Series HC-6000
RDHC6000-
001
27
Bracket For Fill Cup
B2929
28
Bracket for Liquid Level
B5135
28
Brkt HC-6000 Liquid Level
A22010
20
Drain Valve
B2004C
18
Drain Cup
D10862
17
Reducing Bushing Brass 1”-1/2”
D11443
30
Probe Level Assy Tap
C4561
29
Container For Probe Level
C4559
-
Long Probe For Water Level
(Low and Common)
B5268
-
Short Probe For Water Level (High)
B5269
-
Reducing Bushing For Water Level
A21391
-
Float Level Assy DI/RO
C4560
-
Float Switch DI/Ro
B5139
Item No.
Steam Generator
Part No.
1
SS Tank For HC-6100/6300
D10871
-
Thermistor 5 KOHM
With Wire (Aquastat)
D10870
25
S-assy Ionic Bed HC-6000
(six required for HC-6100 and HC-
6300)
B5213
-
Wing nut with washer
D14041
-
Tank Cover
D6477
-
Tank Gasket
D9111
-
Ionic Bed
B5213
-
Lock and two keys for cabinet
A10789
-
2-3/8” ID x12” EPDM hose cuff
B2851A
-
2” IDx12” EPDM hose cuff
B2851
-
1-1/2” IDx9-5/8” EPDM hose cuff
B2250
-
1” IDx18” EPDM hose cuff
A9620-1
-
Hardware Assembly Clamps/Screws
B5287
Item No.Electrical Compartment and Front Panel Part No.
31 Label Front Panel With Keypad D10876
16 Emergency Stop Button (2 N.O.
)D
10866
1 Main PCB For HC-6000 D8025
-Wire Harness For HC-6100 D10872
-Wire Harness For HC-6300 D10873
32a LCD Display For HC-6000 D8026
32b Display Driver Boar
dD
8024
14 Fan DC24 (Sanyo 9A0924H4D03) With 2 CoverD10869
12
Terminal Block #000 Wire B5607
11 Definite-Purpose Contactor 50AMP B2721
6Fuse 3AMP A10718
7Fuse 1A D11114
5Fuse Block 3AMP A8649
13 Module Power Din 9KW HC-600
0B
5091
13 Module Power Din 15KW HC-600
0B
5092
13 Module Power Din 9/15KW HC-6000 B5093
13 Module Power Din 15KW HC-600
0B
5151
8Trans Power 120/240-24
VC
1833
8Trans Power 600-24V C1833A
8Trans Power 480-24V C1833B
8Trans Power 208-24V C1833F
8Trans Power 380-24V C1833D
3Fuse Holder 30AMP HC-600
0B
4039
3Fuse Holder 30AMP 250V HC-6000 B7494
4Fuse 30AMP HC-6000 B4040
4Fuse 30AMP HC-6000 250V B7495
