ARRI ALEXA Mini Quick Guide

62 Assembly and retrofits
1
2

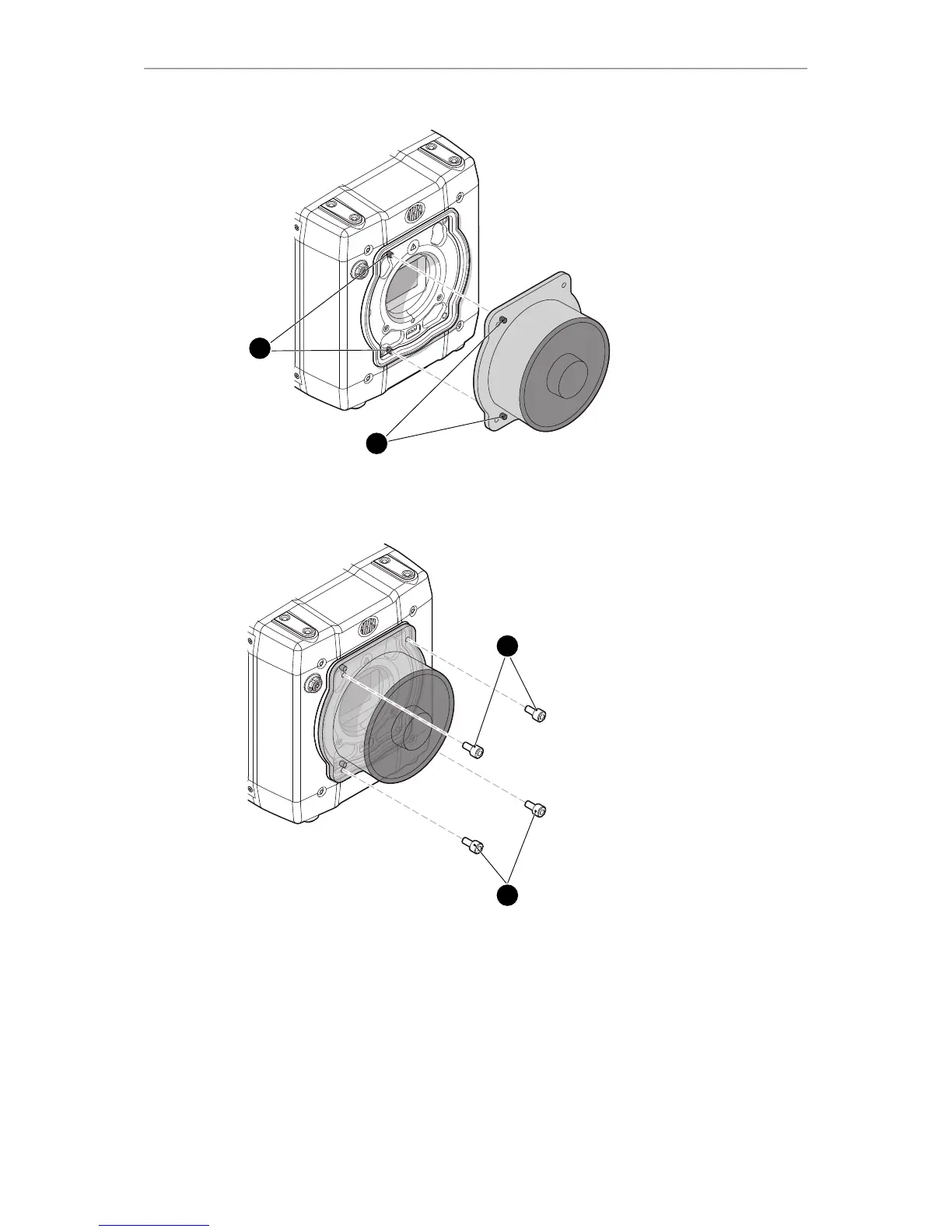

1. Properly align the two guiding pins (1) for correct lens mount fit (2).
Note: Never apply force, align the guiding pins instead.
1
1
2. Crosswise, hand-tighten all four screws (1).
3. Only then, tighten all screws crosswise with the Allen key.
Note: Always store the camera with a lens mount properly installed and capped.
14.5 CCP-1
The Camera Control Panel-1 (CCP-1) is a standalone control panel, containing the
display and a subset of buttons of the MVF-1. It shows the same images, and the
buttons mimic the behavior of the equivalent buttons of the MVF-1. It can be used as
the only control panel or with a MVF-1 daisy-chained to it.

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
