ARRI ALEXA Mini Quick Guide

Assembly and retrofits 65

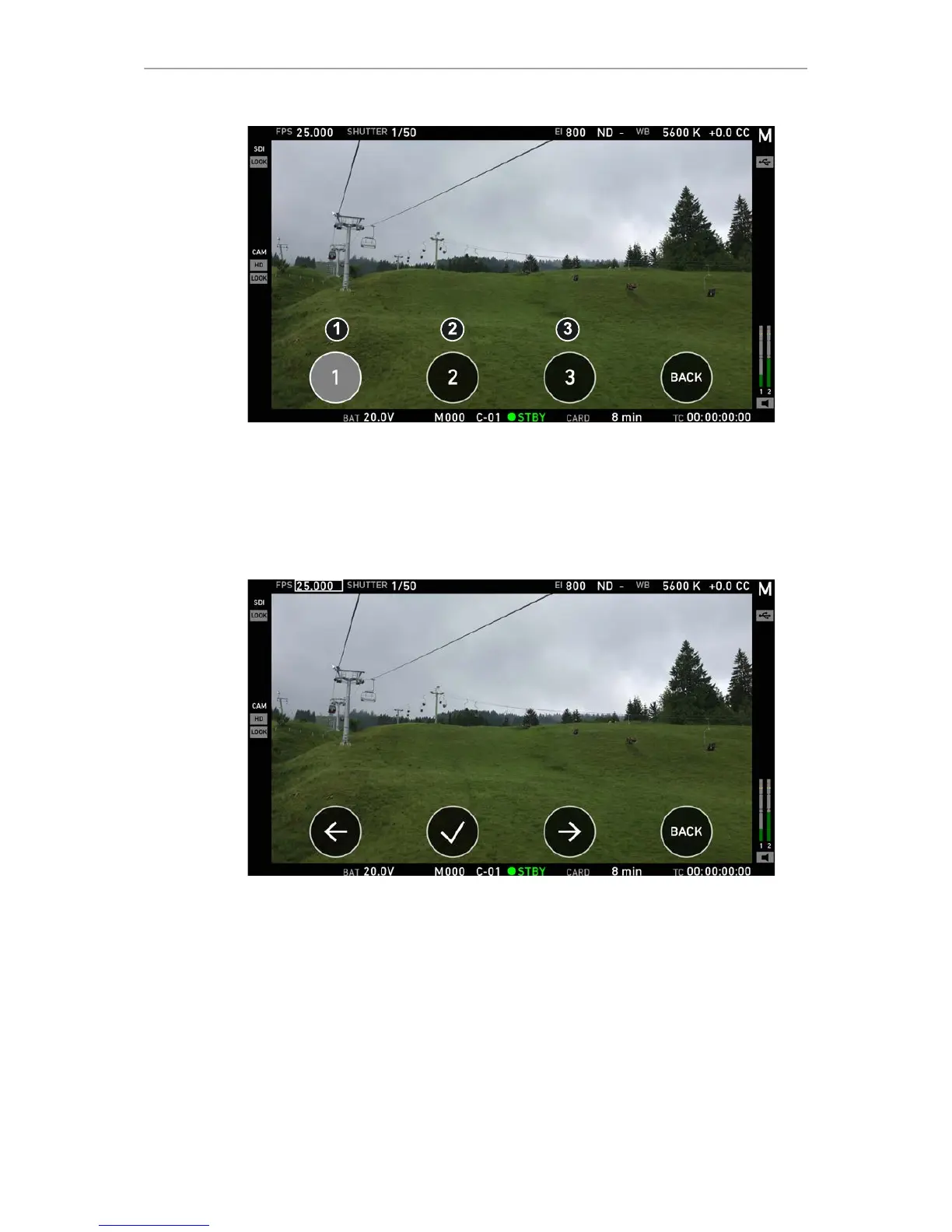

► The grey button indicates an active user function (e.g. (1)).
► Exit the user menu by pressing the "BACK" touch icon on the monitor.
Control menu
In the control menu, camera parameters can be edit similar to the overlay menu.
page 47
► Choose a parameter by pressing the touch icon (1) or (3) on the monitor.
► Select the parameter by pressing the touch icon (2) on the monitor.
The parameter can be edited.
► Exit the control menu by pressing the "BACK" (4) touch icon on the monitor.
Note: The control menu is not available during playback.
Playback menu
In the playback menu, recorded clips can be played or paused (2) and skipped to
previous (1) or next (3) clip.

ARRI ALEXA Mini Specifications

General

Sensor Type	ALEV III CMOS
Dynamic Range	14+ stops
Recording Formats	ARRIRAW, ProRes
Power Input	10.5-34 V DC
Base Sensitivity	EI 800
Lens Mount	PL mount
Weight	2.3 kg
ISO Range	160 to 3200
Frame Rates	0.75 - 200 fps (depending on recording format and sensor mode)
Dimensions	185 mm x 125 mm x 140 mm
Power Consumption	Approx. 50 W
Outputs	HD-SDI
Sensor Size	Super 35 format
