ALEXA Studio Images 183

15.1 ALEXA Studio Images

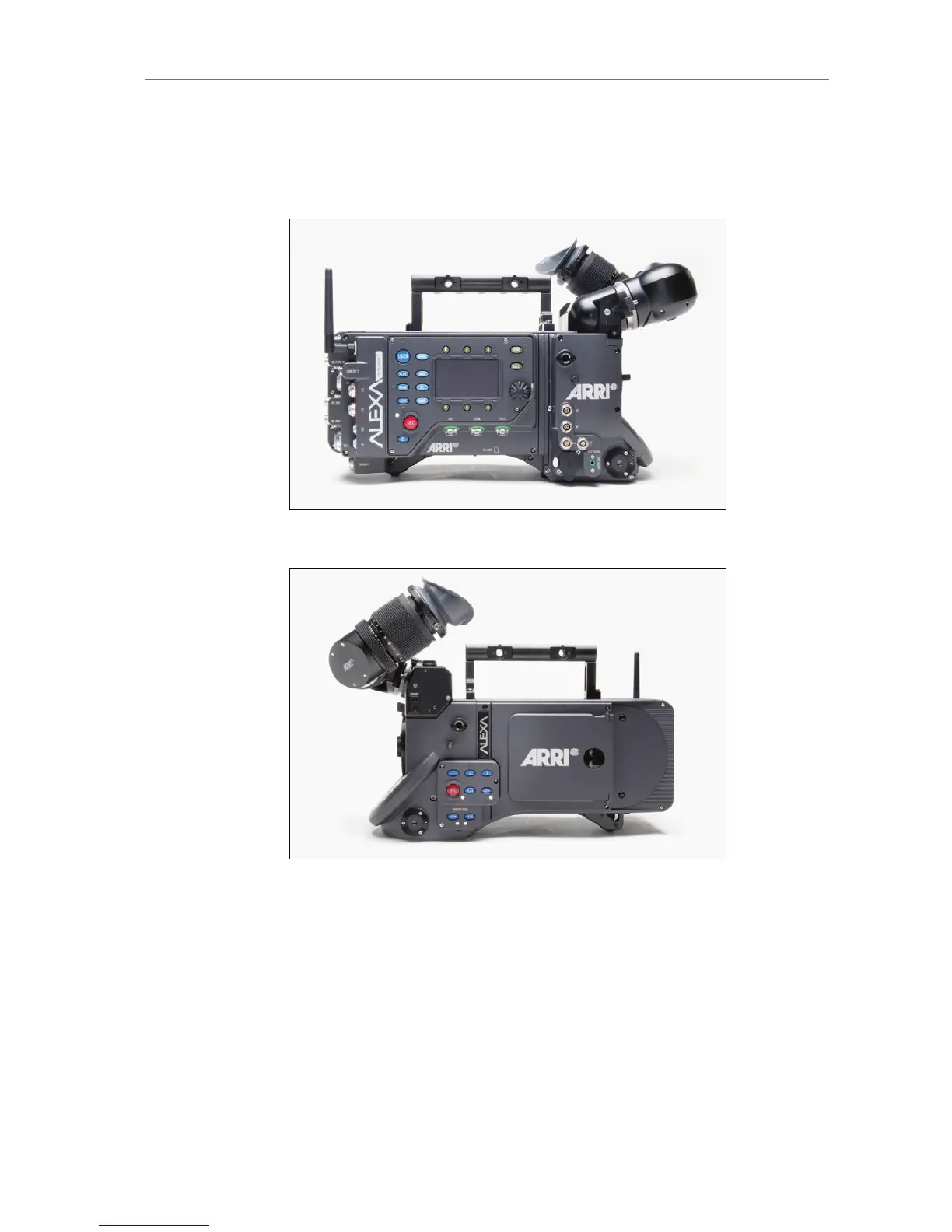

The following images show the ALEXA Studio with SxS module:

Figure 89: ALEXA Studio right

Figure 90: ALEXA Studio left
