ALEXA M Camera Head 211

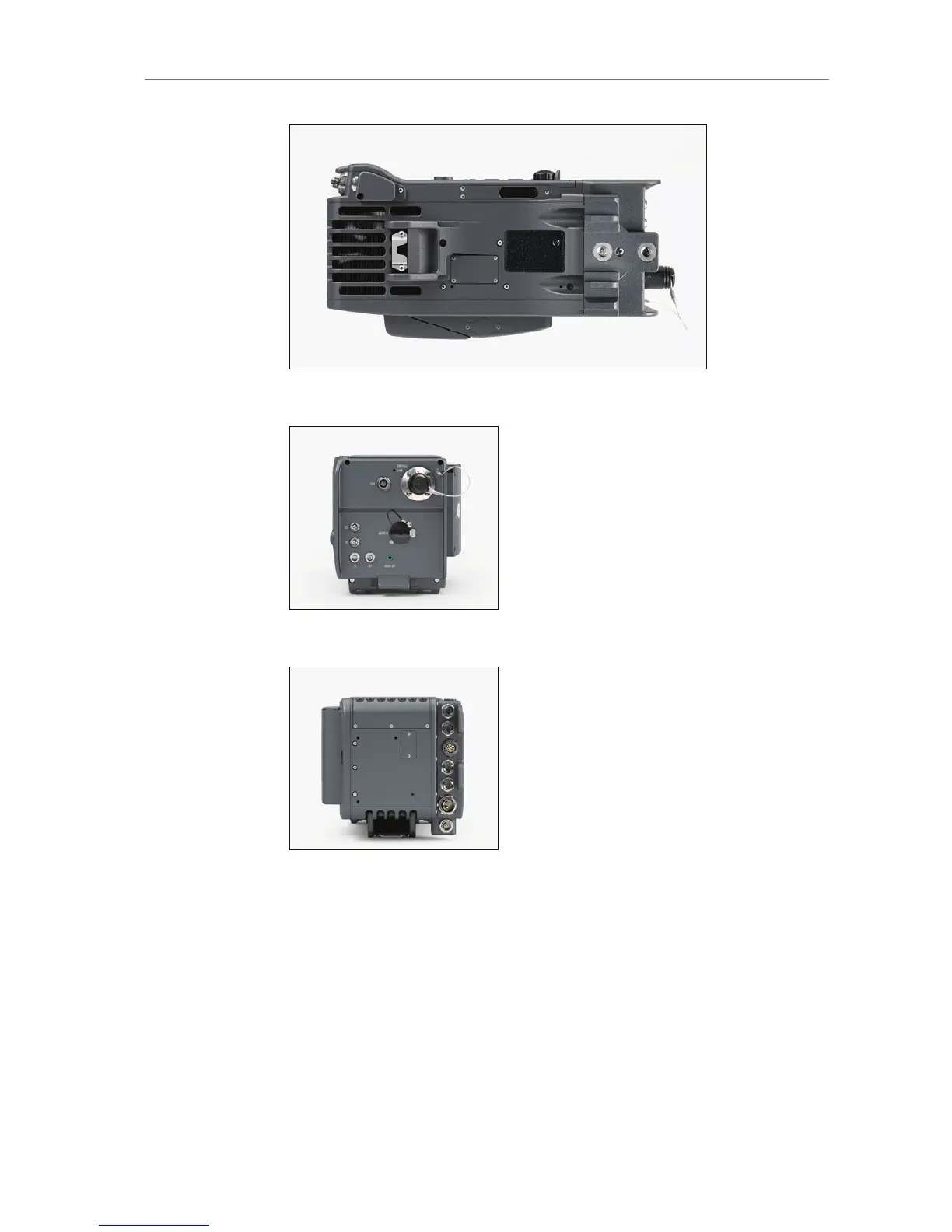

Figure 131: ALEXA M body bottom
Figure 132: ALEXA M body front
Figure 133: ALEXA M body back
16.2 ALEXA M Camera Head
The ALEXA M camera head contains the image sensor and parts of the
image processing. Images are transmitted to the body via fibre cable.
The fibre connection is bi-directional and returns the EVF image to the
camera head from the body.
