8.8 Wedge Adapter WA-1 and Quick-
Release Plate QR-HD-1
The WA-1 can be mounted at the same position as a bridge plate. It has
a dove tail that slides into the counter part of a quick-release plate, like
the ARRI QR-HD-1. The quick-release plate has a pin at its back, which
fits into the pin receptacle at the back of the camera base.

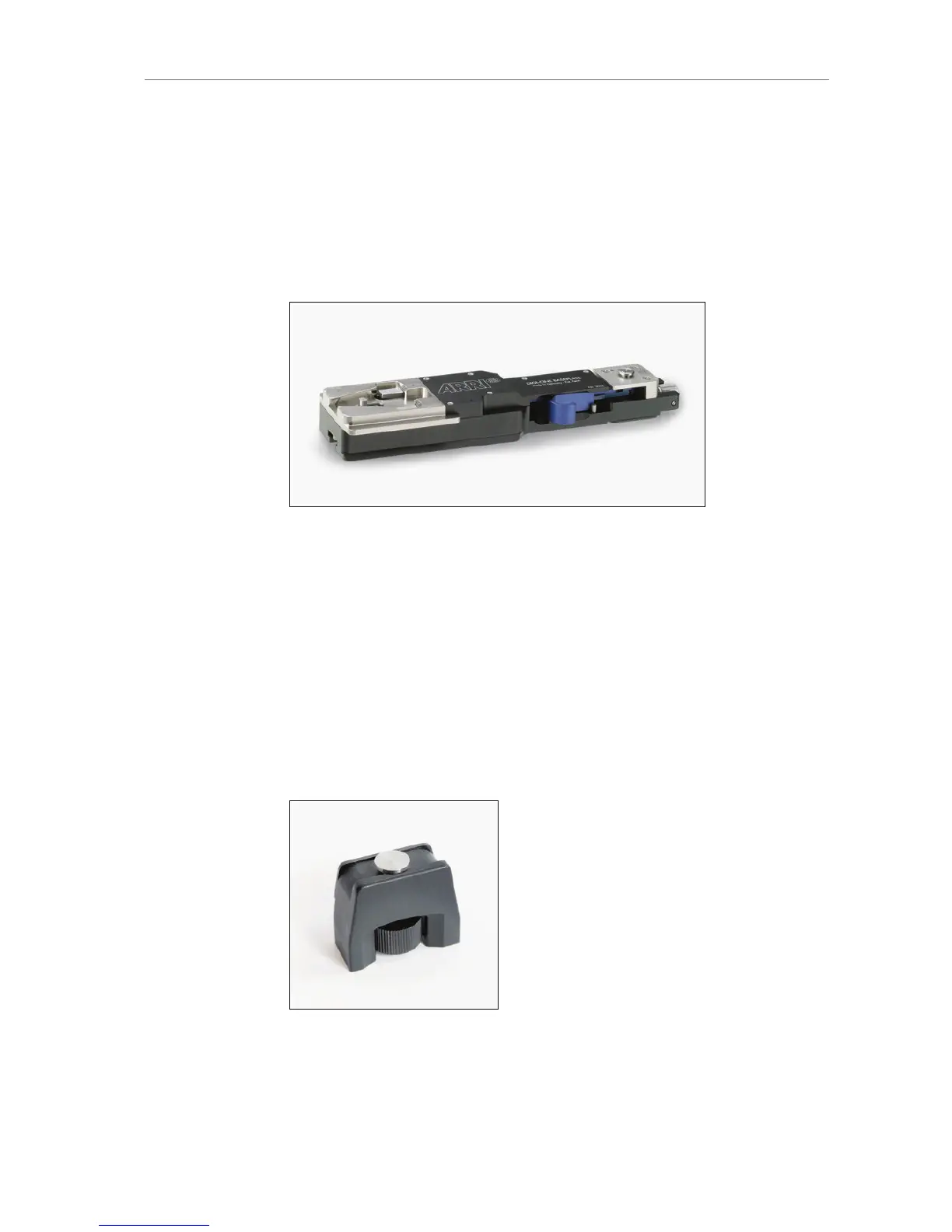

Figure 26: ARRI QR-HD-1
8.9 Leveling Block LB-1
The Leveling Block LB-1 attaches to the bottom of the ALEXA in the pin
receptacle on the back foot. It prevents the camera from resting on a
rear-mounted battery when a bridge plate is attached and the camera is
placed on a flat surface.
Attach the LB-1 by inserting its pin into the pin receptacle at the end of
the shoulder arc in the camera base. Twist the knob clockwise to
tighten.
Figure 27: Leveling Block LB-1
