About This Manual 23

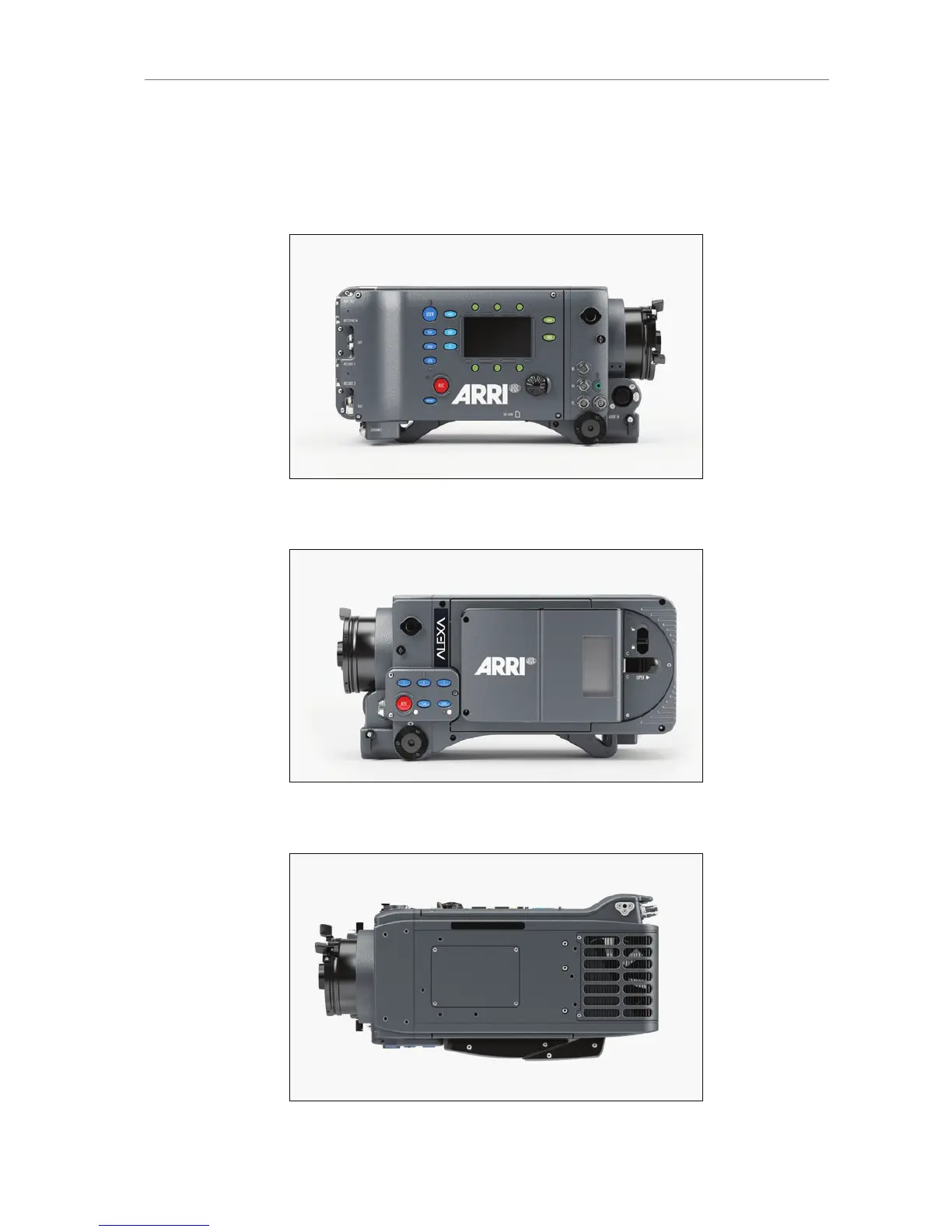

The following images show the ALEXA Classic upgraded with the XR

module:

Figure 7: ALEXA right

Figure 8: ALEXA left
