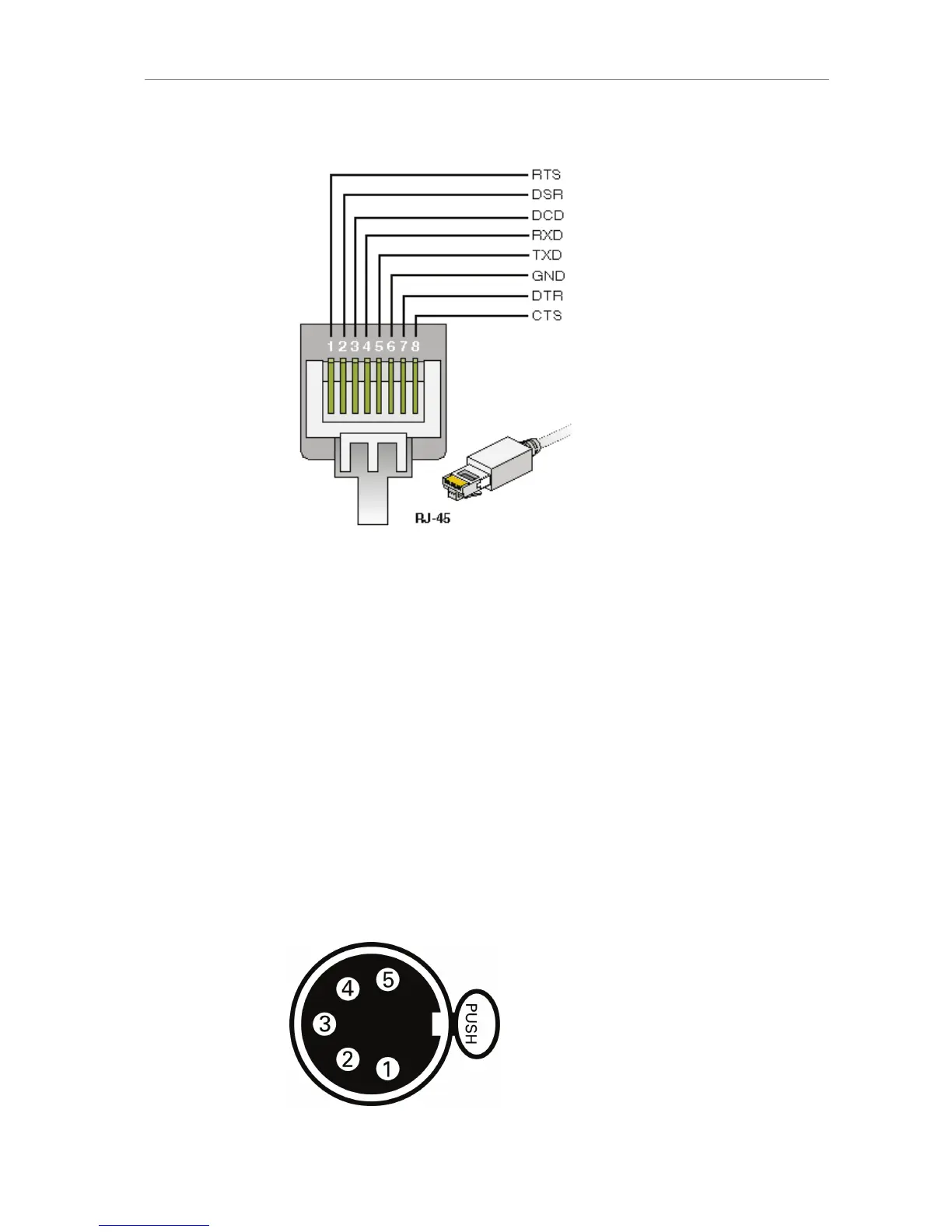

Connector Pin Outs Appendix 257

ETHERNET PC Side

RTS brown

DSR white-brown

DCD green

RXD white-blue

TXD blue

GND white-green

DTR orange

CTS white-orange

AUDIO IN
