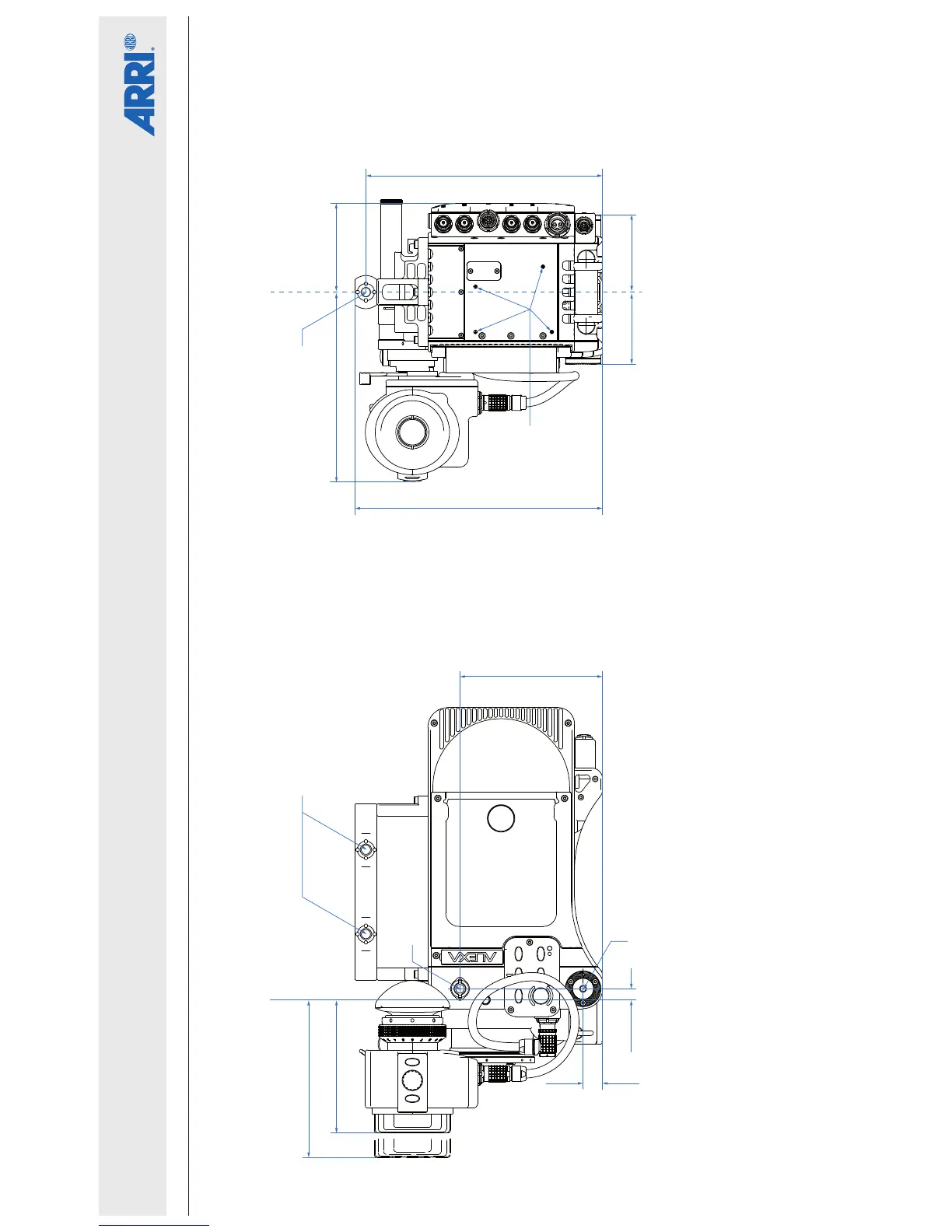

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA
Camera Left Image Plane
Camera Back Optical Center
224 mm
8.81”
128.8 mm
5.07”
17.6 mm
0.7”
10 mm
0.39”
213.8 mm
8.42”
80 mm
3.15”
171 mm
6.73”
142 mm max.
5.59”
120 mm
4.72”
64.9 mm
2.56”
69.9 mm
2.75”
M6 (3.5 mm deep)
M3 (6 mm deep)
UNC 3/8“–16 (10 mm deep)
UNC 3/8“–16 (10 mm deep)UNC 3/8“–16 (10 mm deep)
